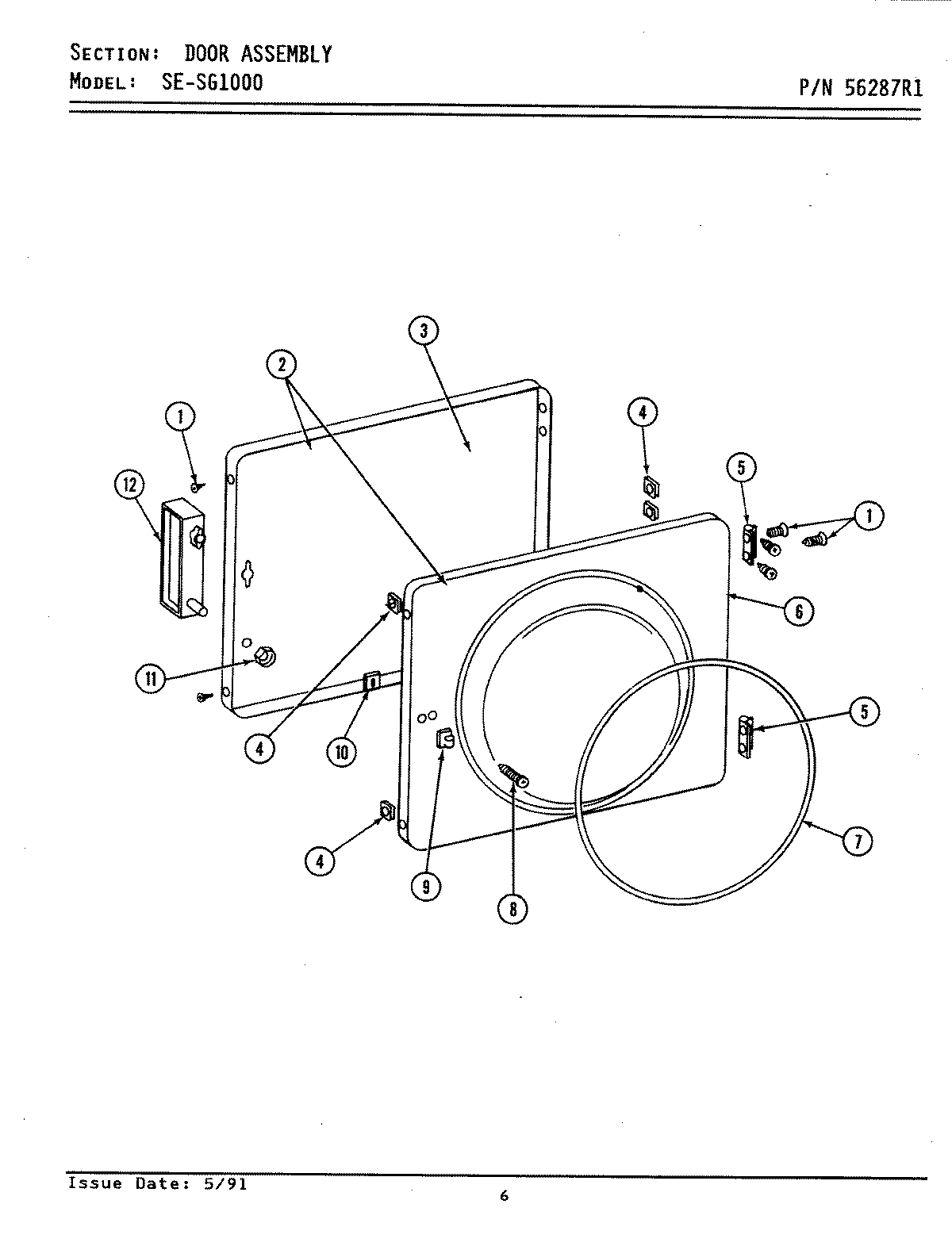

LSG1000 07 – DRYER DOOR ASSEMBLY

Written by

Products

Position	Product
2	MAY 306669L
3	MAY 314475L
4	CLIP, DOOR LINER
5	MAY Y304577
6	MAY 306676
7	MAY 314077
8	SCREW
9	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
10	MAY Y313911
11	MAY 214872
12	MAY 314476
