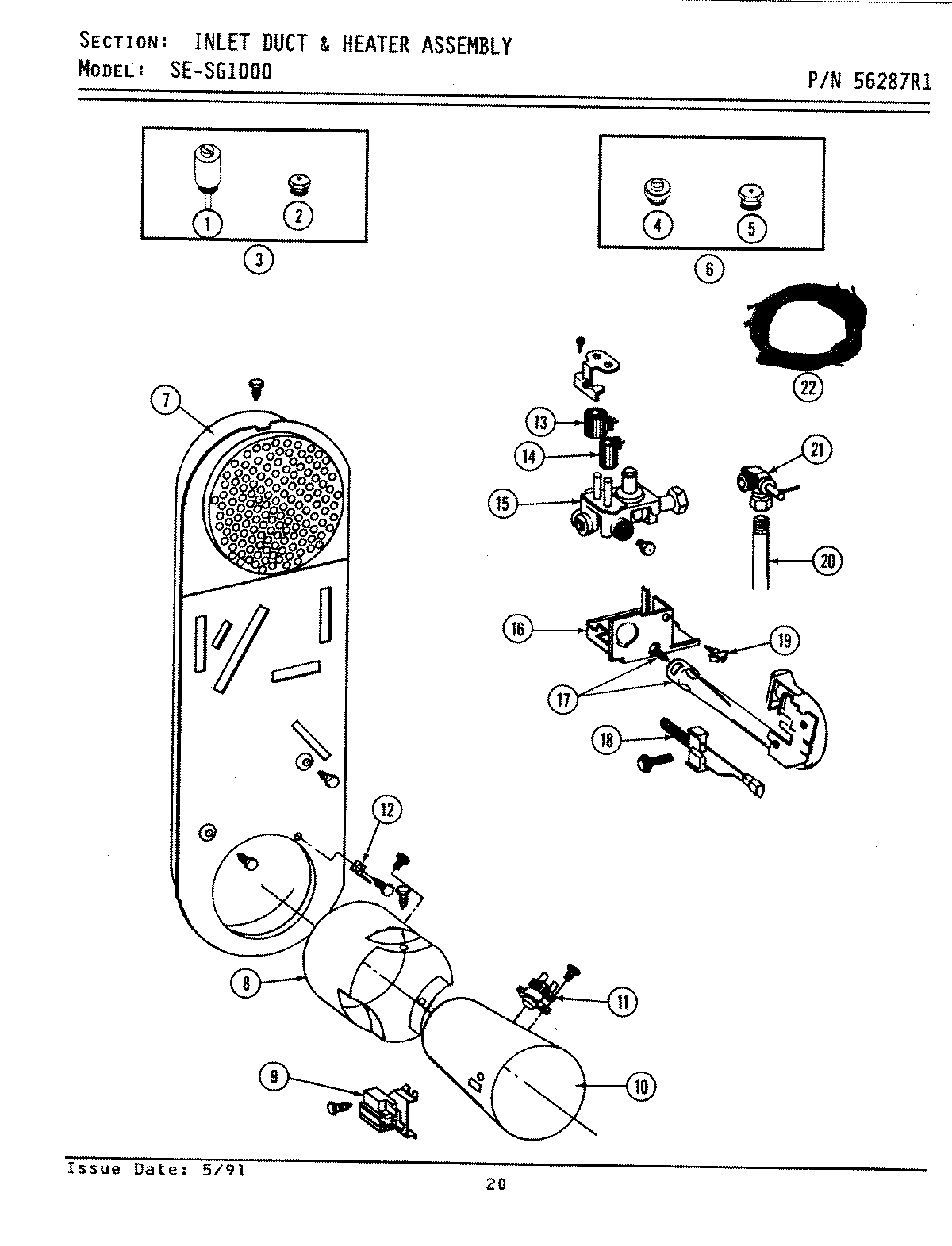

LSG1000 11 – INLET DUCT & HEATER ASSEMBLY (SG1000)

Products

Position	Product
1	MAY 306184
2	MAY 311640
3	MAY 306205
4	WP694424 Whirlpool Limiter
5	MAY 314603
6	MAY 306206
7	MAY Y303369
8	MAY 314509
9	WP338906 Whirlpool Dryer Gas Sensor
10	MAY Y303368
11	WP303395 Whirlpool Thermostat
12	MAY Y312890
12	WP90767 Whirlpool Screw
14	279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15	MAY 306084
15	MAY 314082
16	MAY 314508
17	WP3177991 Whirlpool Screw
17	MAY 306162
18	4391996 Whirlpool Dryer Flat Igniter
18	MAY 304971
19	MAY Y313262
20	MAY 310454
21	MAY 306086
22	MAY 306090
