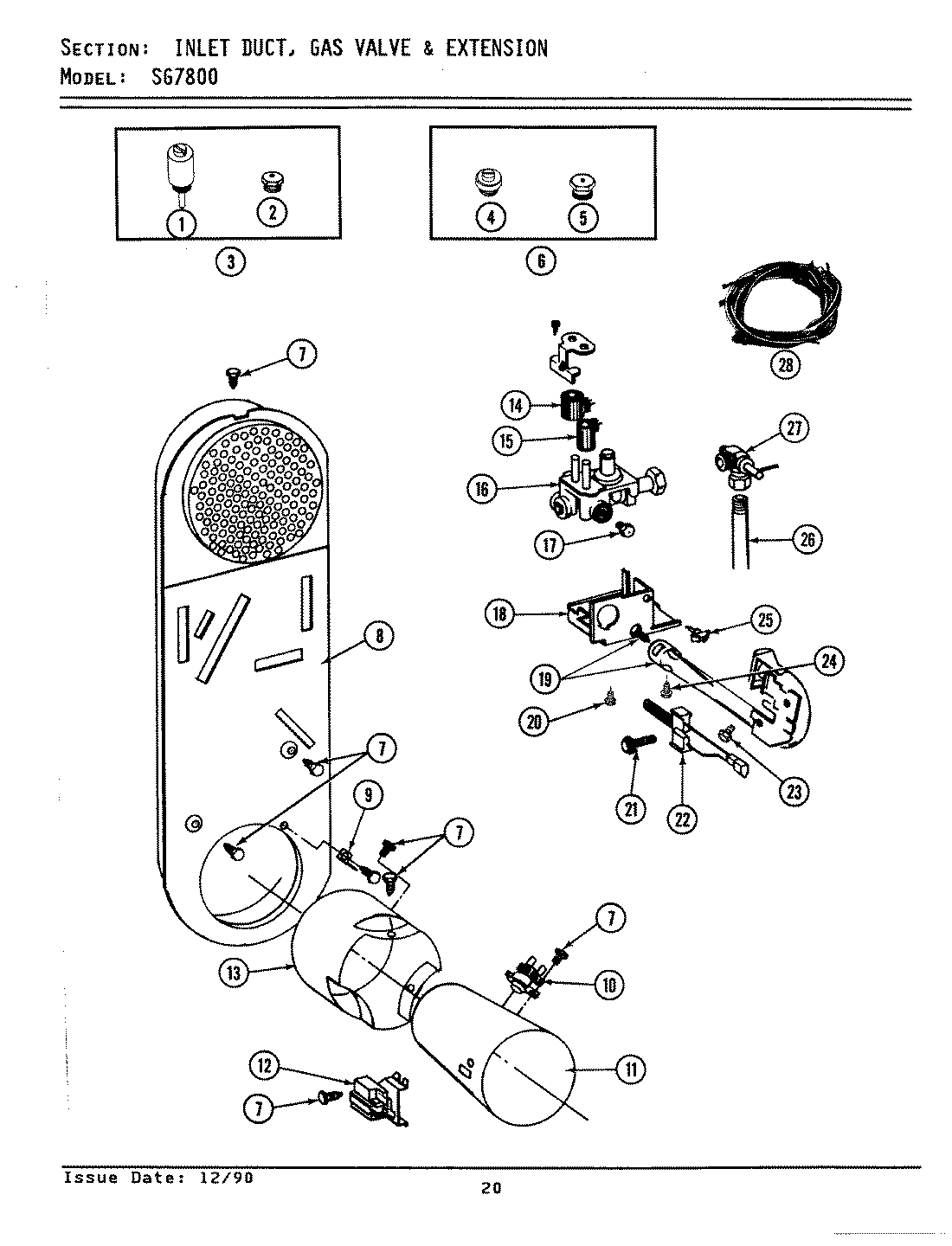

LSG7800 09 – INLET DUCT, GAS VALVE & EXT. (SG7800)

Products

Position	Product
1	MAY 306184
3	MAY 306205
4	WP694424 Whirlpool Limiter
6	MAY 306206
7	WP90767 Whirlpool Screw
8	MAY Y303369
9	MAY Y312890
10	WP303395 Whirlpool Thermostat
11	MAY Y303368
12	WP338906 Whirlpool Dryer Gas Sensor
13	MAY 314509
15	279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
16	MAY 306084
17	MAY 314603
17	MAY 311640
17	ORIFICE FOR MAIN BURNER
18	MAY 314508
19	MAY 306162
20	MAY 314568
22	MAY 304971
23	MAY 212276
24	MAY 314082
25	MAY Y313262
26	MAY 310454
27	MAY 306086
28	MAY 306090
