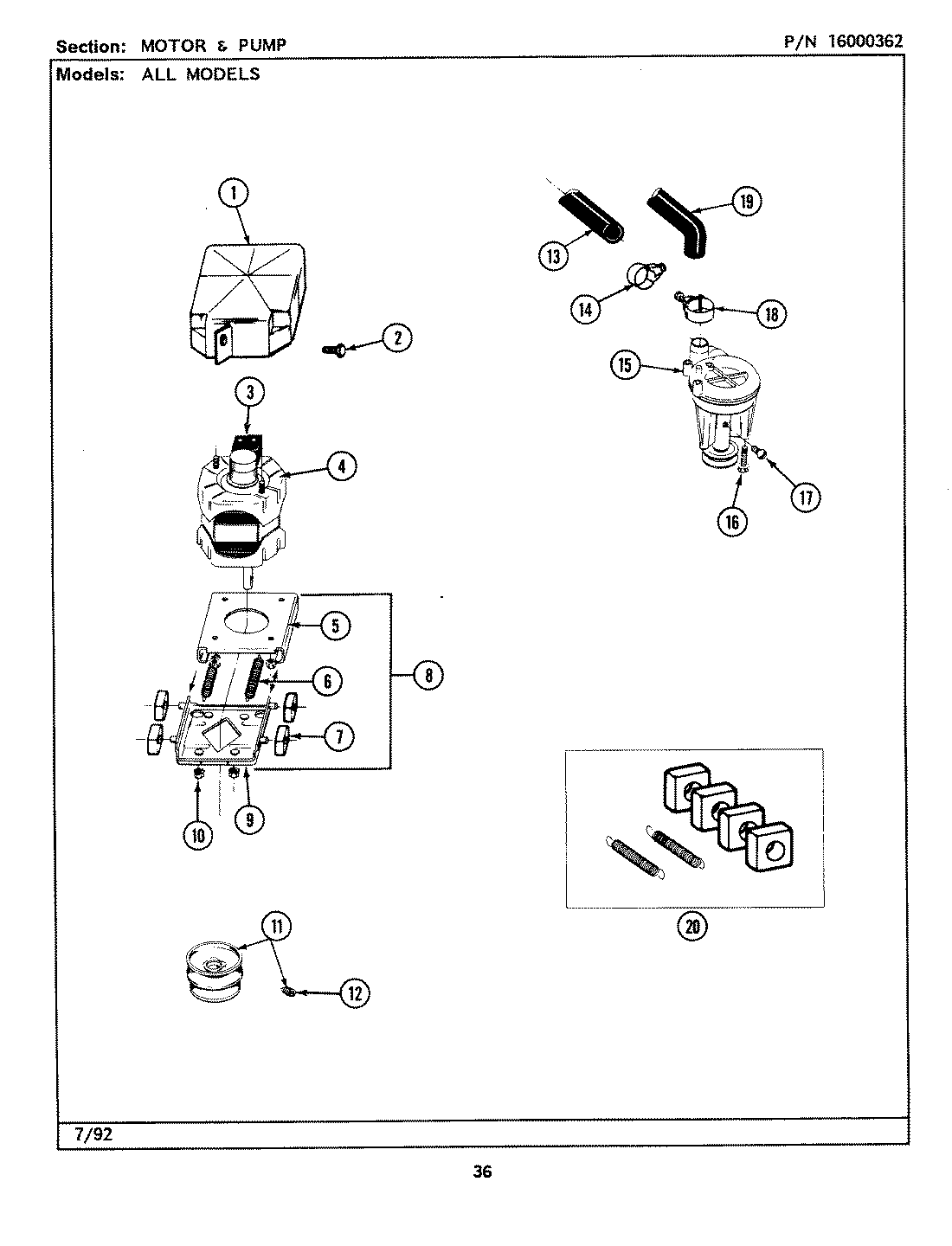

LSG7800AAE 12 – MOTOR & PUMP (LSG7800AAE)

Products

Position	Product
1	MAY 215098
2	WPW10346892 Whirlpool Screw
3	2-1664-11 AND 2-5463-1
3	SWITCH, MOTOR START PROD. NO. 2-1664-4, 2-1664-9, 2-1664-10
3	2-1664-8 AND 2-5463
4	12002351 Whirlpool Washer Drive Motor and Jumper Kit 1 Speed 1/2 HP
5	MAY 214956
6	202718 Whirlpool Tension Spring
7	205000 Whirlpool Motor Spring and Guide Kit
9	MAY 205908
10	WP3400029 Whirlpool Dishwasher Nut
11	MAY 200816
12	MAY Y053241
13	WP22001448 Whirlpool Drain Pump Hose
14	MAY 200461
15	MAY 202203
16	WPY014874 Whirlpool Screw
17	MAY Y015408
18	WP285655 Whirlpool Hose Clamp
19	WP213045 Whirlpool Dishwasher Tub to Pump Hose
