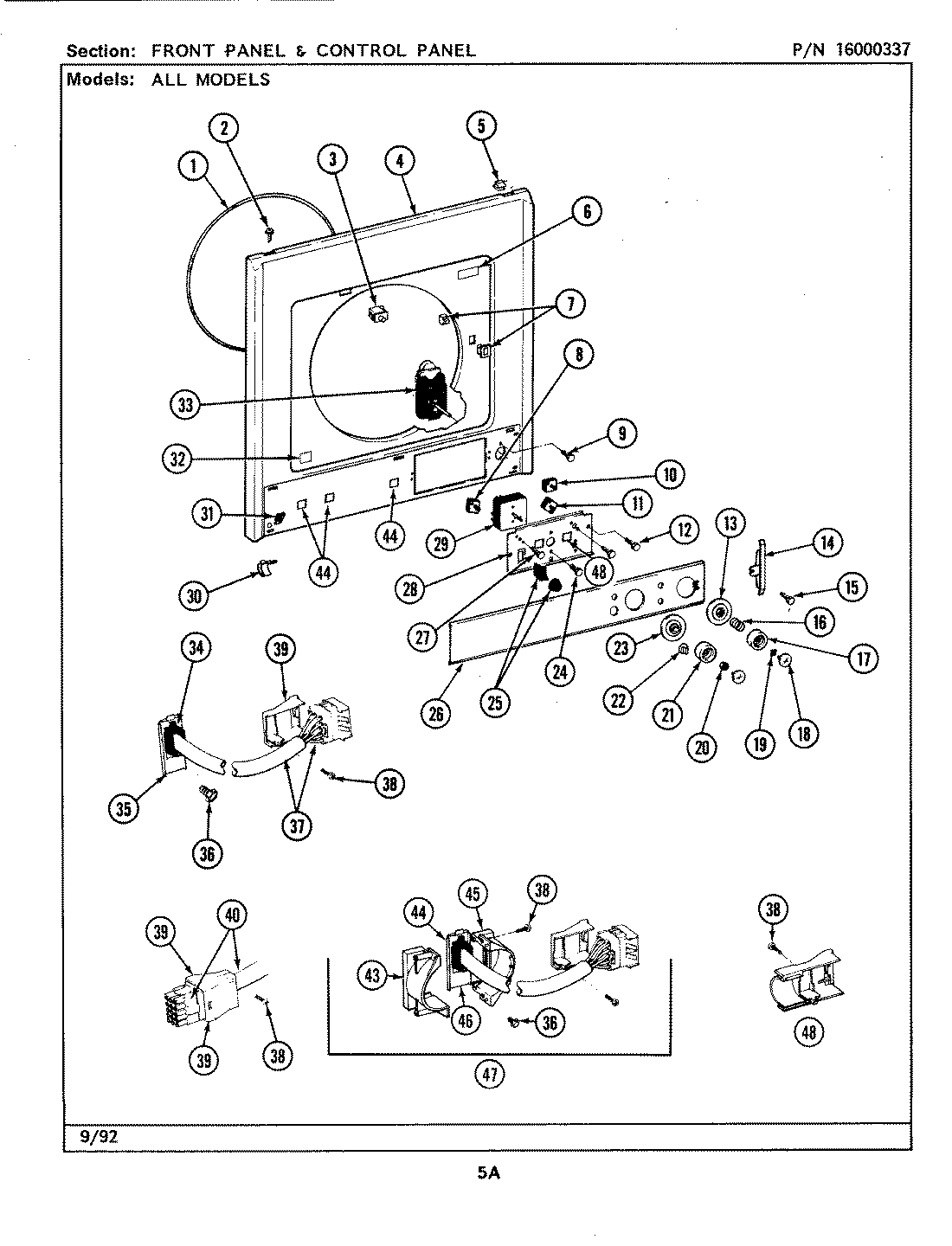

LSG7800AAL 09 – FRONT PANEL & CONTROL PANEL

Products

Position	Product
2	WP1163283 Whirlpool Air Conditioner Screw
3	W10169313 Whirlpool Door Switch Kit
4	MAY 315261L
5	MAY Y310376
6	MAY Y313927
7	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
8	MAY 308017
9	WP3400014 Whirlpool Dishwasher Screw
10	MAY 207782
11	MAY 207800
12	WP90767 Whirlpool Screw
13	MAY 207794
14	END CAP,CONTROL PANEL (BLK)
15	WP8281227 Whirlpool Screw
16	WP211065 Whirlpool Timer Spring
17	MAY 215828
18	MAY 215821
19	MAY 211605
20	W10155650 Whirlpool Nut
21	MAY 315041
22	MAY 308035
23	MAY 308032
24	MAY 315317
26	CONTROL PANEL
27	MAY 215952
28	MAY 315237
29	MAY Y308022
29	MAY Y308252
30	MAY 314482
31	MAY 314748
32	MAY 314486
33	MAY 207783
34	MAY 215948
36	WPW10139210 Whirlpool Screw
37	MAY 207946
37	MAY 308019
38	MAY 215953
39	MAY 215960
40	MAY 207784
40	MAY 208213
41	MAY 315286
45	MAY Y216006
46	MAY 216008
49	MAY 315287
