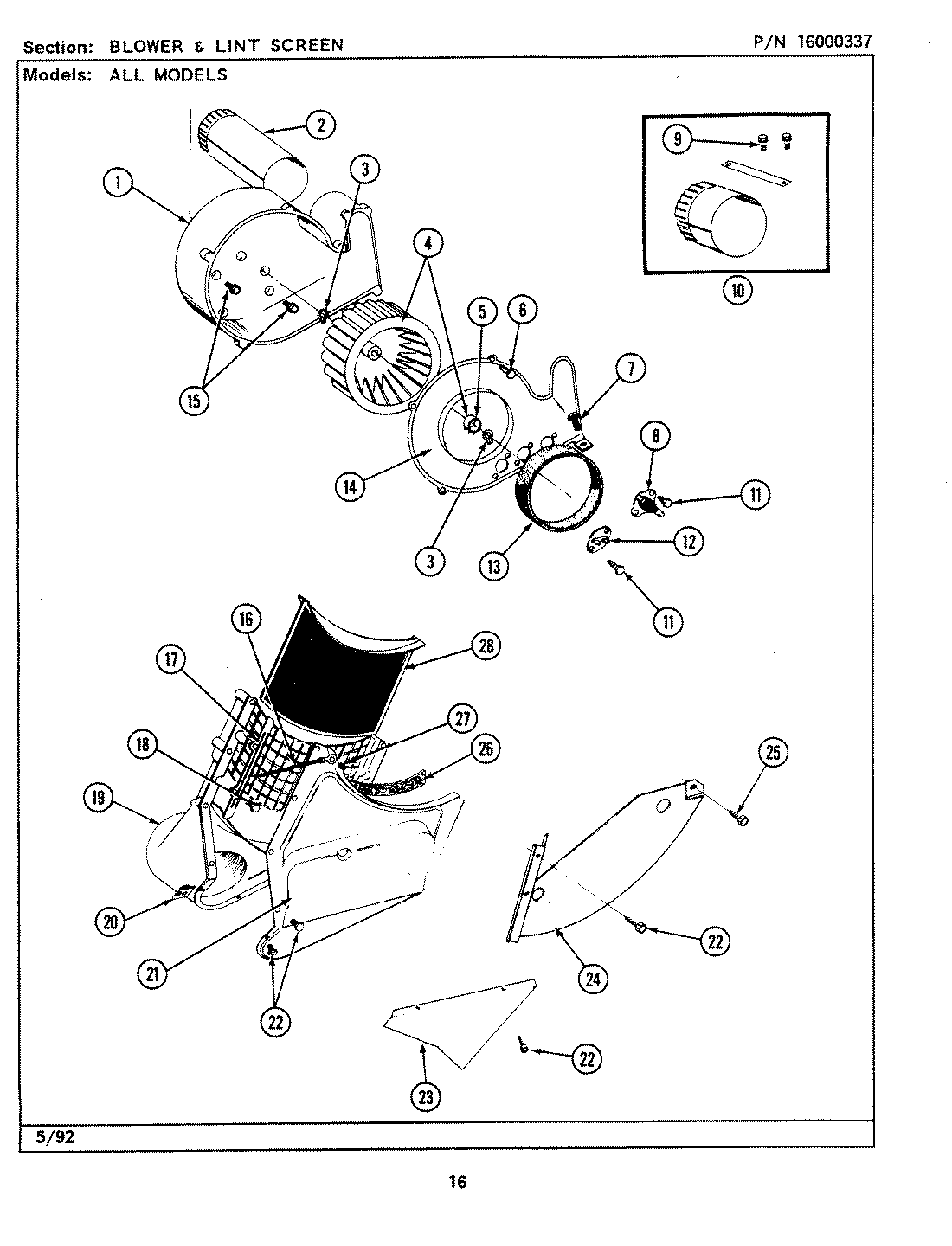

LSG7800AAW 03 – BLOWER & LINT SCREEN

Products

Position	Product
1	MAY Y312893
2	MAY 306637
3	WP9703438 Whirlpool Snap Retaining Ring
4	Y303836 Whirlpool Dryer Blower Wheel
5	WP312967 Whirlpool Clamp
7	MAY Y313561
8	MAY Y308036
10	8544761A Whirlpool Exhaust Extension
11	WP90767 Whirlpool Screw
12	WP306604 Whirlpool Cut-off
13	WPY312901 Whirlpool Blow Seal
14	MAY 314846
15	MAY Y310632
16	MAY 901220
17	MAY Y313795
19	MAY 314801
20	MAY 315274
21	MAY 314485
23	MAY 315239
24	MAY 315238
25	MAY 310207
26	MAY Y313796
27	WPW10116751 Whirlpool Screw
27	MAY 310557
28	MAY Y306666
