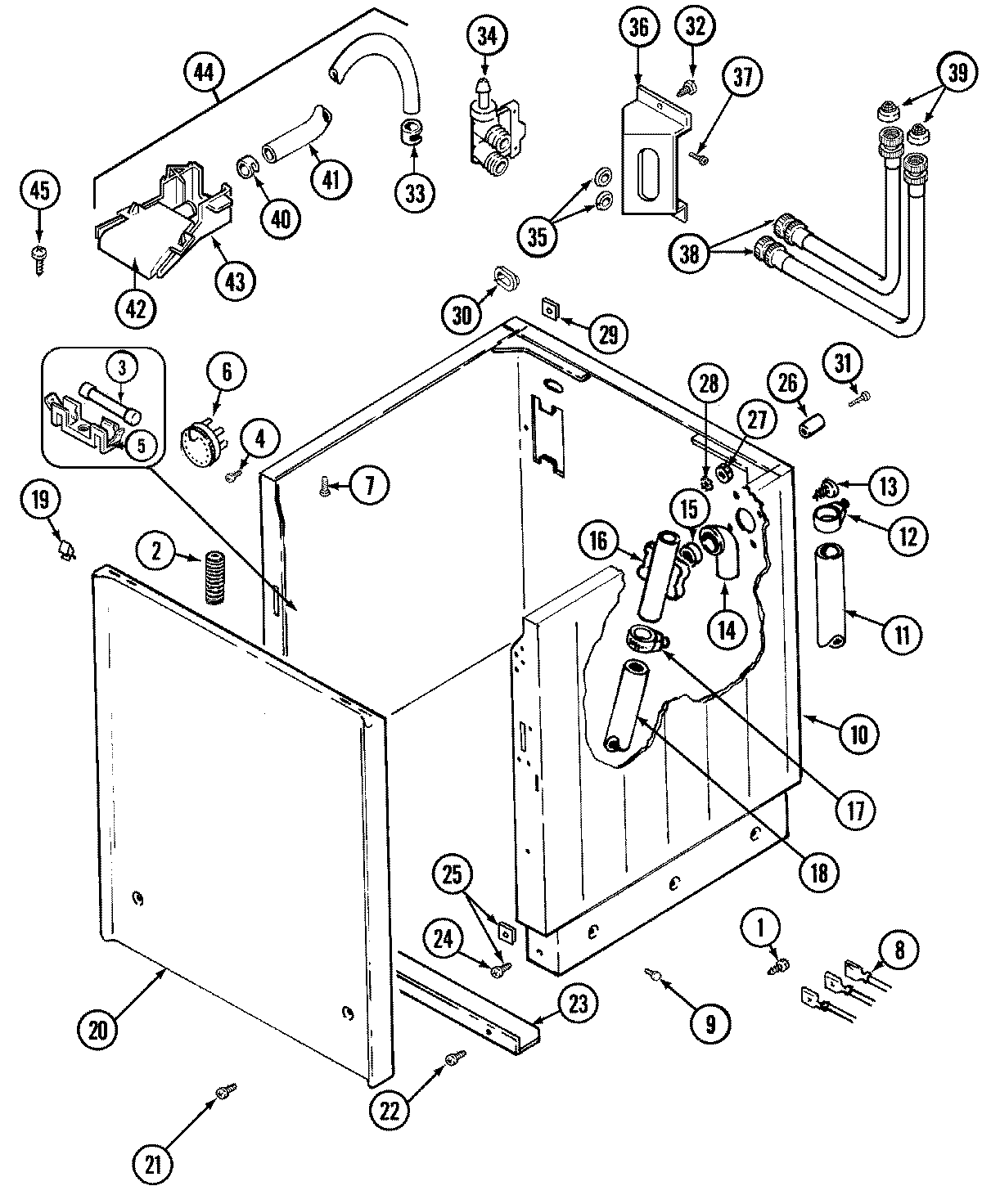

| 1 | WP3177991 Whirlpool Screw |
| 2 | MAY Y200832 |
| 2 | MAY 211149 |
| 3 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 4 | WP210720 Whirlpool Rivet |
| 5 | MAY 207167 |
| 6 | MAY 22004231 |
| 6 | MAY 208783 |
| 6 | MAY 207787 |
| 7 | MAY 214354 |
| 8 | MAY 22001429 |
| 8 | MAY 208774 |
| 9 | 213007 Whirlpool Screw #12 |
| 10 | MAY 22001065 |
| 11 | MAY Y059149 |
| 11 | MAY 216017 |
| 12 | MAY 200908 |
| 13 | WPY014874 Whirlpool Screw |
| 14 | WPW10116738 Whirlpool Elbow Connector |
| 15 | WP214765 Whirlpool Gasket |
| 16 | 206638 Whirlpool Break Siphon Connector Kit |
| 17 | WP285655 Whirlpool Hose Clamp |
| 18 | WP22001448 Whirlpool Drain Pump Hose |
| 19 | MAY 215711 |
| 20 | MAY 207205 |
| 21 | MAY 22001898 |
| 21 | WP22001496 Whirlpool Screw |
| 22 | WP90767 Whirlpool Screw |
| 23 | MAY 213846 |
| 24 | WP27001200 Whirlpool Screw |
| 25 | SCREW & FSTNER ASSY (FT. PNL) |
| 26 | MAY 215276 |
| 27 | MAY 310557 |
| 28 | MAY Y052659 |
| 29 | MAY 22001009 |
| 30 | MAY 215950 |
| 31 | MAY 215277 |
| 32 | MAY 212276 |
| 33 | WP596669 Whirlpool Hose Clamp |
| 34 | WP22001274 Whirlpool Water Valve |
| 35 | MAY Y013783 |
| 36 | MAY 215264 |
| 37 | MAY Y313561 |
| 38 | WP76314 Whirlpool Fill Hose |
| 39 | MAY 200961 |
| 40 | MAY 216170 |
| 41 | MAY 22001191 |
| 42 | MAY 22001187 |
| 43 | WP22001186 Whirlpool Injector |
| 44 | MAY 22001175 |
| 45 | MAY 215537 |
| 46 | MAY 22001192 |
