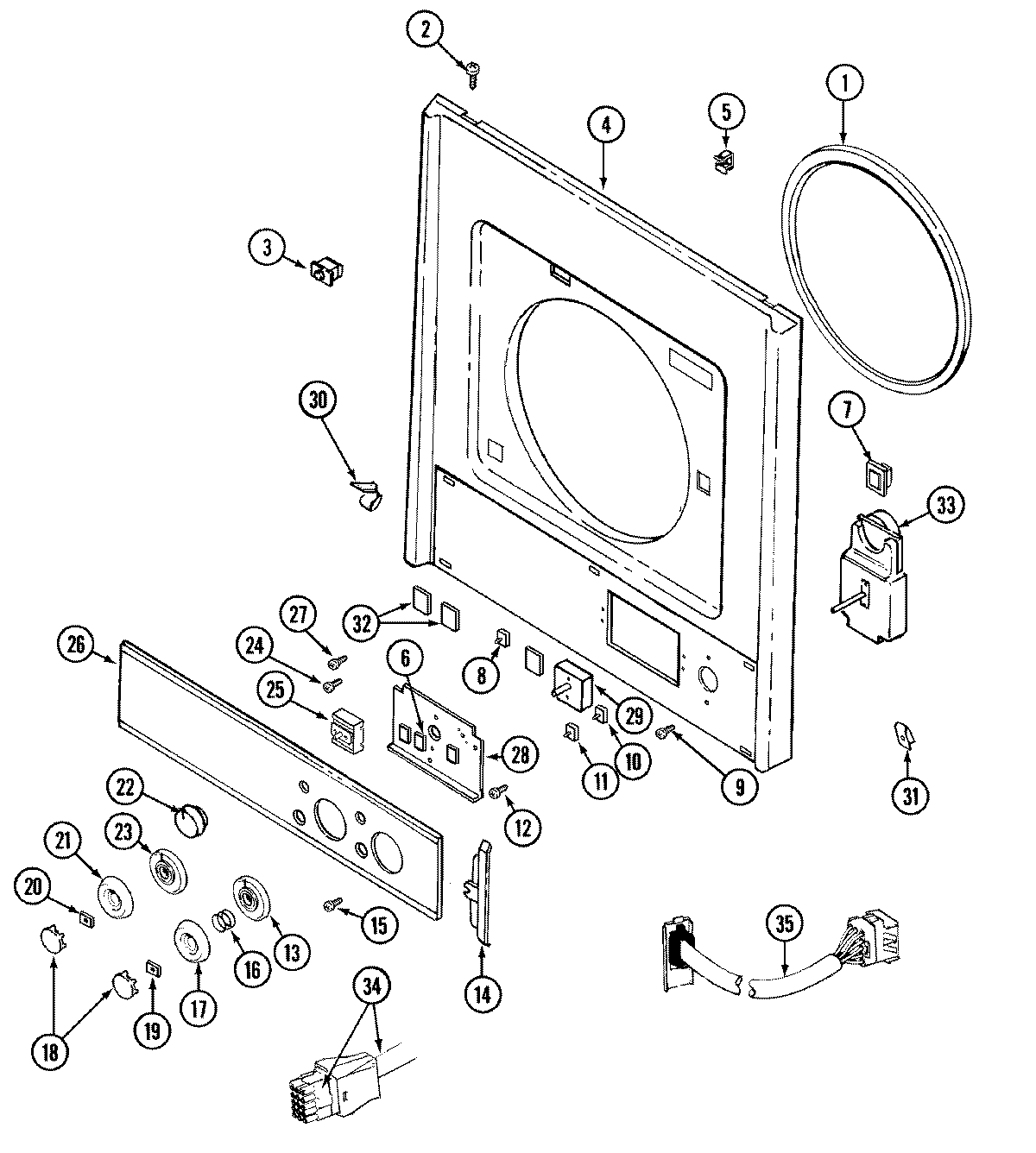

LSG7804AAE 08 – FRONT PANEL & CONTROL PANEL

Products

Position	Product
2	WP1163283 Whirlpool Air Conditioner Screw
3	W10169313 Whirlpool Door Switch Kit
4	MAY 33001191
4	WP98008544 Whirlpool Screw Assembly
5	MAY Y310376
6	MAY 315287
7	MAY Y304578
8	MAY 308017
9	MAY 216042
10	MAY 207782
11	MAY 22001188
12	WP90767 Whirlpool Screw
13	MAY 22001035
14	END CAP,CONTROL PANEL (WHT)
15	WP8281227 Whirlpool Screw
16	WP211065 Whirlpool Timer Spring
17	MAY 22001198
18	MAY 216250
19	MAY 211605
20	W10155650 Whirlpool Nut
21	MAY 33001255
22	MAY Y308453
23	MAY 33001010
24	MAY 315317
25	MAY Y308449
26	MAY 33001007
27	MAY 215952
28	MAY 315237
29	WP33001034 Whirlpool Dryer Timer
30	MAY 314482
31	488660 Whirlpool Refrigerator Nut
32	MAY 315286
33	MAY 22001180
34	MAY 22001429
34	MAY 208774
35	MAY 208776
35	MAY 22001585
35	MAY 22001432
36	MAY 22004233
36	MAY 33001043
36	MAY 33001369
36	MAY 33001554
