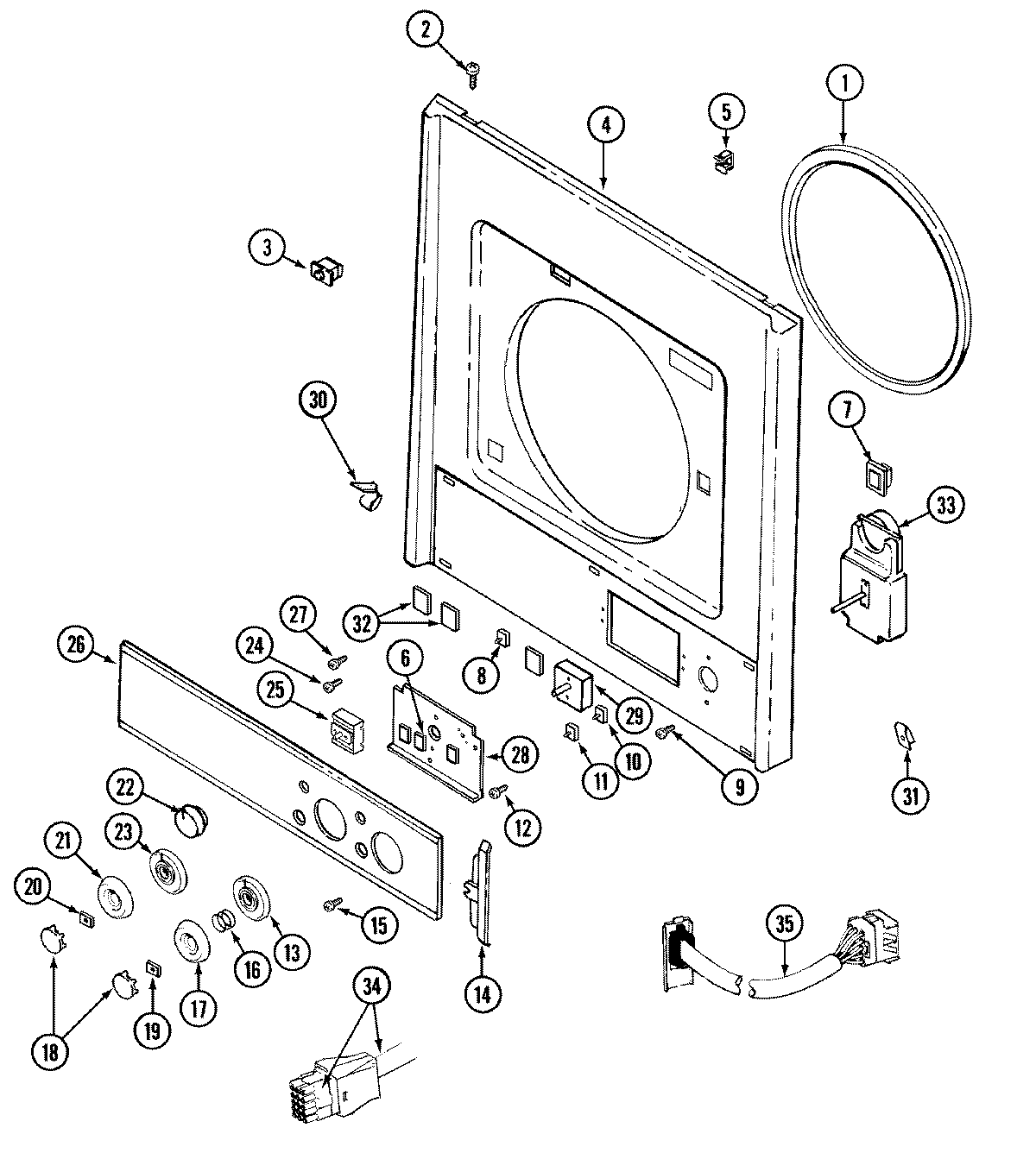

LSG7804AAL 08 – FRONT PANEL & CONTROL PANEL

Products

Position	Product
2	WP1163283 Whirlpool Air Conditioner Screw
3	W10169313 Whirlpool Door Switch Kit
4	MAY 33001190
4	WP98008544 Whirlpool Screw Assembly
5	MAY Y310376
6	MAY 315287
7	MAY Y304578
8	MAY 308017
9	MAY 216042
10	MAY 207782
11	MAY 22001188
12	WP90767 Whirlpool Screw
13	MAY 22001034
14	END CAP,CONTROL PANEL (BLK)
15	WP8281227 Whirlpool Screw
16	WP211065 Whirlpool Timer Spring
17	MAY 215828
18	MAY 216193
19	MAY 211605
20	W10155650 Whirlpool Nut
21	MAY 315041
22	MAY 33001291
23	MAY 33001009
24	MAY 315317
26	MAY 33001008
27	MAY 215952
28	MAY 315237
29	WP33001034 Whirlpool Dryer Timer
30	MAY 314482
31	488660 Whirlpool Refrigerator Nut
32	MAY 315286
33	MAY 22001180
34	MAY 208774
34	MAY 22001429
35	MAY 22001432
35	MAY 208776
36	MAY 33001043
36	MAY 33001369
36	MAY 33001554
