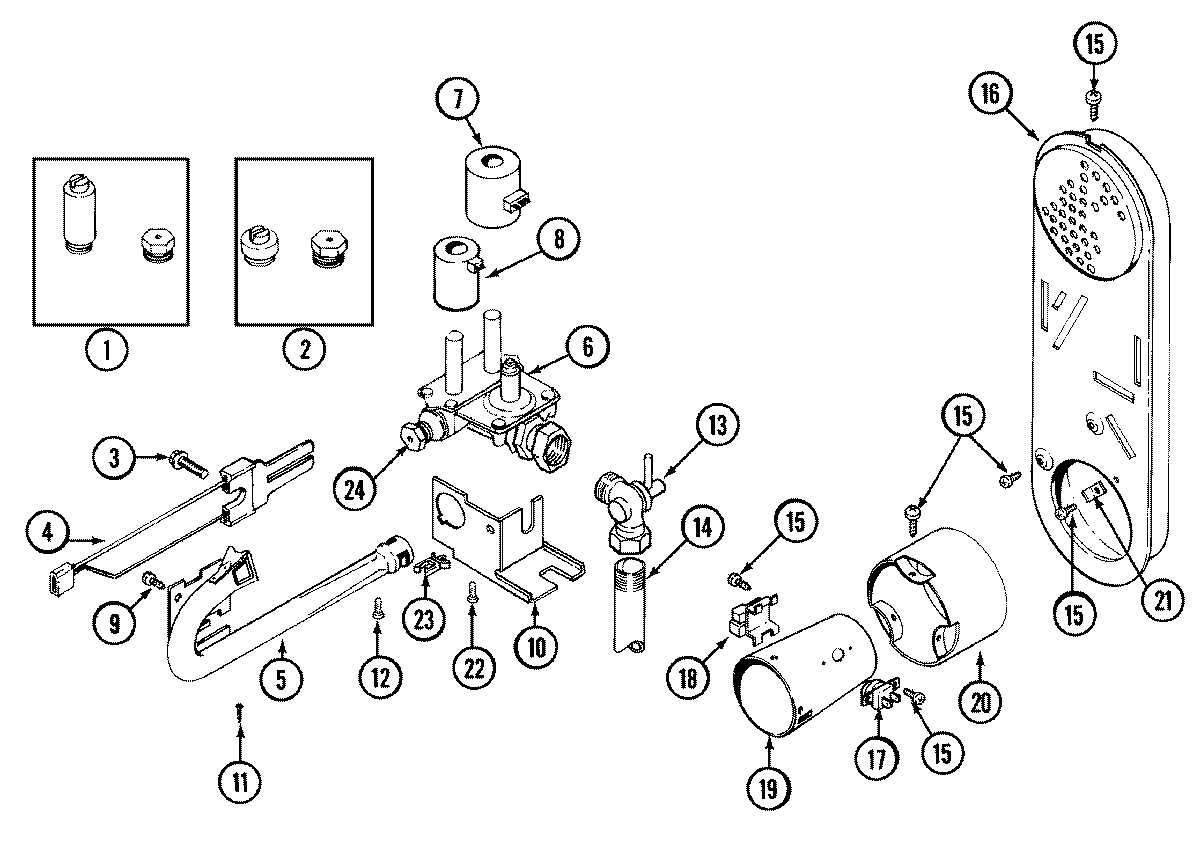

LSG7804AAM 08 – GAS VALVE (LSG7804AAM & ABM)

LSG7804AAM 08 – GAS VALVE (LSG7804AAM & ABM)

Written by

in

LSG7804AAM 08 – GAS VALVE (LSG7804AAM & ABM)

Products

PositionProduct
1MAY 306205
2MAY 306206
3MAY 304971
44391996 Whirlpool Dryer Flat Igniter
5MAY 33001310
6MAY 306084
8279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
10MAY 314508
11MAY Y313559
12MAY 314082
12MAY 314568
13MAY 306086
14MAY 33001311
15WP90767 Whirlpool Screw
16MAY Y303369
17WP303395 Whirlpool Thermostat
18WP338906 Whirlpool Dryer Gas Sensor
19MAY 33001312
20MAY 314509
21MAY Y312890
22MAY 212276
23MAY 315471
24MAY 314603
24ORIFICE FOR MAIN BURNER
24MAY 311640
