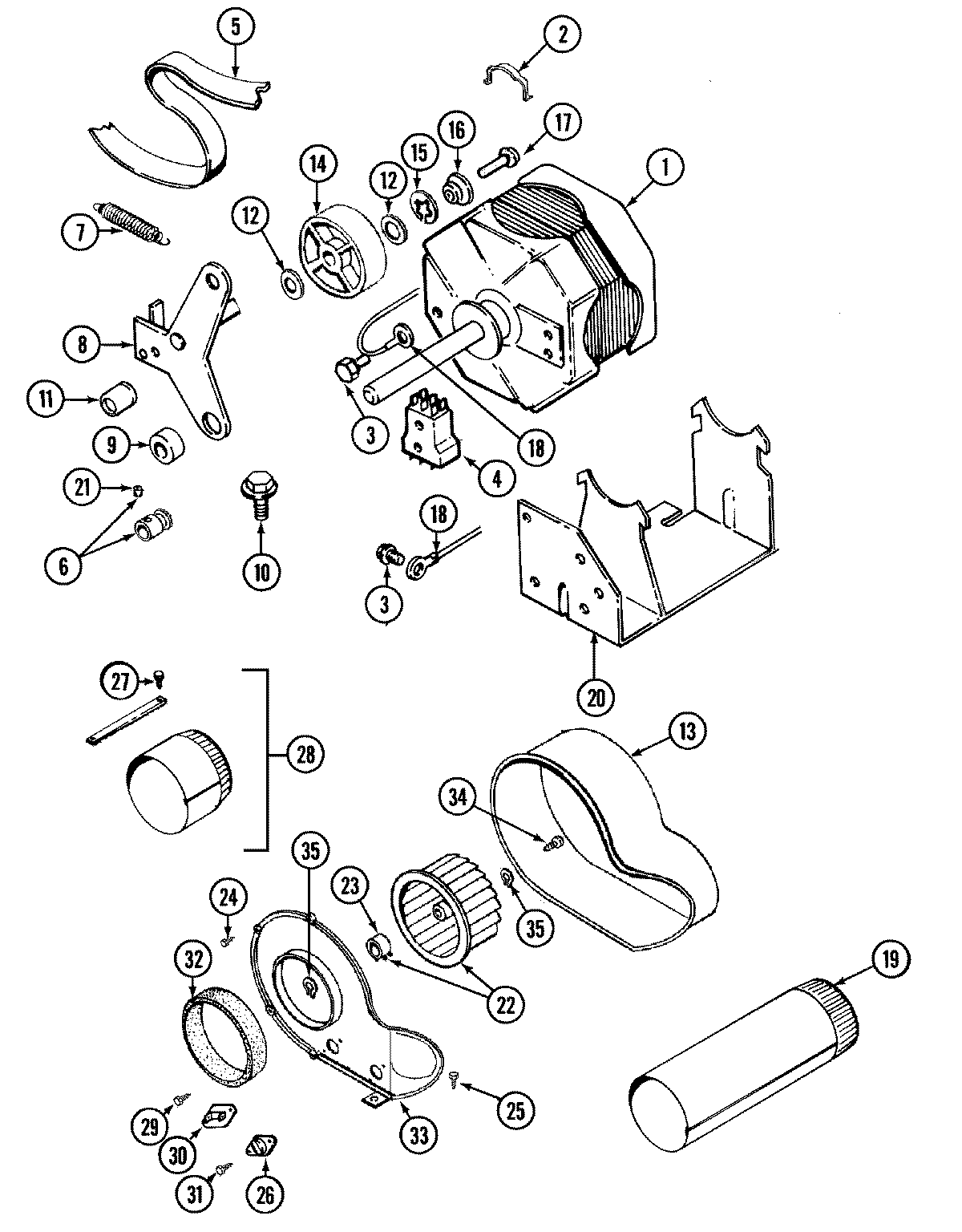

LSG7804ABL 10 – MOTOR-DRYER & BLOWER

Products

Position	Product
1	W10411000 Whirlpool Washer Dryer Drive Motor
2	WPY015825 Whirlpool Motor Clip
3	MAY 910343
4	MAY Y303877
4	MAY 306207
5	MAY 314774
6	MAY 306099
7	MAY 314473
8	WP6-3033630 Whirlpool Dryer Idler Arm Assembly
9	MAY 314457
11	MAY 314456
11	MAY Y312057
12	MAY Y312527
13	MAY Y312893
14	WP6-3037050 Whirlpool Idler Pulley
15	WP354987 Whirlpool C-Clip
16	SLEEVE, IDLER ARM ----S
17	MAY Y310842
18	MAY 901220
19	MAY 306637
20	MAY 306054
21	MAY Y053241
22	Y303836 Whirlpool Dryer Blower Wheel
23	WP312967 Whirlpool Clamp
24	WPW10116751 Whirlpool Screw
25	MAY Y313561
26	WP3387134 Whirlpool Dryer Cycling Thermostat
28	8544761A Whirlpool Exhaust Extension
29	WP90767 Whirlpool Screw
30	WP306604 Whirlpool Cut-off
31	MAY 314848
32	WPY312901 Whirlpool Blow Seal
33	MAY 314846
34	MAY Y310632
35	WP9703438 Whirlpool Snap Retaining Ring
