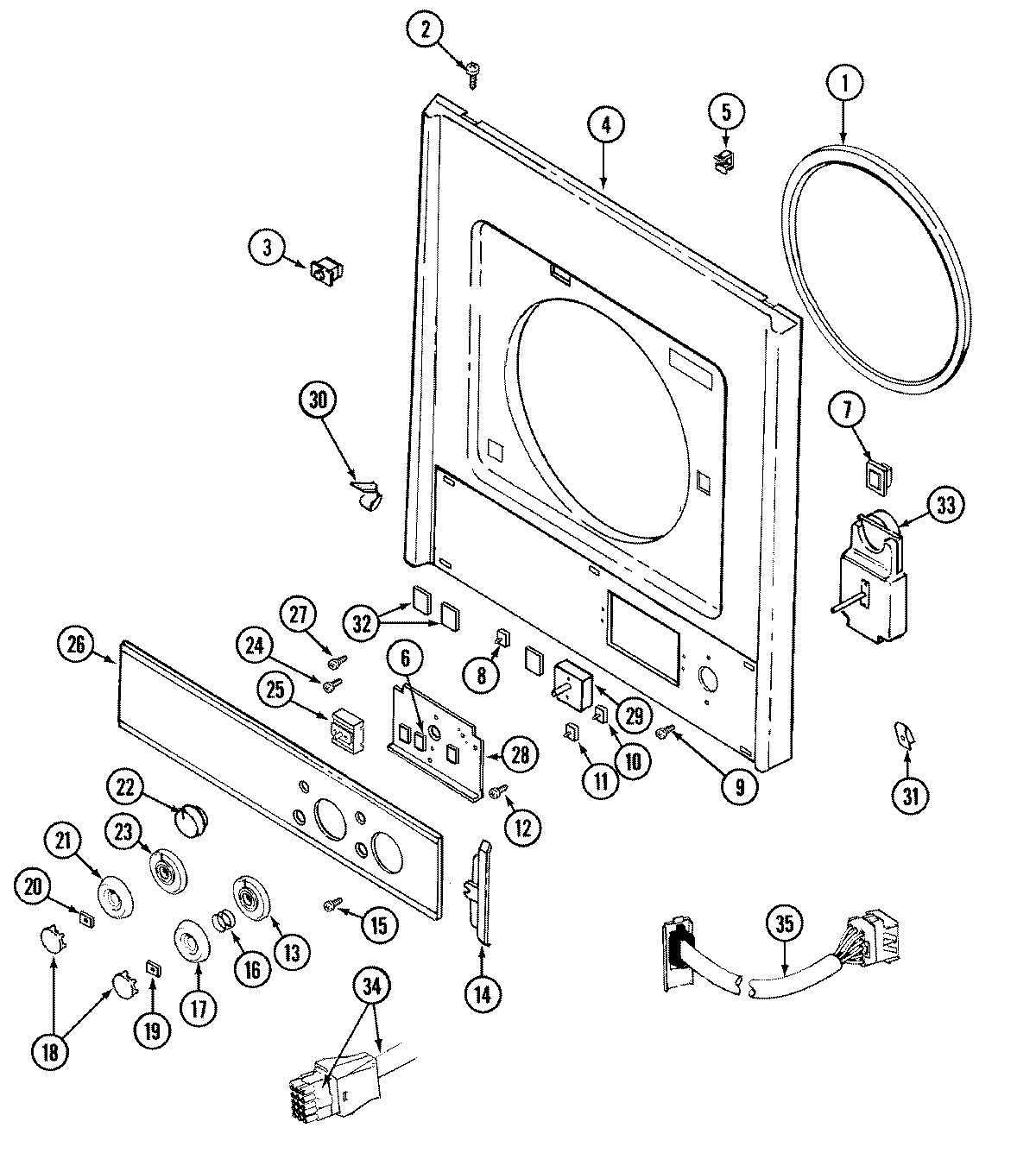

LSG7806AAM 09 – FRONT PANEL & CONTROL PANEL

Products

Position	Product
2	WP1163283 Whirlpool Air Conditioner Screw
3	W10169313 Whirlpool Door Switch Kit
4	WP98008544 Whirlpool Screw Assembly
4	MAY 33001190
5	MAY Y310376
6	MAY 315287
7	MAY Y304578
8	MAY 308017
9	MAY 216042
10	MAY 22001923
11	MAY 22001188
12	WP90767 Whirlpool Screw
13	MAY 22001935
14	MAY 33001479
15	WP8281227 Whirlpool Screw
16	WP211065 Whirlpool Timer Spring
17	MAY 22001199
18	MAY 22001447
19	MAY 211605
20	W10155650 Whirlpool Nut
21	MAY 33001282
22	MAY 33001480
23	MAY 22001936
24	MAY 315317
25	MAY 33001482
26	MAY 22001937
27	MAY 215952
28	MAY 315237
29	WP33001034 Whirlpool Dryer Timer
30	MAY 314482
31	488660 Whirlpool Refrigerator Nut
32	MAY 315286
33	WP22001924 Whirlpool Washer Timer
33	MAY 22001931
33	MAY 22001932
33	MAY 22002228
34	MAY 22001940
35	MAY 22001585
36	MAY 22004233
36	MAY 33001554
