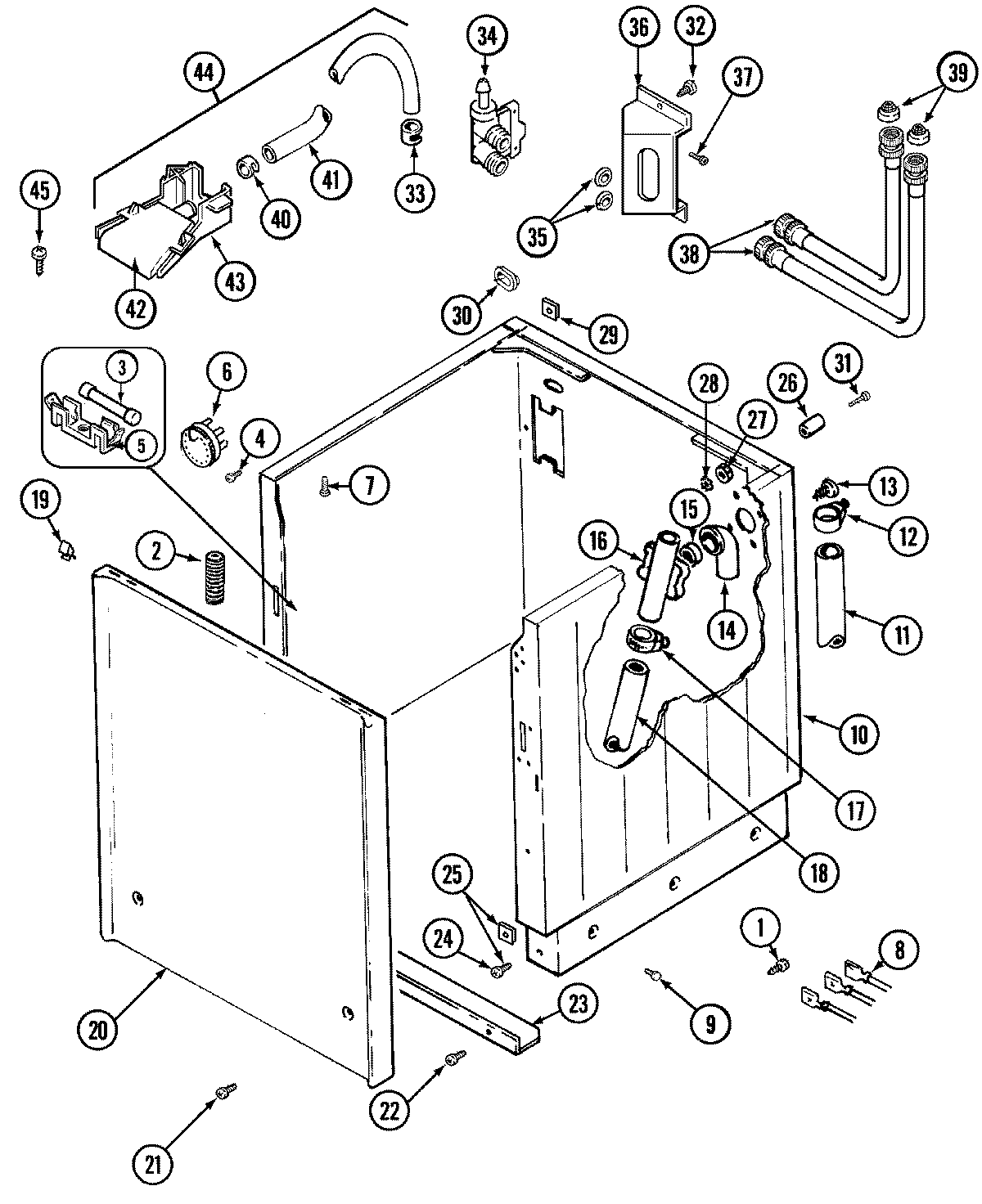

LSG7806ABQ 02 – CABINET (LSG7806ABQ)

Products

Position	Product
1	WP3177991 Whirlpool Screw
2	MAY Y200832
2	MAY 211149
3	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
4	WP210720 Whirlpool Rivet
5	MAY 207167
6	MAY 207787
6	MAY 22004231
6	MAY 208783
7	MAY 214354
8	MAY 22001941
9	213007 Whirlpool Screw #12
10	MAY 22002648
11	WP22002765 Whirlpool Hose Clip
11	MAY 22002701
11	WP22003410 Whirlpool Drain Hose
11	MAY 22001816
11	WP285655 Whirlpool Hose Clamp
12	MAY 200908
13	MAY 215711
14	MAY 22002651
15	MAY 22002600
16	WP90767 Whirlpool Screw
17	MAY 213846
18	WP27001200 Whirlpool Screw
19	SCREW & FSTNER ASSY (FT. PNL)
20	MAY 215276
21	MAY 310557
22	MAY Y052659
23	MAY 22001009
24	MAY 215277
25	MAY 212276
26	WP596669 Whirlpool Hose Clamp
27	WP22001274 Whirlpool Water Valve
28	MAY Y013783
29	MAY 22002374
30	MAY 22002372
31	WP76314 Whirlpool Fill Hose
32	MAY 200961
33	MAY 216170
34	MAY 22001191
35	MAY 22001187
36	WP22001186 Whirlpool Injector
37	MAY 22001175
38	MAY 215537
39	MAY 22001192
40	MAY Y310376
