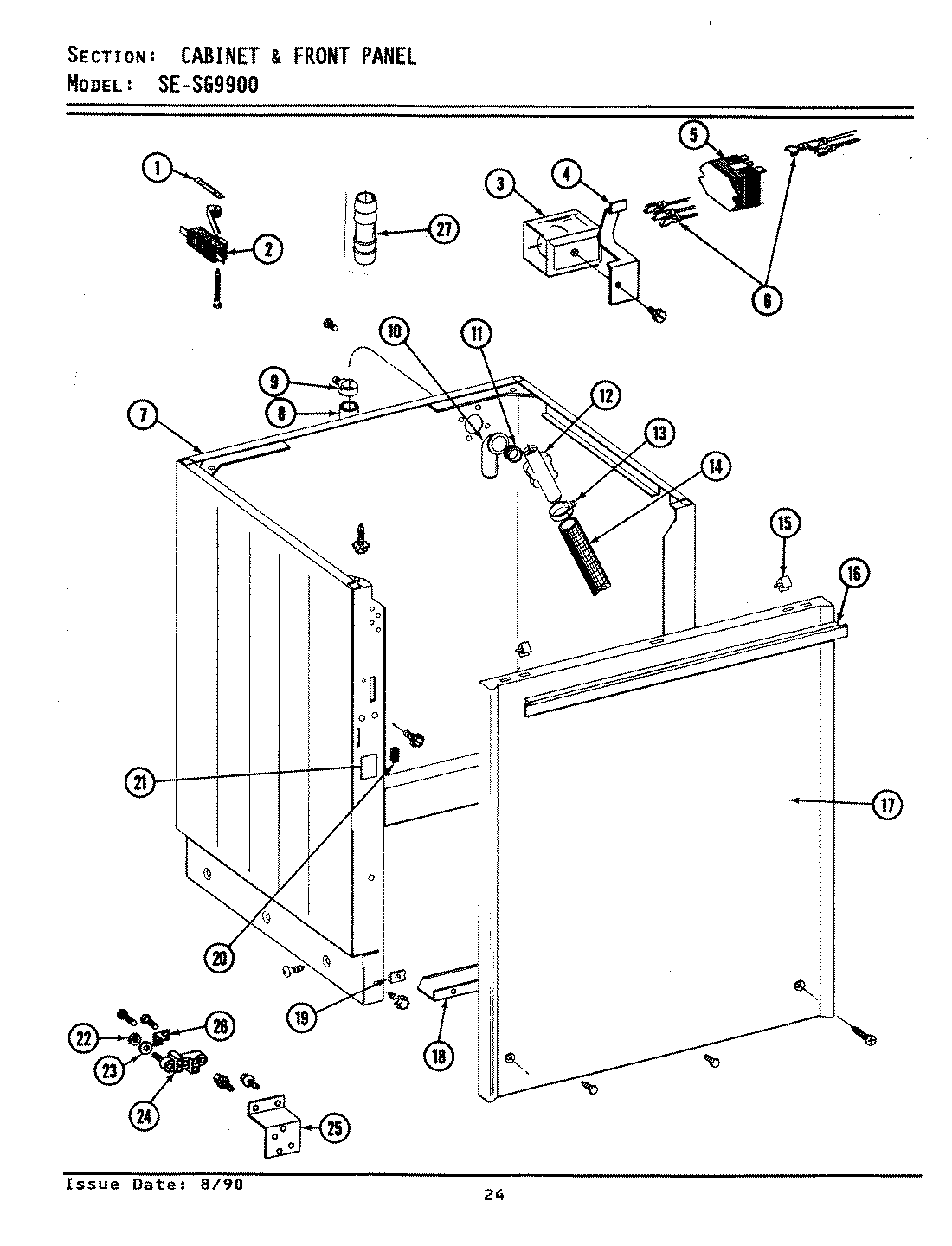

LSG9900 02 – CABINET & FRONT PANEL

Products

Position	Product
1	MAY 210866
2	MAY 213501
2	MAY 202476
3	MAY 206421
4	SCREW, BUSHINGS
5	MAY 901961
6	MAY 206423
7	WP27001200 Whirlpool Screw
7	MAY 207207L
7	213007 Whirlpool Screw #12
8	MAY 216017
8	WP22003410 Whirlpool Drain Hose
8	MAY Y059149
9	MAY 200461
9	MAY 200908
10	MAY 214764
10	WPW10116738 Whirlpool Elbow Connector
11	WP214765 Whirlpool Gasket
12	206638 Whirlpool Break Siphon Connector Kit
12	WPY014874 Whirlpool Screw
13	WP285655 Whirlpool Hose Clamp
14	WP22001448 Whirlpool Drain Pump Hose
15	MAY 215711
16	MAY 215266
17	MAY 207205
17	MAY 207205L
17	WP22001496 Whirlpool Screw
18	MAY 213846
18	WP90767 Whirlpool Screw
19	MAY 213280
20	MAY 214376
21	MAY 314609
22	WP112432 Whirlpool Nut Assembly
23	WPY311270 Whirlpool Washer TE
24	PART NOT USED
25	PART NOT USED
26	PART NOT USED
27	MAY Y216015
