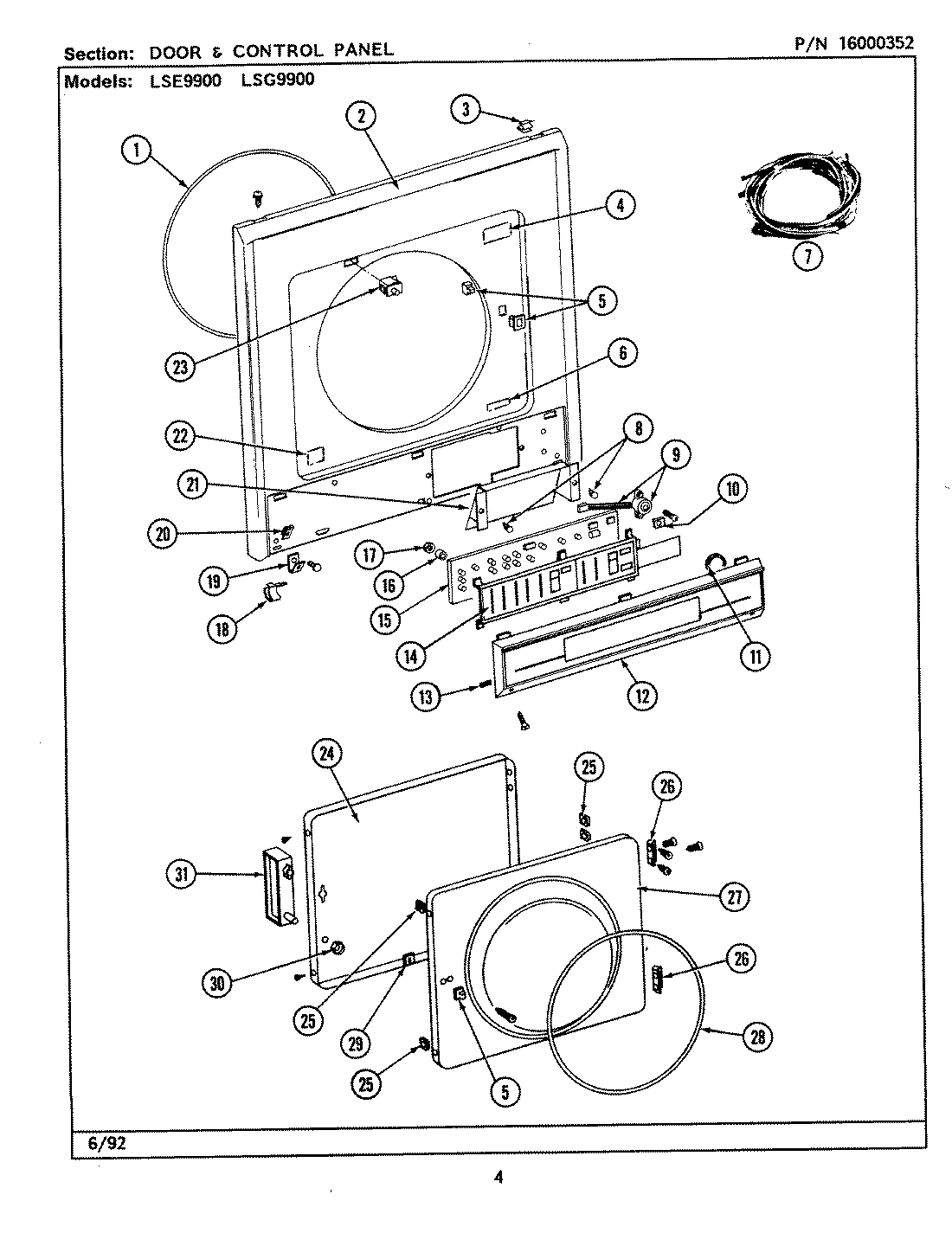

LSG9900AAE 11 – DOOR & CONTROL PANEL

Products

Position	Product
2	MAY 314474
2	WP1163283 Whirlpool Air Conditioner Screw
3	MAY Y310376
4	MAY Y313927
5	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
5	SCREW
6	MAY 314609
7	MAY 306717
7	WIRE HARNESS, MAIN (SG9900)
7	CABLE STRAP-HARNESS TO BASE
7	MAY Y312953
8	MAY 314523
9	SCREW, BUSHINGS
9	MAY 306070
10	MAY 912086
11	MAY 314561
12	CONTROL PANEL
12	MAY 210932
13	MAY 314560
14	MAY Y307965
15	MAY 306069
16	MAY 912075
17	M0282005 Whirlpool Nut
18	MAY 314482
19	MAY 314481
19	WP90767 Whirlpool Screw
20	MAY 314748
21	MAY 314517
22	MAY 314486
23	W10169313 Whirlpool Door Switch Kit
24	MAY 314475
25	CLIP, DOOR LINER
26	MAY Y304577
27	MAY 306676
28	MAY 314077
29	MAY Y313911
30	MAY 214872
31	MAY 314476
