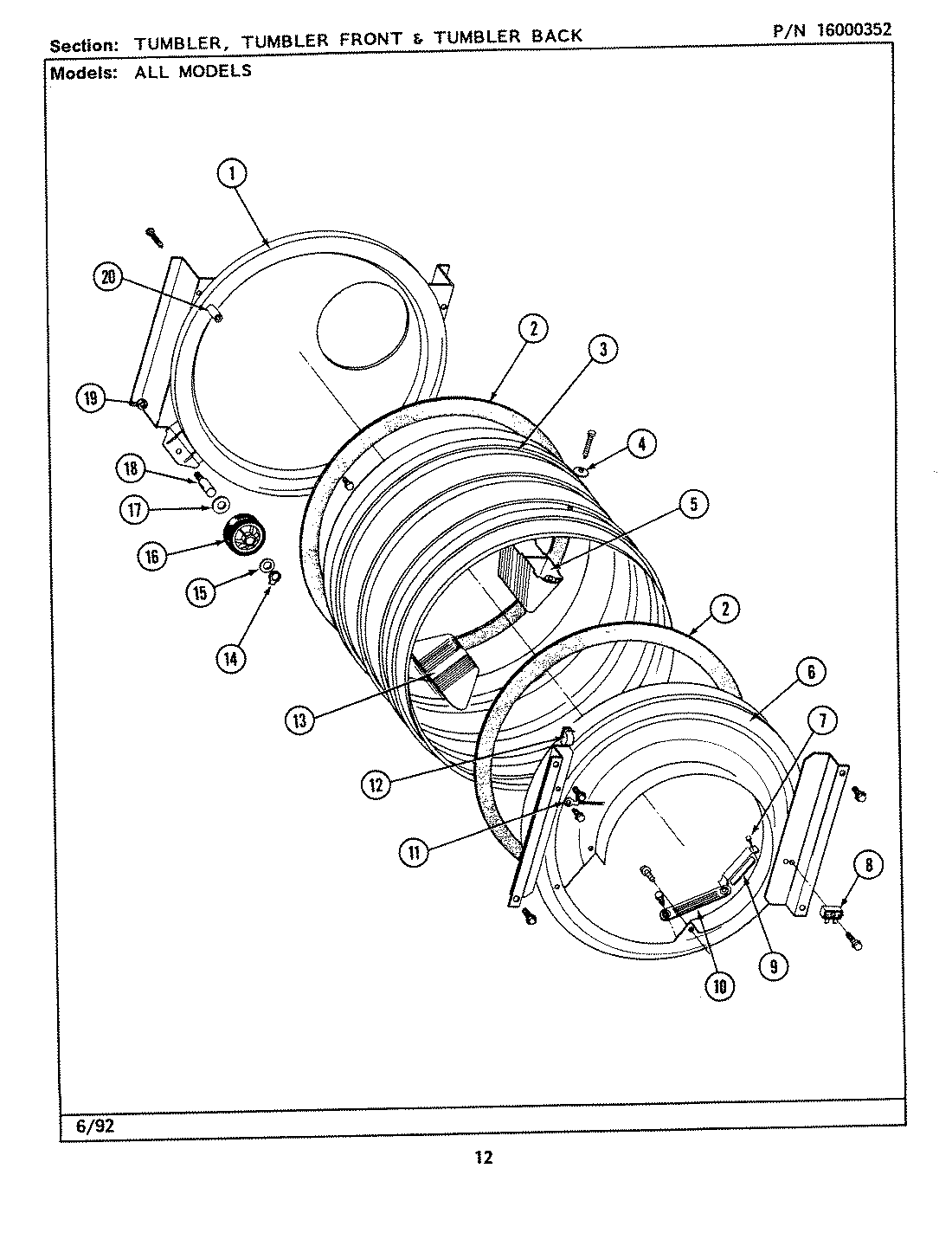

LSG9900AAW 17 – TUMBLER (FRONT & BACK)

Products

Position	Product
1	MAY Y306660
1	MAY 313764
2	WP314820 Whirlpool Felt Seal
3	MAY Y306664
3	MAY 314805
4	MAY 314158
5	MAY 314807
6	MAY Y313561
6	MAY Y310632
6	MAY 306710
6	SCREW, INLET DUCT ----S
7	WP210720 Whirlpool Rivet
8	MAY 314554
8	MAY 306130
9	306508 Whirlpool Dryer Front Glide Kit
10	MAY 304997
10	WP3177991 Whirlpool Screw
11	MAY 901220
11	WP90767 Whirlpool Screw
12	MAY Y310376
13	MAY Y310759
13	MAY 314806
14	WP9703438 Whirlpool Snap Retaining Ring
15	WP312535 Whirlpool Washer
16	MAY Y303373
18	WP6-3129480 Whirlpool Roller Shaft
19	MAY 312538
20	MAY 313915
