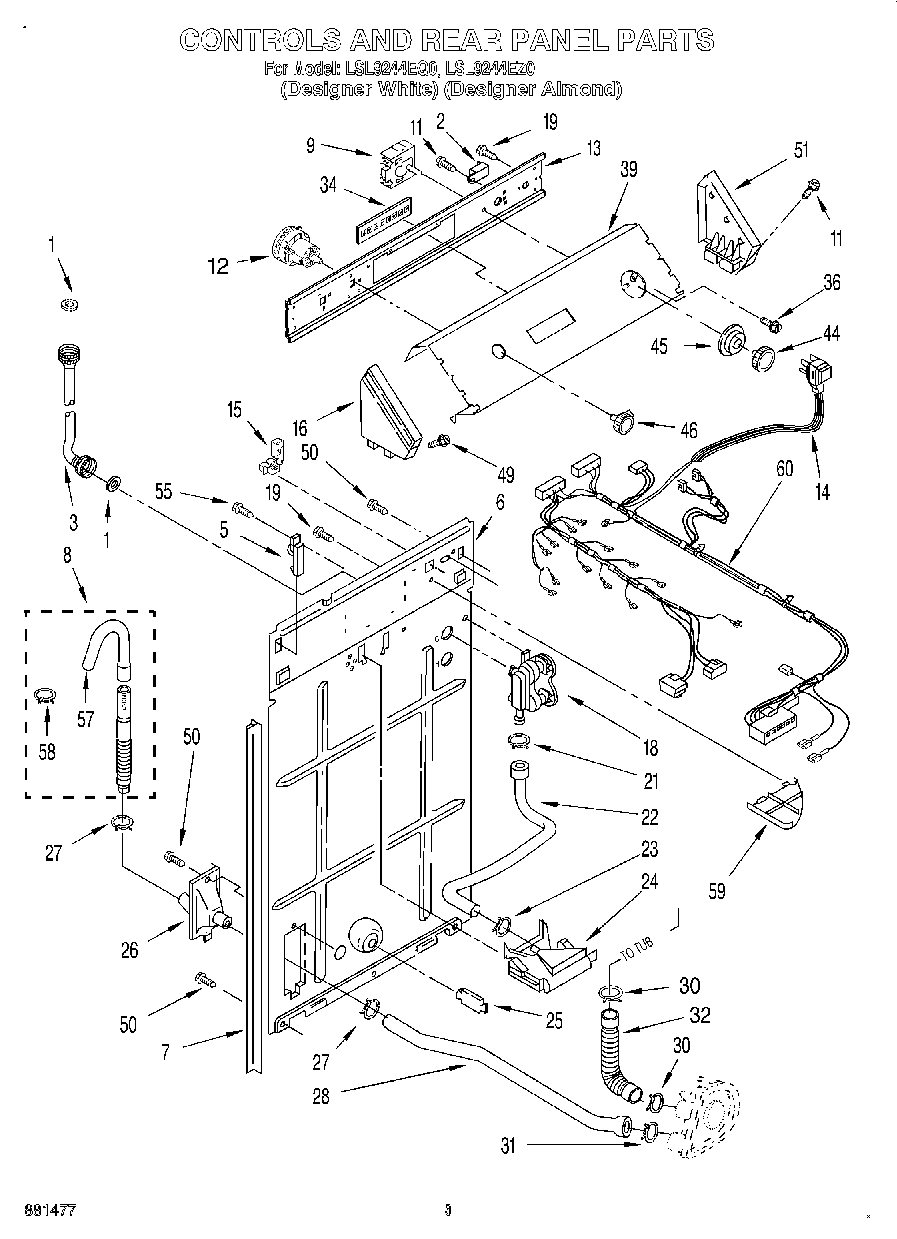

LSL9244EZ0 02 – CONTROLS AND REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP694419 Whirlpool Buzzer Adjuster
3	WP89503 Whirlpool Washer Fill Hose
5	Hinge, Console (2)
6	WP3357978 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	285664 Whirlpool Drain Hose
8	285666 Whirlpool Drain Hose 10'
8	285702 Whirlpool Extensions
9	Timer, Control (60 Hz.) (Motor Not A Service Part)
11	WP90767 Whirlpool Screw
12	W10337780 Whirlpool Pressure Switch
13	Bracket, Control
14	Cord, Power (Power Cord Only, Without Harness)
15	Strain Relief, Power Cord
16	Cap, End (L.H.) (Almond)
16	Cap, End (L.H.)
18	285805 Whirlpool Washer Water Inlet Valve
19	WP3351614 Whirlpool Screw
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	WP8519200 Whirlpool Support Assembly
26	WPW10358149 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
28	Hose, Pump To Drain
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
34	Switch, Touch-Pad (8) (Almond)
34	Switch, Touch-Pad (8) (White)
36	W10915367 Whirlpool Screw Assembly
39	Panel, Console (White Model)
39	Panel, Console (Almond Model)
44	WP3957823 Whirlpool Knob
44	W10807860 Whirlpool White Control Knob
45	WPL 3948588
45	WP3957841 Whirlpool Dial
46	3957797 Whirlpool Knob
46	WP3957796 Whirlpool Knob
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	Cap, End (R.H.) (Almond)
51	Cap, End (R.H.)
55	WP308685 Whirlpool Microwave Screw
57	WP3357027 Whirlpool Nozzle Assembly
58	WP3357331 Whirlpool Clamp
59	WPL 3348424
60	WPL 3951782
