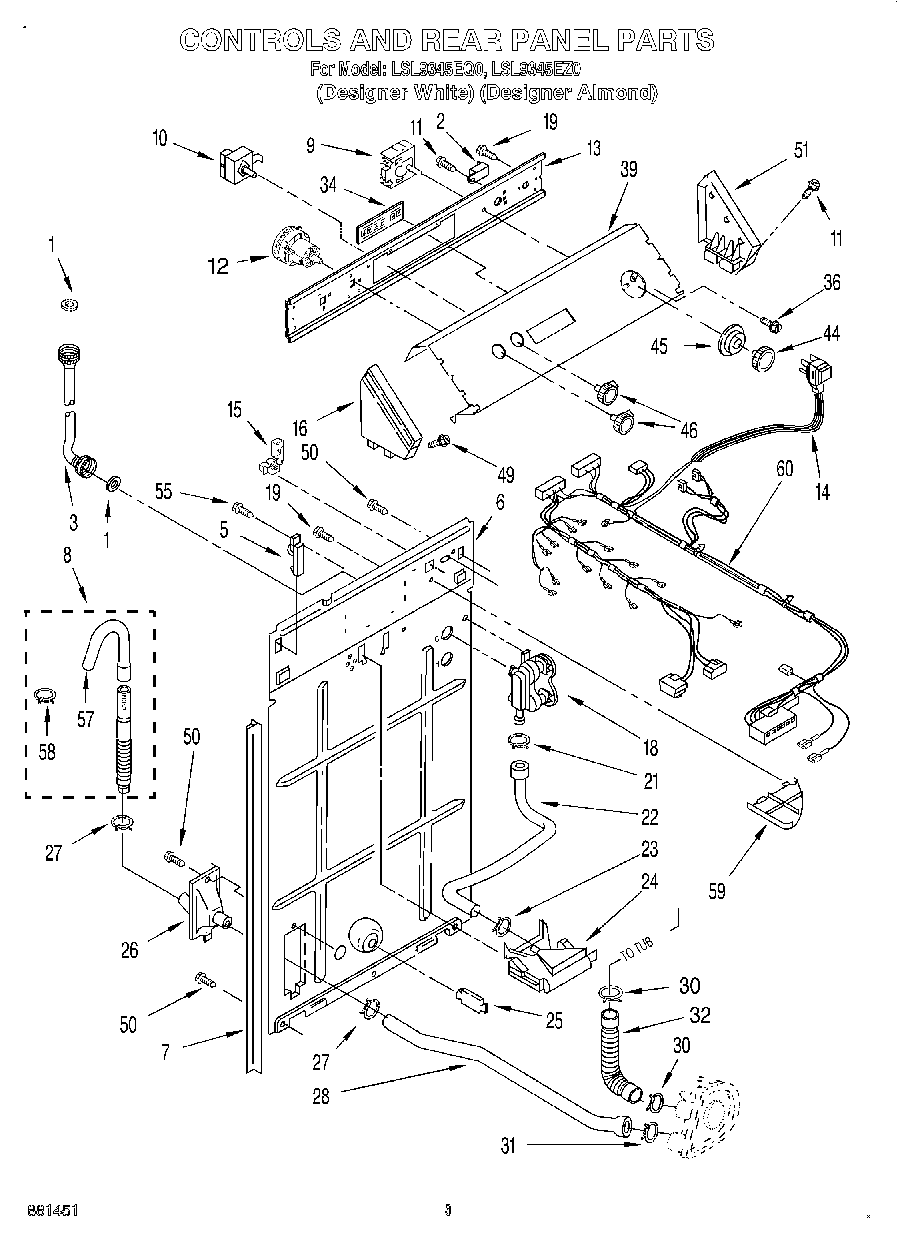

LSL9345EQ0 02 – CONTROLS AND REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP694419 Whirlpool Buzzer Adjuster
3	WP89503 Whirlpool Washer Fill Hose
5	Hinge, Console (2)
6	WP3357978 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	285702 Whirlpool Extensions
8	285664 Whirlpool Drain Hose
8	285666 Whirlpool Drain Hose 10'
9	Timer, Control (60 Hz.) (Motor Not A Service Part)
10	WPW10168257 Whirlpool Cycle Switch
11	WP90767 Whirlpool Screw
12	W10335056 Whirlpool Water Level Pressure Switch
13	Bracket, Control
14	Cord, Power (Power Cord Only, Without Harness)
15	Strain Relief, Power Cord
16	Cap, End (L.H.) (Almond)
16	Cap, End (L.H.)
18	285805 Whirlpool Washer Water Inlet Valve
19	WP3351614 Whirlpool Screw
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	WP8519200 Whirlpool Support Assembly
26	WPW10358149 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
28	Hose, Pump To Drain
30	WP616099 Whirlpool Clamp
31	WP371502 Whirlpool Clamp
32	285871 Whirlpool Hose and Clamp
34	Switch, Clean Touch (6 Pads) (Almond Model)
34	Switch, Clean Touch (6 Pads) (White Model)
36	WP356418 Whirlpool Screw
39	Panel, Console (Almond Model)
39	Panel, Console (White Model)
44	WP3364293 Whirlpool Timer Knob
45	280193 Whirlpool Timer Knob
45	Dial, Timer (For Designer White Model)
46	3957797 Whirlpool Knob
46	WP3957796 Whirlpool Knob
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	Cap, End (R.H.) (Almond)
51	Cap, End (R.H.)
55	WP308685 Whirlpool Microwave Screw
57	WP3357027 Whirlpool Nozzle Assembly
58	WP3357331 Whirlpool Clamp
59	WPL 3348424
60	WPL 3951388
