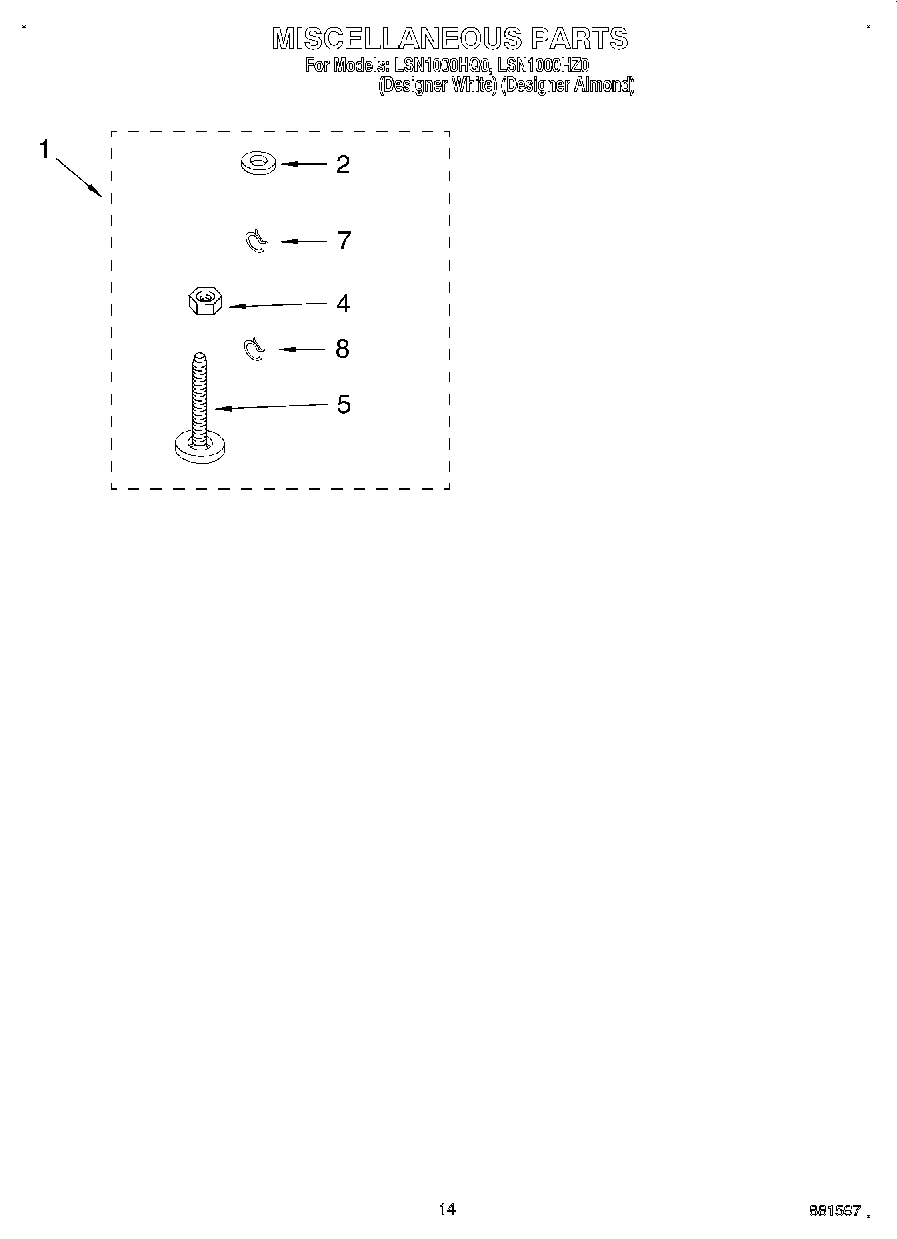

LSN1000HZ0 10 – MISCELLANEOUS, LIT/OPTIONAL

Products

PositionProduct
1Miscellaneous Parts Bag
2WP16123 Whirlpool Washer
4WP3359452 Whirlpool Nut
5WPW10001130 Whirlpool Leveling Leg
7WP356138 Whirlpool Hose Clamp
8WP3357331 Whirlpool Clamp
8WP285195 Whirlpool Sealer Assembly
8LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
8Shipping Kit
8350572 Whirlpool Oil Transmission 15 Oz
8Drain Protector (Not Included)
8285320 Whirlpool Washer Siphon Break Kit
8Almond (Uncut)
8WP72107 Whirlpool Touchup
8799344 Whirlpool Refrigerator Paint
872017 Whirlpool Appliance Touch-Up Paint White
8350956 Whirlpool Spray Assembly
8350938 Whirlpool Spray Gun
8350930 Whirlpool White Spray Paint
