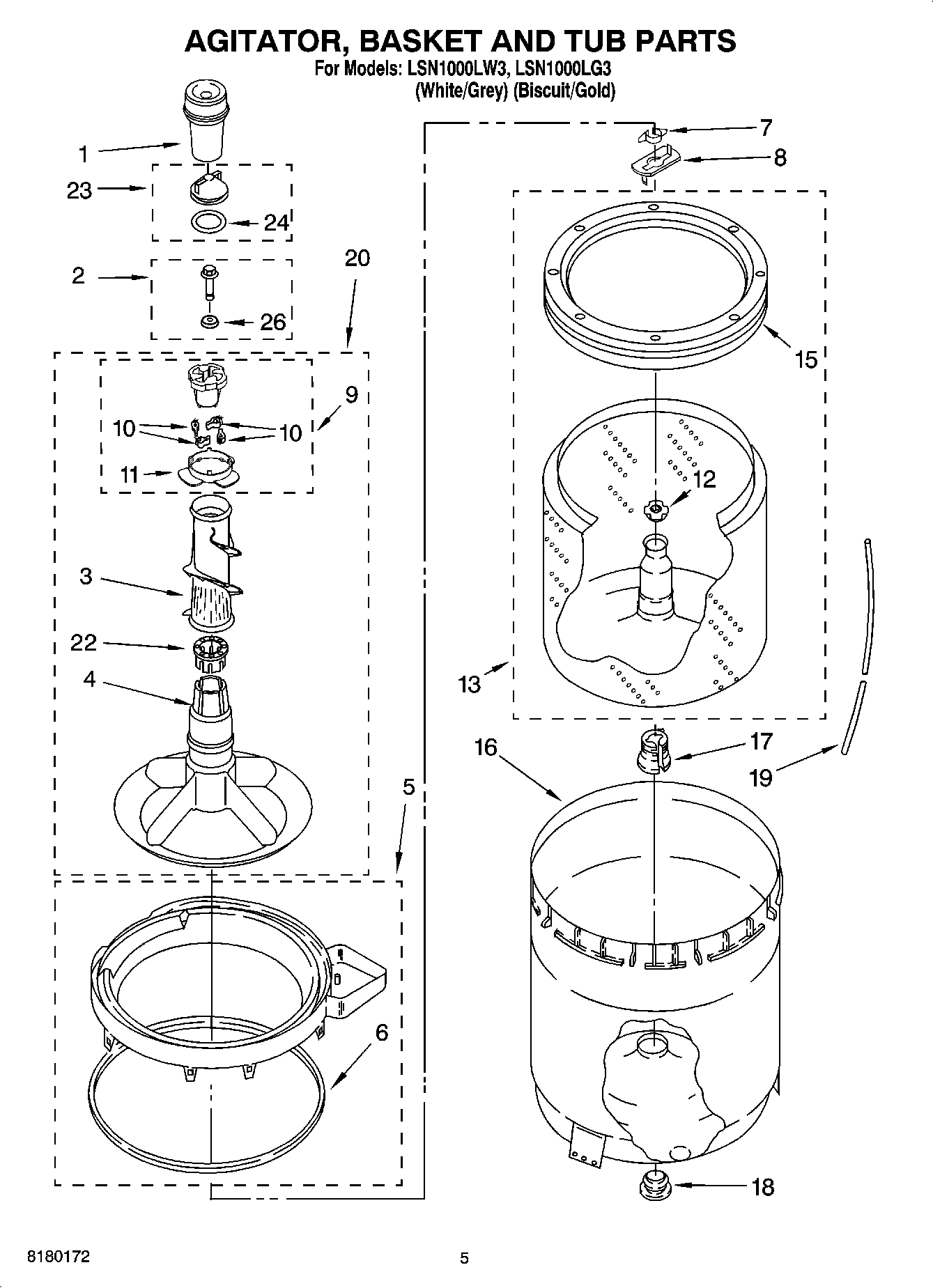

LSN1000LW3 03 – AGITATOR, BASKET AND TUB PARTS

LSN1000LW3 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

LSN1000LW3 03 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
163580 Whirlpool Washer Fabric Softener Dispenser
2WP358237 Whirlpool Agitator Bolt
3WP3363003 Whirlpool Agitator Mover
4AGITATOR
5W10880720 Whirlpool Tub Ring
6WP3976308 Whirlpool Tub Seal
7WP3354845 Whirlpool Clip
8WP8543666 Whirlpool Washer
9285809 Whirlpool Washer Agitator Cam Kit
1080040 Whirlpool Washer Agitator Dog Kit
11WP3952374 Whirlpool Bearing
12WP21366 Whirlpool Spanner Nut
13W10389328 Whirlpool Basket
15WP387240 Whirlpool Balance Ring
1663849 Whirlpool Outer Tub Primary Assembly
17WP389140 Whirlpool Drive Block or Bell
18W10814296 Whirlpool Washer Center Post Seal Gasket
19WP353244 Whirlpool Hose
20285565 Whirlpool Agitator Assembly
22WP3951608 Whirlpool Washer Agitator Thrust Spacer
23WPW10074580 Whirlpool Agitator Inner Cap and Seal
24WPW10072840 Whirlpool Seal Assembly
26WP3949550 Whirlpool Gasket Assembly
