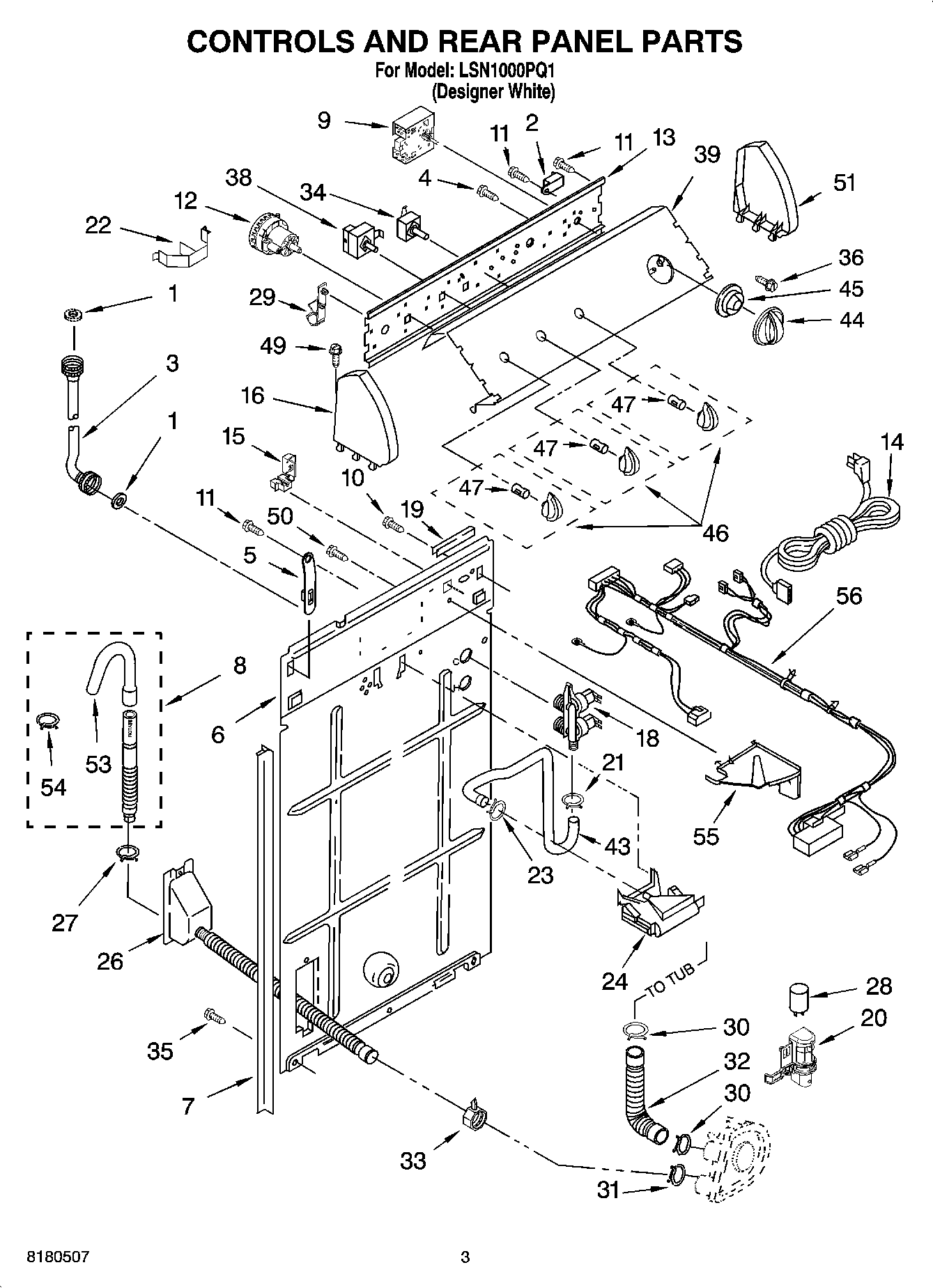

LSN1000PQ1 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP694419 Whirlpool Buzzer Adjuster
3	WP89503 Whirlpool Washer Fill Hose
4	3400073 Whirlpool Screw
5	WP8568314 Whirlpool Strap
6	WP3357978 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	285664 Whirlpool Drain Hose
8	285666 Whirlpool Drain Hose 10'
8	285702 Whirlpool Extensions
9	WP8557301 Whirlpool Timer
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10339326 Whirlpool Washer Water Level Switch
13	WP3948608 Whirlpool Bracket
14	Cord, Power (Includes Illus. 15)
15	Strain Relief, Power Cord
18	285805 Whirlpool Washer Water Inlet Valve
19	Edge Protector
20	Clip, Capacitor
21	WP596669 Whirlpool Hose Clamp
22	Clip, Harness & Pressure Hose
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
26	WPW10358149 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
28	CAPACITOR
29	Retainer, Harness
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Clamp, Hose
34	WPW10168257 Whirlpool Cycle Switch
35	WP3390631 Whirlpool Screw
36	WP3400818 Whirlpool Screw
38	WPW10168256 Whirlpool Temperature Switch
39	Panel, Console
43	HOSE
44	Knob, Timer (White)
45	WP8544947 Whirlpool Dial
46	WPL 8544935
47	WP8536939 Whirlpool Spring Clip
49	WP388326 Whirlpool Screw
50	WP9740848 Whirlpool Dishwasher Screw
51	W10820038 Whirlpool Endcap
53	WP3357027 Whirlpool Nozzle Assembly
54	WP3357331 Whirlpool Clamp
55	WPL 8539874
56	WPL 3957255
