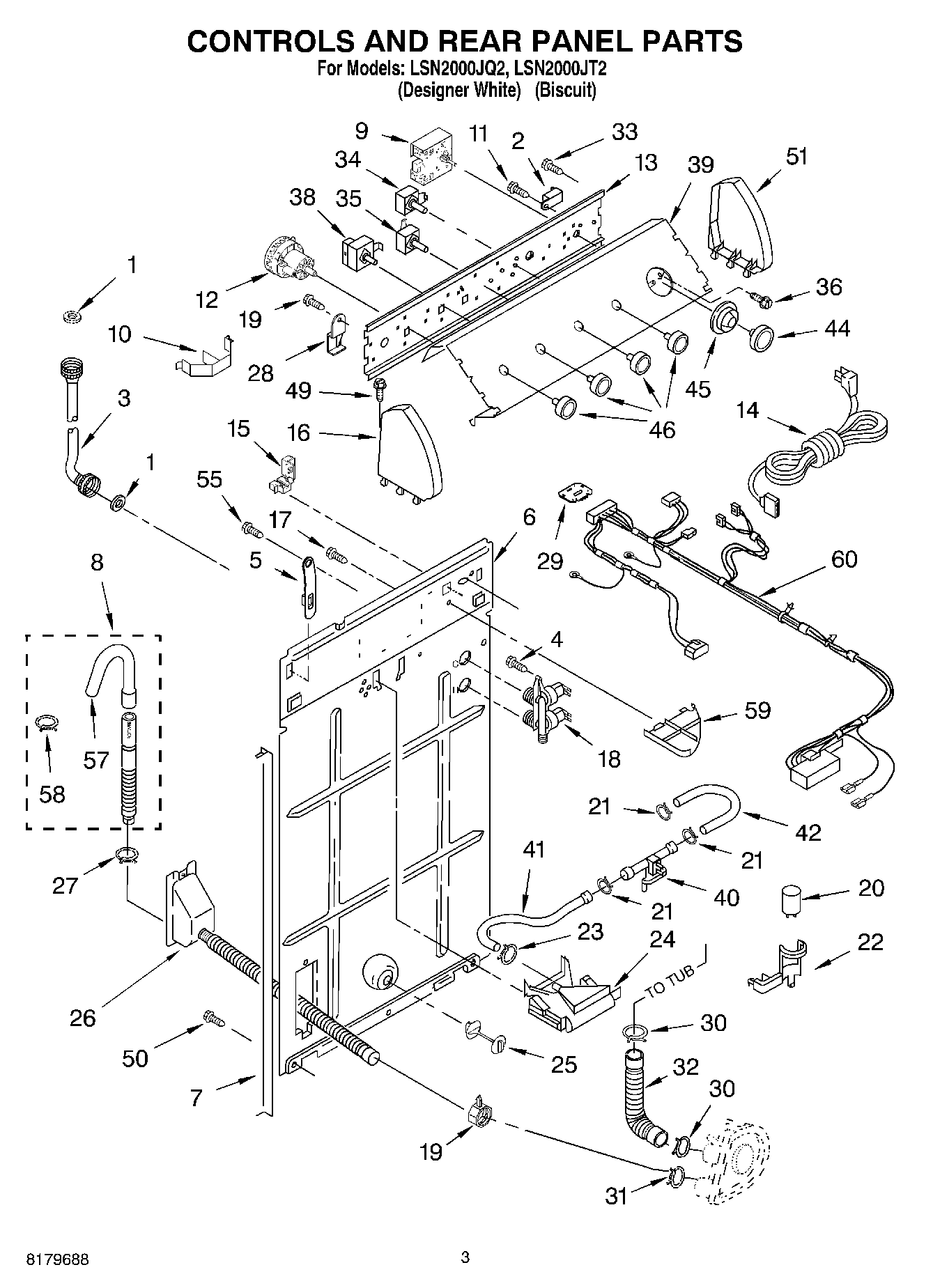

LSN2000JQ2 02 – CONTROLS AND REAR PANEL

LSN2000JQ2 02 – CONTROLS AND REAR PANEL

Written by

in

LSN2000JQ2 02 – CONTROLS AND REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP694419 Whirlpool Buzzer Adjuster
3WP89503 Whirlpool Washer Fill Hose
4WP9740848 Whirlpool Dishwasher Screw
5WP8568314 Whirlpool Strap
6WP3357978 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285664 Whirlpool Drain Hose
8285666 Whirlpool Drain Hose 10'
8285702 Whirlpool Extensions
9WP3954071 Whirlpool Timer
10Clip, Harness & Pressure Hose
11WP90767 Whirlpool Screw
12W10335056 Whirlpool Water Level Pressure Switch
13WP3948608 Whirlpool Bracket
14W10820044 Whirlpool Power Cord
15Strain Relief, Power Cord
16Cap, End (L.H.) (BIscuit)
17WP3351614 Whirlpool Screw
18285805 Whirlpool Washer Water Inlet Valve
19Clamp, Hose
20WP8572720 Whirlpool Capacitor
21WP596669 Whirlpool Hose Clamp
22Clip, Capacitor
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WP8519200 Whirlpool Support Assembly
26WPW10358149 Whirlpool Hose
28Retainer, Harness
29E.T.C. Control
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
333400073 Whirlpool Screw
34WPW10168257 Whirlpool Cycle Switch
35Switch, Cycle
36WP3400064 Whirlpool Screw
38Switch, Water Temperature
39Panel, Console (Biscuit)
39Panel, Console (White)
40Sensor-ETC-Inline
41WP3349365 Whirlpool Hose
42WP3357319 Whirlpool Hose
44WP3364293 Whirlpool Timer Knob
44Knob, Timer (Biscuit)
45Dial, Timer (Biscuit)
45WP3957849 Whirlpool Timer Dial
46WP3957799 Whirlpool Knob
463957797 Whirlpool Knob
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51WPL 8271362
51W10820038 Whirlpool Endcap
55WP488729 Whirlpool Refrigerator Door Screw
57WP3357027 Whirlpool Nozzle Assembly
58WP3357331 Whirlpool Clamp
59WPL 3348424
60WPL 3955724
