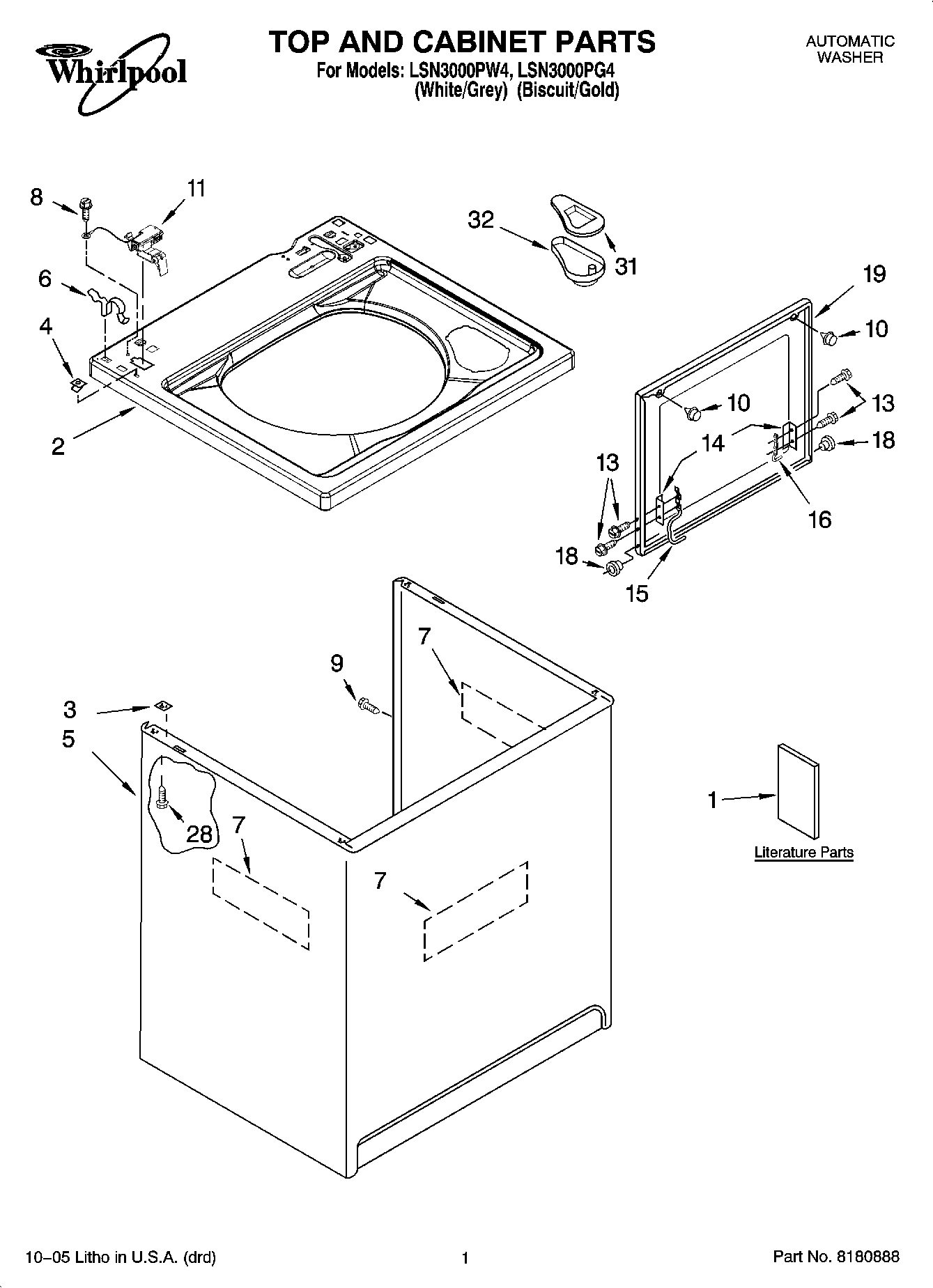

LSN3000PG4 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Energy Guide
1Manual, Washer Do-It-Yourself
1Use & Care Guide
1Installation Instructions
1Feature Sheet
1Wiring Diagram
2Top (White)
2Top (Biscuit)
3WP62750 Whirlpool Spacer
4WP357213 Whirlpool Hinge Stopper
5Cabinet (Biscuit)
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7Cabinet – Sound Damper
8WP3351614 Whirlpool Screw
9WP308685 Whirlpool Microwave Screw
10WP9724509 Whirlpool Bumper
11WP8318084 Whirlpool Washer Lid Switch Assembly
13SCREW
14WP21097 Whirlpool Pad
15Hinge, Lid (L.H.)
16WP91770 Whirlpool Hinge
18Bearing, Lid Hinge (2)
19Lid (Biscuit)
19Lid (White)
28WP3390631 Whirlpool Screw
31Cover, Dispenser
32Dispenser, Bleach
