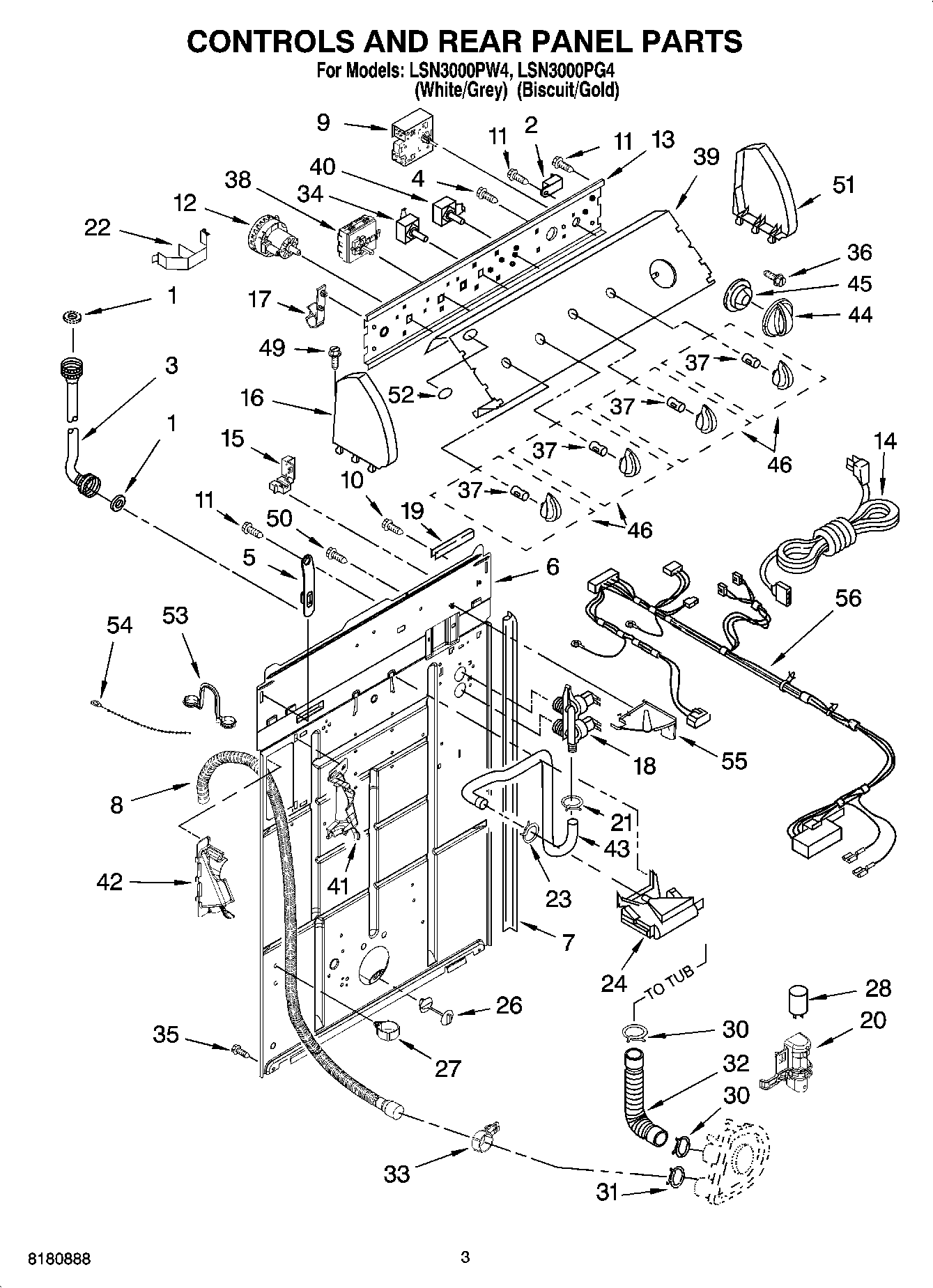

LSN3000PW4 02 – CONTROLS AND REAR PANEL PARTS

LSN3000PW4 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

LSN3000PW4 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP694419 Whirlpool Buzzer Adjuster
3WP89503 Whirlpool Washer Fill Hose
3FILL HOSE 5' W/WASHER
43400073 Whirlpool Screw
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
9WP3955765 Whirlpool Timer Assembly
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12W10339326 Whirlpool Washer Water Level Switch
13Bracket, Control
14Cord, Power (Includes Illus. 15)
15Strain Relief, Power Cord
16Cap, End (L.H.) (BIscuit)
17Retainer, Harness
18WP3979346 Whirlpool Water Inlet Valve
19Edge Protector
20Clip, Capacitor
21WP596669 Whirlpool Hose Clamp
22Clip, Harness & Pressure Hose
24WP3360977 Whirlpool Washer Tub Fill Nozzle
26WP8519200 Whirlpool Support Assembly
27Clamp, Hose
28WP8572720 Whirlpool Capacitor
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
338541668 Whirlpool Washer Clamp
34W10168264 Whirlpool Cycle Switch
35WP3390631 Whirlpool Screw
36WP3400818 Whirlpool Screw
37WP8536939 Whirlpool Spring Clip
38Switch, Water Temperature (ATC)
39Panel, Console (Includes Item 52) (Gold)
39Panel, Console (Includes Item 52) (Silver)
40Switch, Rotary
41(Left Half)
42(Right Half)
42WPW10096921 Whirlpool Hose
43HOSE
44Kn
44WPL 8544946
45Dial, Timer (Biscuit)
45WP8544947 Whirlpool Dial
46WPL 8544938
46WPL 8544937
49WP388326 Whirlpool Screw
50WP9740848 Whirlpool Dishwasher Screw
51W10820038 Whirlpool Endcap
51WPL 8271362
52WPL 3400985
53WP8577378 Whirlpool Retainer
54WPW10339879 Whirlpool Wire Tie
55WPL 8539874
56WPL 3957278
56Miscellaneous Parts Bag
56WPL ARI157510A
