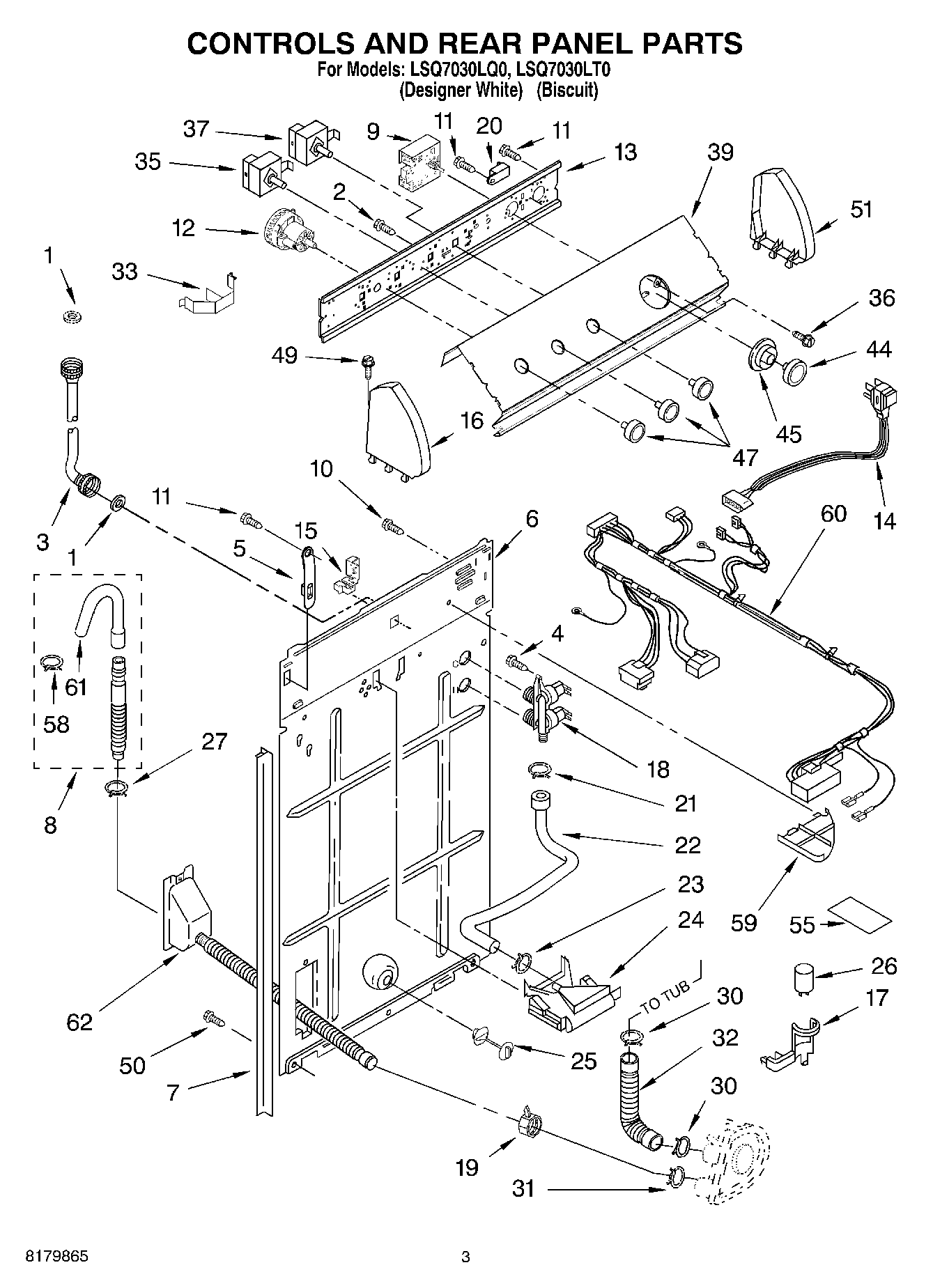

LSQ7030LT0 02 – CONTROLS AND REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
2	3400073 Whirlpool Screw
3	WP89503 Whirlpool Washer Fill Hose
4	WP9740848 Whirlpool Dishwasher Screw
5	WP8568314 Whirlpool Strap
6	WP3357978 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	285664 Whirlpool Drain Hose
8	285666 Whirlpool Drain Hose 10'
8	285702 Whirlpool Extensions
9	WP3953321 Whirlpool Timer
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	SWITCH-WL
13	WP3948608 Whirlpool Bracket
14	W10820044 Whirlpool Power Cord
15	Strain Relief, Power Cord
16	Cap, End (L.H.) (BIscuit)
17	Clip, Capacitor
18	285805 Whirlpool Washer Water Inlet Valve
19	Clamp, Hose
20	WP694419 Whirlpool Buzzer Adjuster
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	WP8519200 Whirlpool Support Assembly
26	CAPACITOR
27	WP356138 Whirlpool Hose Clamp
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Clip, Harness & Pressure Hose
35	WPW10168256 Whirlpool Temperature Switch
36	WP3400818 Whirlpool Screw
37	WPW10168257 Whirlpool Cycle Switch
39	Panel, Console
39	Panel, Console (Biscuit)
44	W10807860 Whirlpool White Control Knob
44	WP3957822 Whirlpool Knob
45	WP3957849 Whirlpool Timer Dial
45	Dial, Timer (Biscuit)
47	WP3957799 Whirlpool Knob
47	3957797 Whirlpool Knob
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	W10820038 Whirlpool Endcap
51	WPL 8271362
55	Shield, Capacitor
58	WP3357331 Whirlpool Clamp
59	WPL 3348424
60	WPL 3955020
61	WP3357027 Whirlpool Nozzle Assembly
62	WPW10358149 Whirlpool Hose
