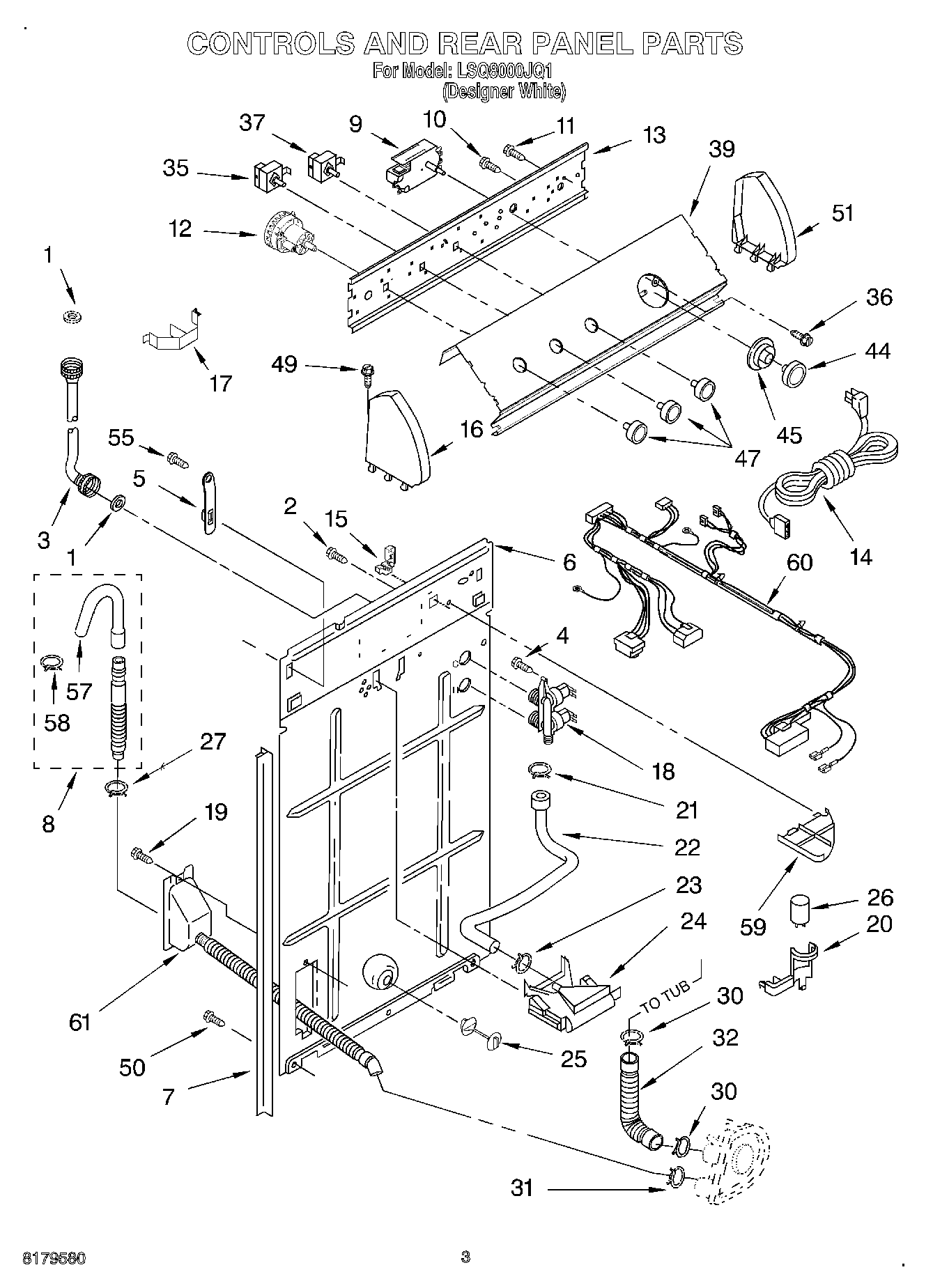

LSQ8000JQ1 02 – CONTROLS AND REAR PANEL

LSQ8000JQ1 02 – CONTROLS AND REAR PANEL

Written by

in

LSQ8000JQ1 02 – CONTROLS AND REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP3351614 Whirlpool Screw
3WP89503 Whirlpool Washer Fill Hose
4WP9740848 Whirlpool Dishwasher Screw
5WP8568314 Whirlpool Strap
6WP3357978 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285664 Whirlpool Drain Hose
8285666 Whirlpool Drain Hose 10'
8285702 Whirlpool Extensions
9WP3953553 Whirlpool Timer
103400073 Whirlpool Screw
11WP90767 Whirlpool Screw
12SWITCH-WL
13WP3948608 Whirlpool Bracket
14W10820044 Whirlpool Power Cord
15Strain Relief, Power Cord
17Clip, Harness & Pressure Hose
18285805 Whirlpool Washer Water Inlet Valve
20Clip, Capacitor
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WP8519200 Whirlpool Support Assembly
26CAPACITOR
27WP356138 Whirlpool Hose Clamp
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
353949185 Whirlpool Temperature Switch
36WP3400818 Whirlpool Screw
37W10851055 Whirlpool Cycle Switch
39Panel, Console
44W10807860 Whirlpool White Control Knob
45WP3957849 Whirlpool Timer Dial
47WP3957799 Whirlpool Knob
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51W10820038 Whirlpool Endcap
55WP488729 Whirlpool Refrigerator Door Screw
57WP3357027 Whirlpool Nozzle Assembly
58WP3357331 Whirlpool Clamp
59WPL 3348424
60Harness, Wiring
61WPW10358149 Whirlpool Hose
