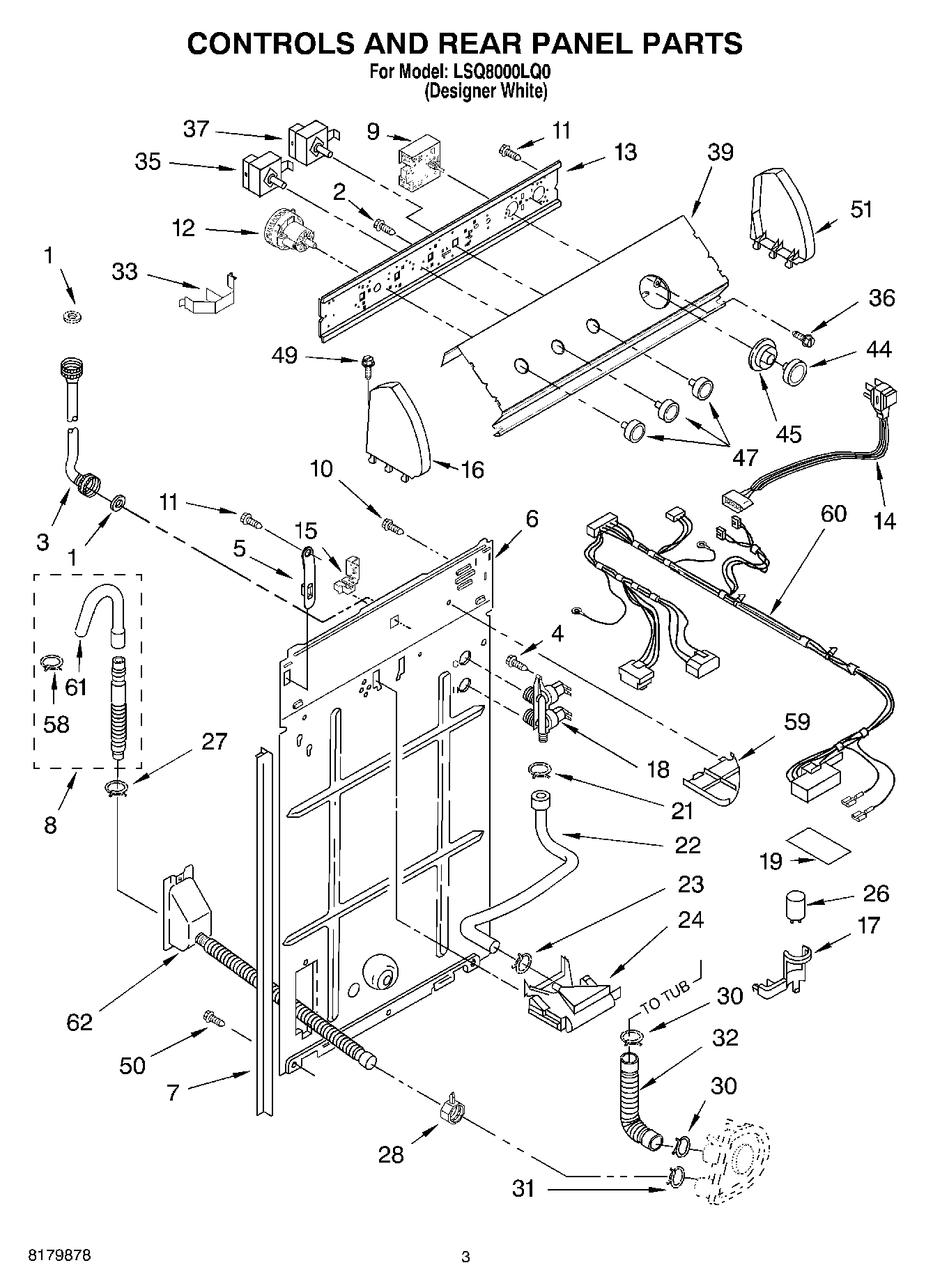

LSQ8000LQ0 02 – CONTROLS AND REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
23400073 Whirlpool Screw
3WP89503 Whirlpool Washer Fill Hose
4WP9740848 Whirlpool Dishwasher Screw
5WP8568314 Whirlpool Strap
6WP3357978 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285664 Whirlpool Drain Hose
8285666 Whirlpool Drain Hose 10'
8285702 Whirlpool Extensions
9WP3953553 Whirlpool Timer
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12SWITCH-WL
13WP3948608 Whirlpool Bracket
14W10820044 Whirlpool Power Cord
15Strain Relief, Power Cord
17Clip, Capacitor
18285805 Whirlpool Washer Water Inlet Valve
19Shield, Capacitor
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
26CAPACITOR
27WP356138 Whirlpool Hose Clamp
28Clamp, Hose
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Clip, Harness & Pressure Hose
35W10851055 Whirlpool Cycle Switch
36WP3400818 Whirlpool Screw
373949185 Whirlpool Temperature Switch
39Panel, Console
44W10807860 Whirlpool White Control Knob
45WP3957849 Whirlpool Timer Dial
47WP3957799 Whirlpool Knob
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51W10820038 Whirlpool Endcap
58WP3357331 Whirlpool Clamp
59WPL 3348424
60Harness, Wiring
61WP3357027 Whirlpool Nozzle Assembly
62WPW10358149 Whirlpool Hose
