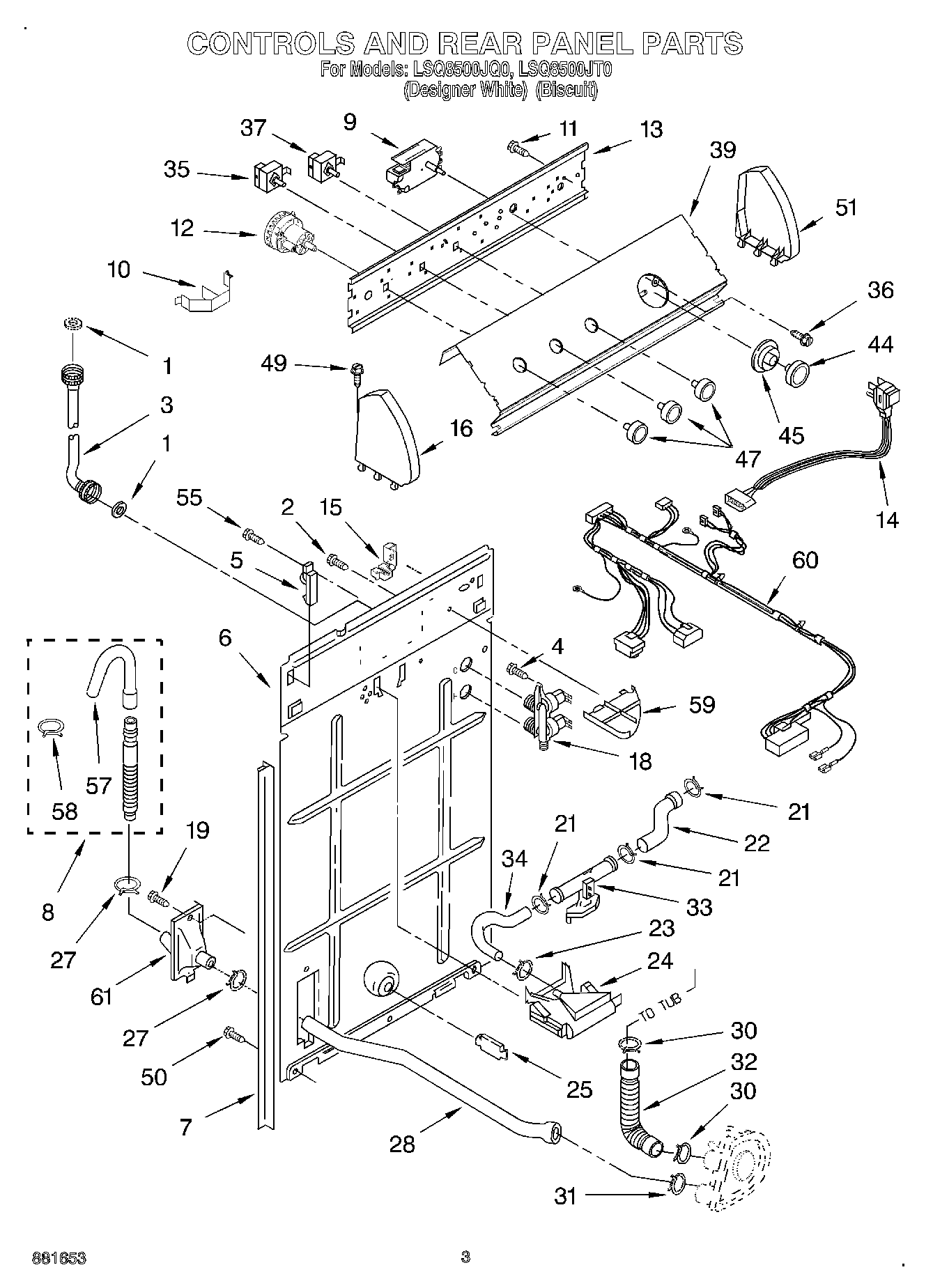

LSQ8500JT0 02 – CONTROLS AND REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP3351614 Whirlpool Screw
3WP89503 Whirlpool Washer Fill Hose
4WP9740848 Whirlpool Dishwasher Screw
5Hinge, Console (2)
6WP3357978 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285702 Whirlpool Extensions
8285664 Whirlpool Drain Hose
8285666 Whirlpool Drain Hose 10'
9Timer, Control (60 Hz.) (Motor Not A Service Part)
10Clip, Harness & Pressure Hose
11WP90767 Whirlpool Screw
12SWITCH-WL
13WP3948608 Whirlpool Bracket
14W10820044 Whirlpool Power Cord
15Strain Relief, Power Cord
16Cap, End (L.H.) (BIscuit)
18285805 Whirlpool Washer Water Inlet Valve
21WP596669 Whirlpool Hose Clamp
22WP3357319 Whirlpool Hose
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WP8519200 Whirlpool Support Assembly
28Hose, Pump To Drain
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Sensor-ETC-Inline
34WP3349365 Whirlpool Hose
35W10851055 Whirlpool Cycle Switch
36W10915367 Whirlpool Screw Assembly
37Switch, Water Temperature
39Panel, Console (Biscuit)
39Panel, Console (White)
44W10807860 Whirlpool White Control Knob
44WP3957822 Whirlpool Knob
45WP3957849 Whirlpool Timer Dial
45Dial, Timer (Biscuit)
473957797 Whirlpool Knob
47WP3957799 Whirlpool Knob
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51WPL 8271362
51W10820038 Whirlpool Endcap
55WP488729 Whirlpool Refrigerator Door Screw
57WP3357027 Whirlpool Nozzle Assembly
58WP356138 Whirlpool Hose Clamp
59WPL 3348424
60WPL 3953611
61WPW10358149 Whirlpool Hose
