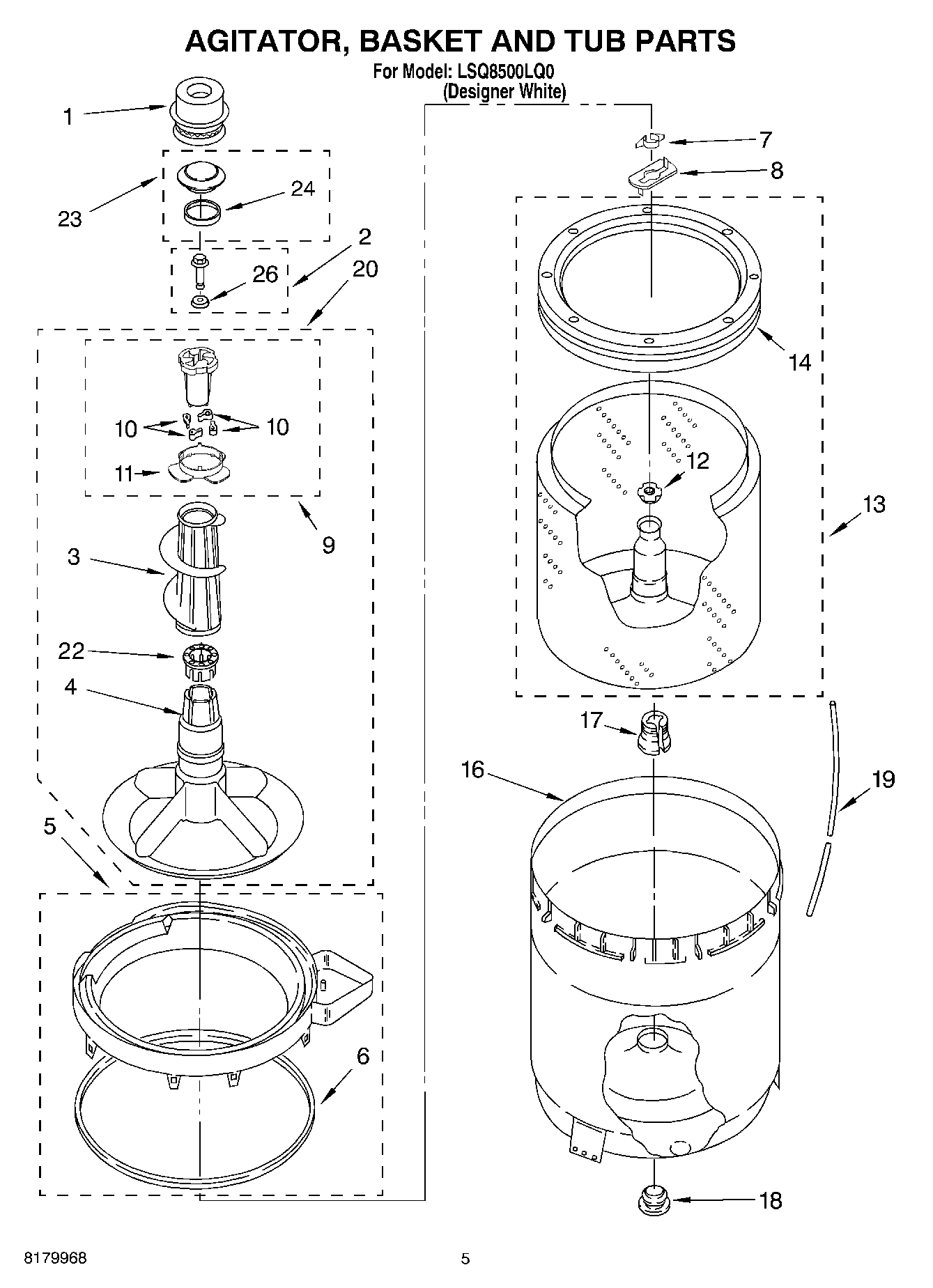

LSQ8500LQ0 03 – AGITATOR, BASKET AND TUB PARTS

Products

Position	Product
1	WP63594 Whirlpool Dispenser
2	WP358237 Whirlpool Agitator Bolt
3	WP3360824 Whirlpool Agitator Auger
4	WP389386 Whirlpool Agitator Assembly
5	W10880720 Whirlpool Tub Ring
6	WP3976308 Whirlpool Tub Seal
7	WP3354845 Whirlpool Clip
8	WP8543666 Whirlpool Washer
9	285748 Whirlpool Agitator Cam Kit
10	80040 Whirlpool Washer Agitator Dog Kit
11	WP3363661 Whirlpool Bearing Cam
12	WP21366 Whirlpool Spanner Nut
13	W10389328 Whirlpool Basket
14	WP387240 Whirlpool Balance Ring
16	63849 Whirlpool Outer Tub Primary Assembly
17	WP389140 Whirlpool Drive Block or Bell
18	W10814296 Whirlpool Washer Center Post Seal Gasket
19	WP353244 Whirlpool Hose
20	285727 Whirlpool Agitator Assembly
22	285587 Whirlpool Thrust Washer
23	WP3362061 Whirlpool Cap
24	WP358912 Whirlpool Gasket
26	WP3949550 Whirlpool Gasket Assembly
