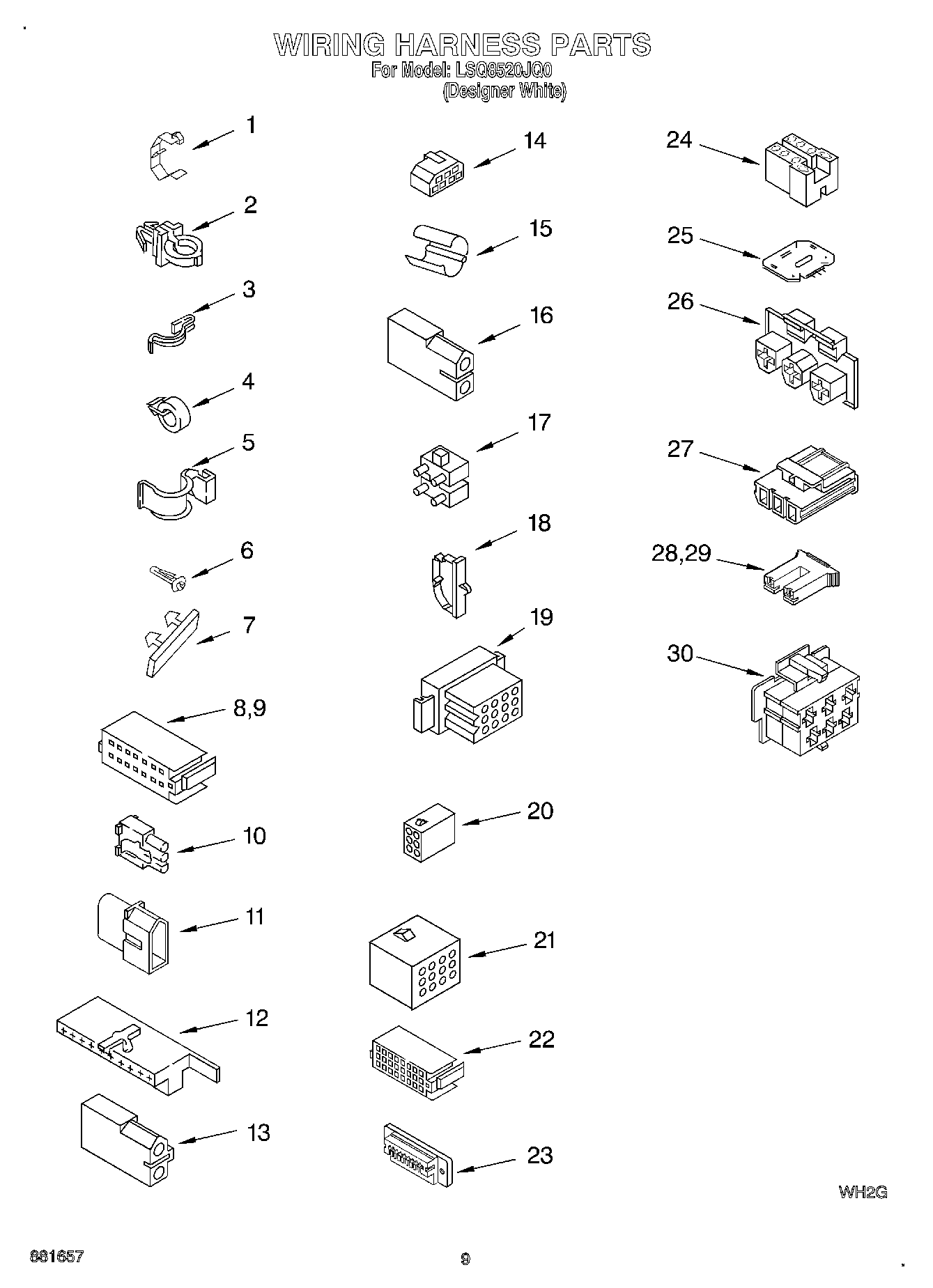

LSQ8520JQ0 06 – WIRING HARNESSadmin2025-04-26T11:15:36+00:00LSQ8520JQ0 06 – WIRING HARNESS
Products
| Position | Product |
|---|
| 1 | Clip, Harness |
| 2 | Clip, Harness |
| 3 | 8528351 Whirlpool Clip |
| 4 | 8559320 Whirlpool Clip |
| 5 | WP90016 Whirlpool Clip |
| 6 | Clip, Harness |
| 7 | WP389379 Whirlpool Retainer |
| 8 | Timer, Block Disconnect (White) |
| 9 | W10876590 Whirlpool Connector |
| 10 | WP62889 Whirlpool Washer Lid Switch Terminal Receptacle |
| 11 | 353424 Whirlpool Connector |
| 12 | WP62505 Whirlpool Connector |
| 13 | Block, Disconnect (Motor 3 Speed) (Use Term. 94613 Or 94614) |
| 14 | Block, Disconnect |
| 15 | Protector, Harness |
| 16 | Receptacle, Latching (2-Way) (Uses Terminal 94614) |
| 17 | Plug, Terminal (4-Way) (Power Cord) (Use M3 Screws) |
| 18 | Clip, Harness |
| 19 | Block, Disconnect (12-Way) (Timer) (Use Term. 94613) |
| 20 | Receptacle, (6-Way) (Use Term. 94613) |
| 21 | Plug, Terminal (12-Way) (Use Term. 94613 Or 94614) |
| 22 | Timer, Block Disconnect (Black) (Amp) (Use Term. 3369365) |
| 23 | Connector, Etc |
| 24 | Connector, Relay (Use Term. 308569) |
| 25 | E.T.C. Control |
| 26 | WP2172937 Whirlpool Connector |
| 27 | WP3360056 Whirlpool Connector |
| 28 | 3354925 Whirlpool Connector |
| 29 | WPL 3354926 |
| 30 | WPL 3948615 |
