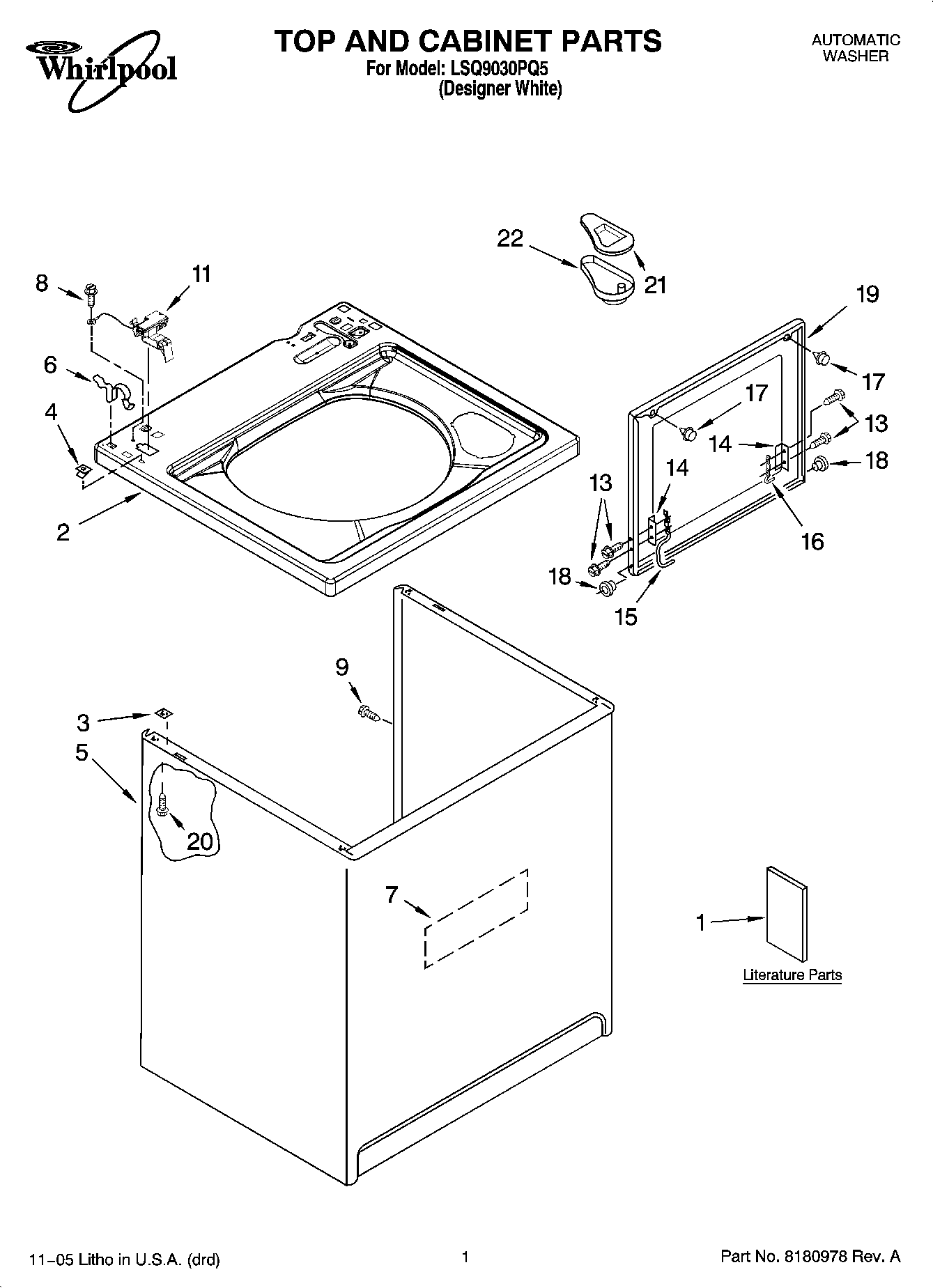

LSQ9030PQ5 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Feature Sheet
1	Manual, Washer Do-It-Yourself
1	Wiring Diagram
1	Installation Instructions
1	Use & Care Guide
1	Energy Guide
2	Top
3	WP62750 Whirlpool Spacer
4	WP357213 Whirlpool Hinge Stopper
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
7	Cabinet – Sound Damper
8	WP3351614 Whirlpool Screw
9	WP308685 Whirlpool Microwave Screw
11	WP8318084 Whirlpool Washer Lid Switch Assembly
13	SCREW
14	WP21097 Whirlpool Pad
15	Hinge, Lid (L.H.)
16	WP91770 Whirlpool Hinge
17	WP9724509 Whirlpool Bumper
18	Bearing, Lid Hinge (2)
19	Lid (White)
20	WP3390631 Whirlpool Screw
21	Cover, Dispenser
22	Dispenser, Bleach
