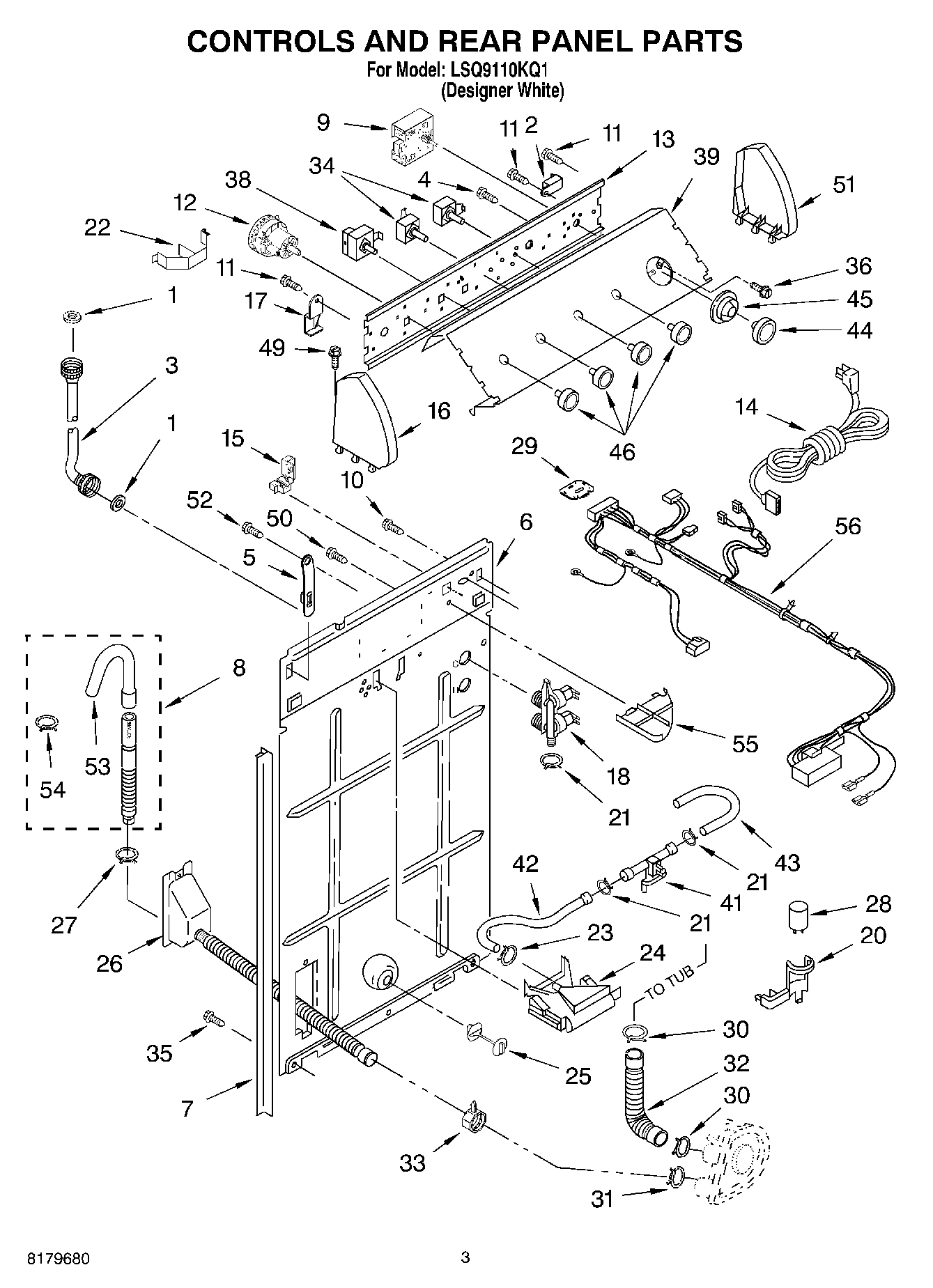

LSQ9110KQ1 02 – CONTROLS AND REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP694419 Whirlpool Buzzer Adjuster
3	WP89503 Whirlpool Washer Fill Hose
4	3400073 Whirlpool Screw
5	WP8568314 Whirlpool Strap
6	WP3357978 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	285702 Whirlpool Extensions
8	285664 Whirlpool Drain Hose
8	285666 Whirlpool Drain Hose 10'
9	WP3954071 Whirlpool Timer
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10335056 Whirlpool Water Level Pressure Switch
13	WP3948608 Whirlpool Bracket
14	W10820044 Whirlpool Power Cord
15	Strain Relief, Power Cord
17	Retainer, Harness
18	285805 Whirlpool Washer Water Inlet Valve
20	Clip, Capacitor
21	WP596669 Whirlpool Hose Clamp
22	Clip, Harness & Pressure Hose
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	WP8519200 Whirlpool Support Assembly
26	WPW10358149 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
28	WP8572720 Whirlpool Capacitor
29	E.T.C. Control
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Clamp, Hose
34	WPW10168257 Whirlpool Cycle Switch
35	WP3390631 Whirlpool Screw
36	WP3400064 Whirlpool Screw
38	Switch, Temperature
39	Panel, Console (White)
41	Sensor-ETC-Inline
42	WP3349365 Whirlpool Hose
43	WP3357319 Whirlpool Hose
44	WP3364293 Whirlpool Timer Knob
45	WP3957849 Whirlpool Timer Dial
46	WP3957799 Whirlpool Knob
49	WP388326 Whirlpool Screw
50	WP9740848 Whirlpool Dishwasher Screw
51	W10820038 Whirlpool Endcap
52	WP488729 Whirlpool Refrigerator Door Screw
53	WP3357027 Whirlpool Nozzle Assembly
54	WP3357331 Whirlpool Clamp
55	WPL 3348424
56	WPL 3955723
