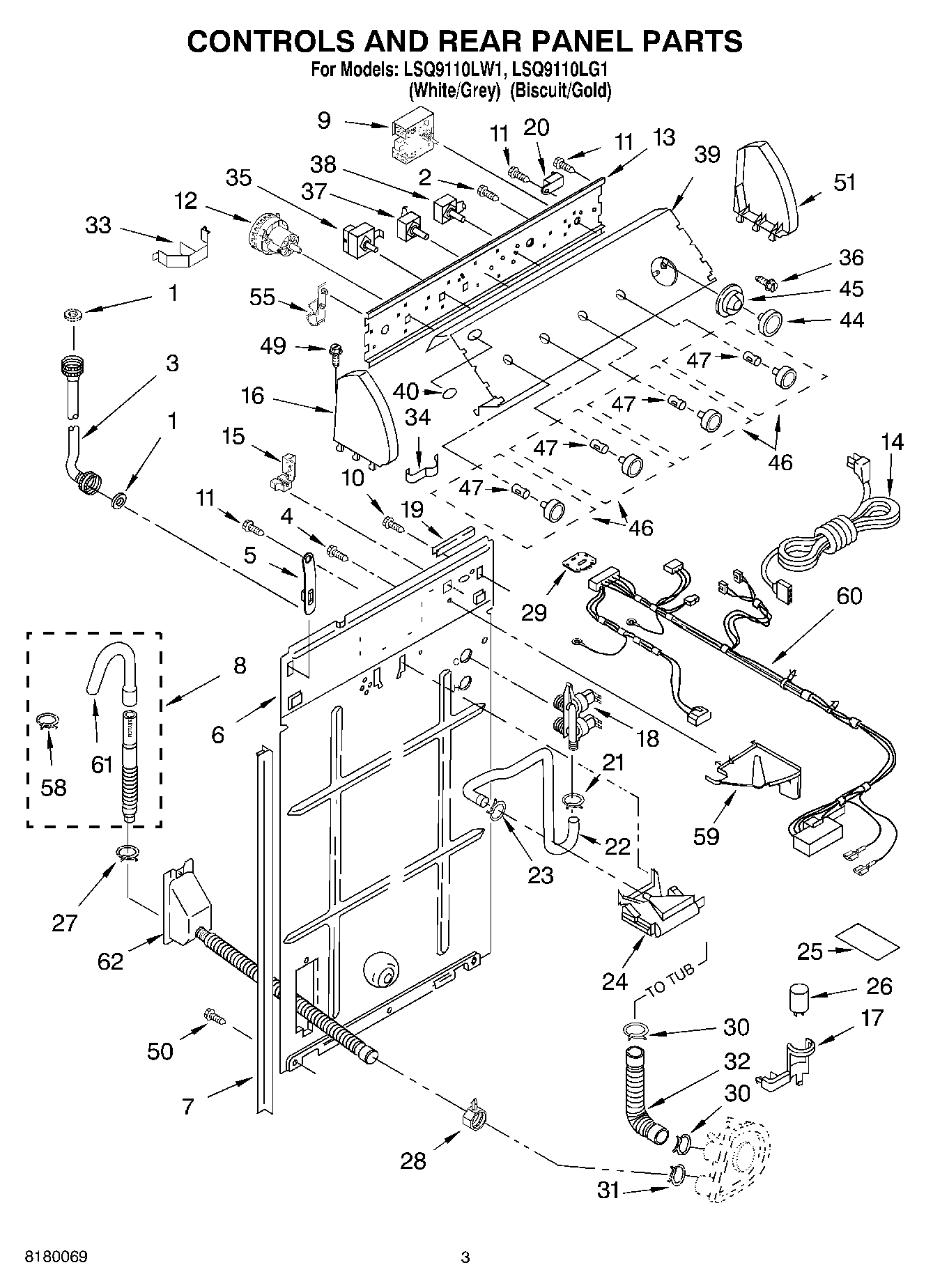

LSQ9110LW1 02 – CONTROLS AND REAR PANEL PARTS

LSQ9110LW1 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

LSQ9110LW1 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
23400073 Whirlpool Screw
3WP89503 Whirlpool Washer Fill Hose
4WP9740848 Whirlpool Dishwasher Screw
5WP8568314 Whirlpool Strap
6WP3357978 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285702 Whirlpool Extensions
8285664 Whirlpool Drain Hose
8285666 Whirlpool Drain Hose 10'
9WP8541270 Whirlpool Timer
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12W10337780 Whirlpool Pressure Switch
13WP3948608 Whirlpool Bracket
14Cord, Power (Includes Illus. 15)
15Strain Relief, Power Cord
16Cap, End (L.H.) (BIscuit)
17Clip, Capacitor
18WP3979346 Whirlpool Water Inlet Valve
19Edge Protector
20WP694419 Whirlpool Buzzer Adjuster
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25Shield, Capacitor
26WP8572720 Whirlpool Capacitor
27WP356138 Whirlpool Hose Clamp
28Clamp, Hose
29Control, ATC
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Clip, Harness & Pressure Hose
348528351 Whirlpool Clip
35W10168360 Whirlpool Temperature Switch
36WP3400818 Whirlpool Screw
37WPW10168257 Whirlpool Cycle Switch
38W10851055 Whirlpool Cycle Switch
39Panel, Console (Gold (Includes Item 40))
39Panel, Console (Grey (Includes Item 40))
40Medallion
44WP8538949 Whirlpool Knob
44Knob, Timer ((For LSQ9010LG0))
45WP8538955 Whirlpool Dial
45WPL 8538956
46WPL 8538958
46KNOB
47WP8536939 Whirlpool Spring Clip
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51WPL 8271362
51W10820038 Whirlpool Endcap
55Retainer, Harness
58WP3357331 Whirlpool Clamp
59WPL 8539874
60WPL 3956523
61WP3357027 Whirlpool Nozzle Assembly
62WPW10358149 Whirlpool Hose
