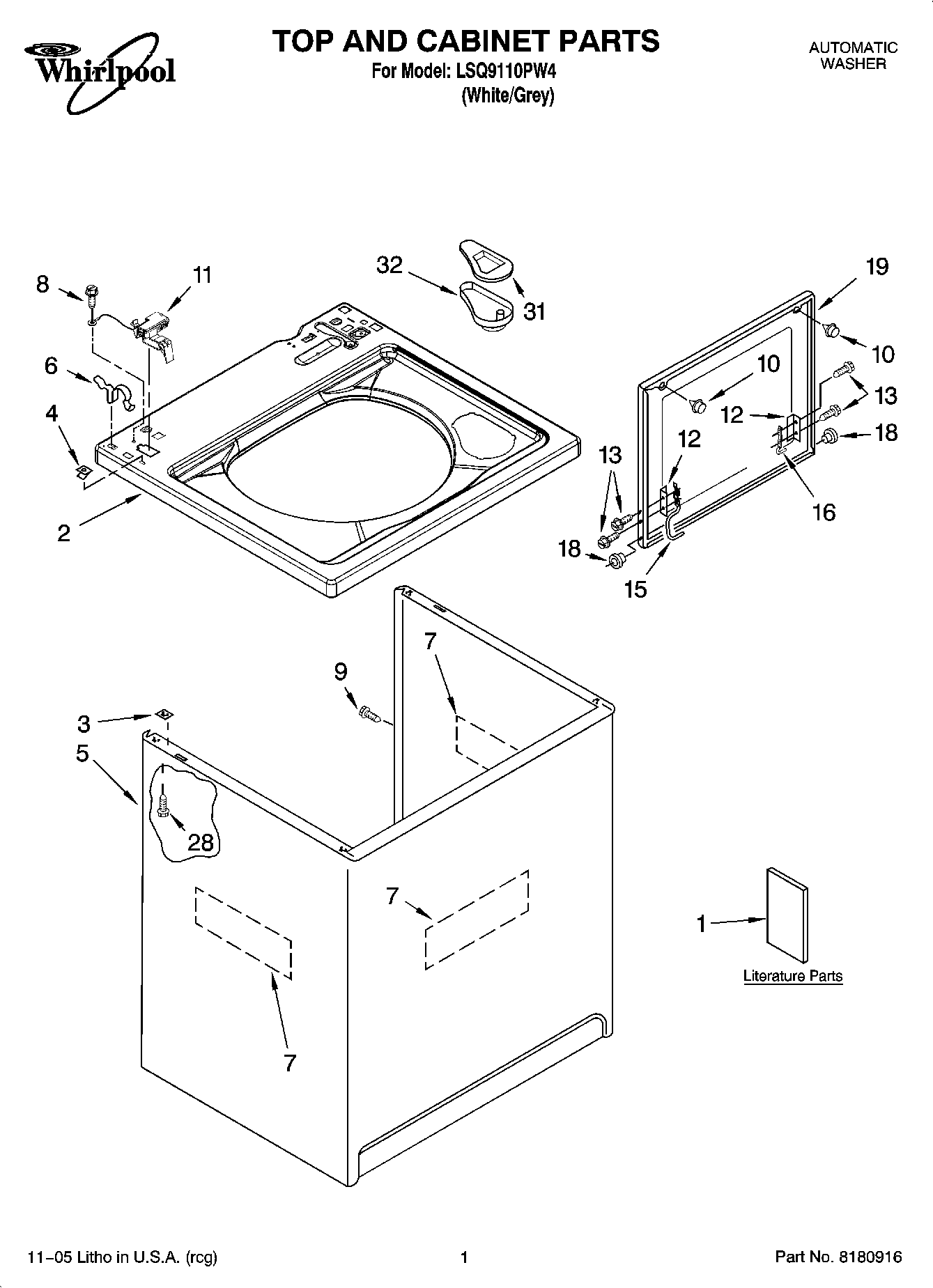

LSQ9110PW4 01 – TOP AND CABINET PARTS

Written by

Products

Position	Product
1	Wiring Diagram
1	Manual, Washer Do-It-Yourself
1	Feature Sheet
1	Installation Instructions
1	Use & Care Guide
1	Energy Guide
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2	Top
3	WP62750 Whirlpool Spacer
4	WP357213 Whirlpool Hinge Stopper
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
7	Cabinet – Sound Damper
8	WP3351614 Whirlpool Screw
9	WP308685 Whirlpool Microwave Screw
10	WP9724509 Whirlpool Bumper
11	WP8318084 Whirlpool Washer Lid Switch Assembly
12	WP21097 Whirlpool Pad
13	SCREW
15	Hinge, Lid (L.H.)
16	WP91770 Whirlpool Hinge
18	Bearing, Lid Hinge (2)
19	Lid (White)
28	WP3390631 Whirlpool Screw
31	Cover, Dispenser
32	Dispenser, Bleach
