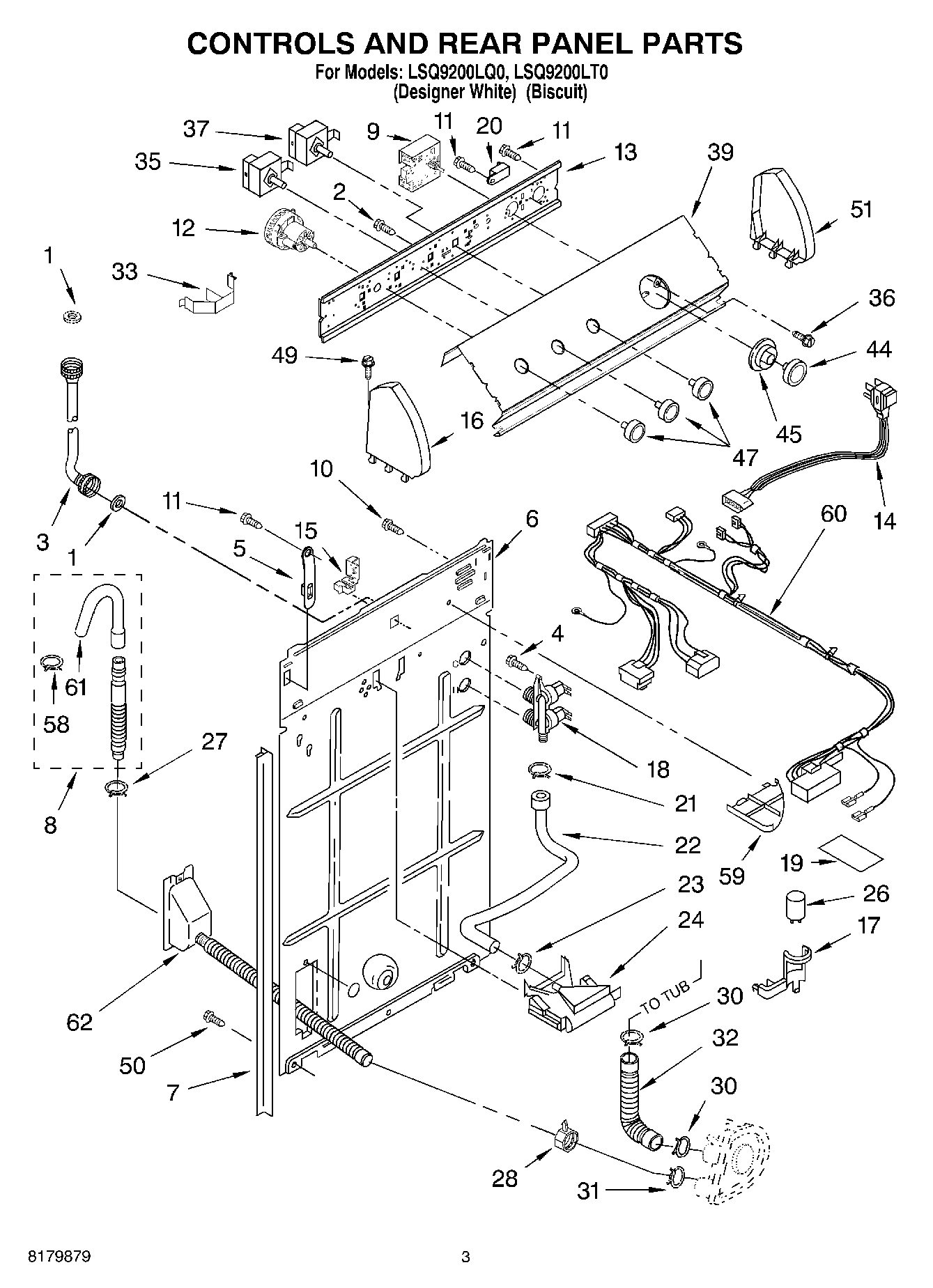

LSQ9200LT0 02 – CONTROLS AND REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
2	3400073 Whirlpool Screw
3	WP89503 Whirlpool Washer Fill Hose
4	WP9740848 Whirlpool Dishwasher Screw
5	WP8568314 Whirlpool Strap
6	WP3357978 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	285664 Whirlpool Drain Hose
8	285666 Whirlpool Drain Hose 10'
8	285702 Whirlpool Extensions
9	WP3951702 Whirlpool Timer
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10337780 Whirlpool Pressure Switch
13	WP3948608 Whirlpool Bracket
14	W10820044 Whirlpool Power Cord
15	Strain Relief, Power Cord
16	Cap, End (L.H.) (BIscuit)
17	Clip, Capacitor
18	285805 Whirlpool Washer Water Inlet Valve
19	Shield, Capacitor
20	WP694419 Whirlpool Buzzer Adjuster
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
26	CAPACITOR
27	WP356138 Whirlpool Hose Clamp
28	Clamp, Hose
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Clip, Harness & Pressure Hose
35	Switch, Water Temperature
36	WP3400818 Whirlpool Screw
37	WP8528333 Whirlpool Cycle Switch
39	Panel, Console (White)
39	Panel, Console (Biscuit)
44	WP3957822 Whirlpool Knob
44	W10807860 Whirlpool White Control Knob
45	Dial, Timer (Biscuit)
45	WP3957849 Whirlpool Timer Dial
47	WP3957799 Whirlpool Knob
47	3957797 Whirlpool Knob
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	WPL 8271362
51	W10820038 Whirlpool Endcap
58	WP3357331 Whirlpool Clamp
59	WPL 3348424
60	WPL 3955492
61	WP3357027 Whirlpool Nozzle Assembly
62	WPW10358149 Whirlpool Hose
