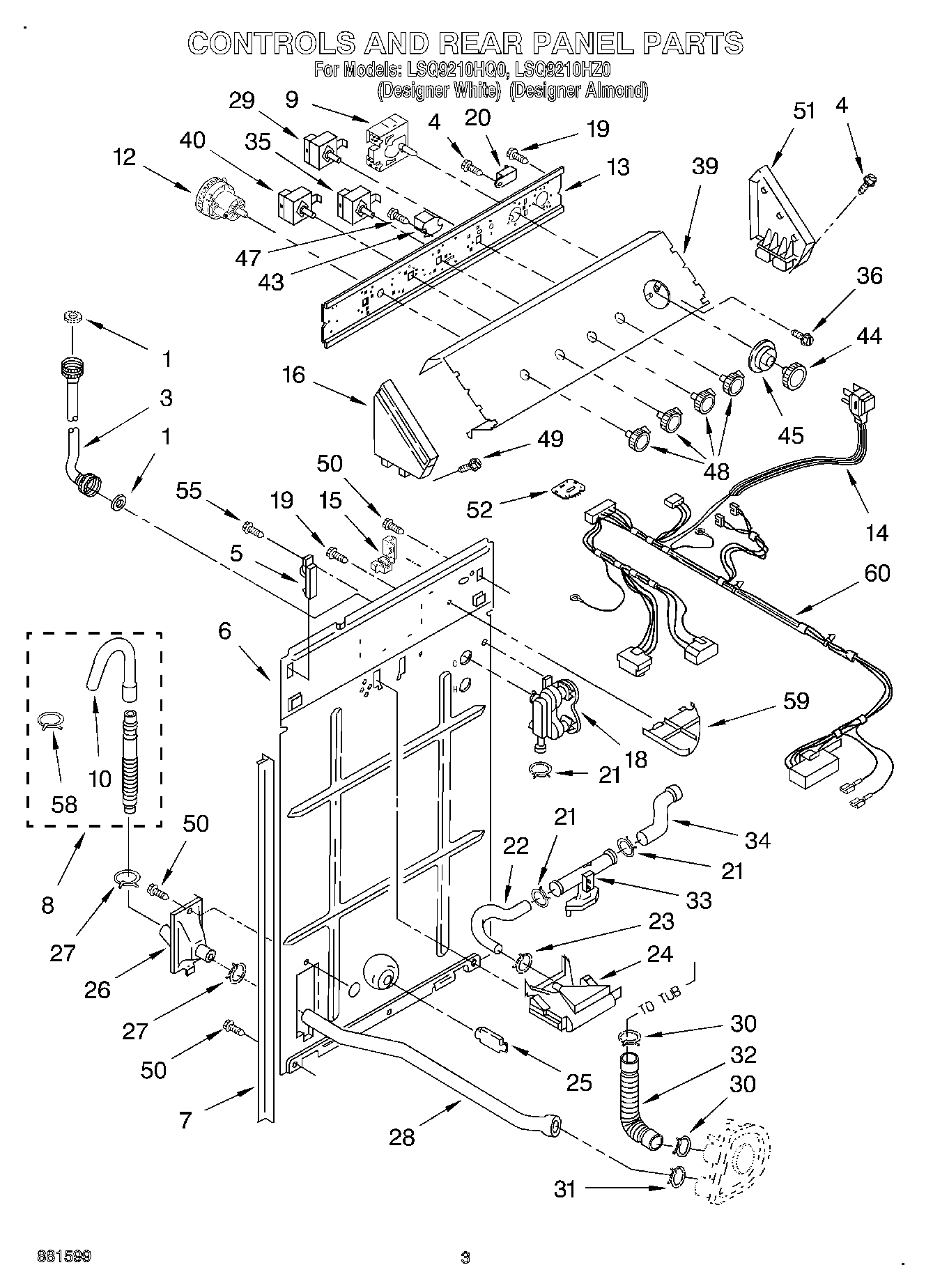

LSQ9210HQ0 02 – CONTROL AND REAR PANEL

LSQ9210HQ0 02 – CONTROL AND REAR PANEL

Written by

in

LSQ9210HQ0 02 – CONTROL AND REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
3WP89503 Whirlpool Washer Fill Hose
4WP90767 Whirlpool Screw
5Hinge, Console (2)
6WP3357978 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285666 Whirlpool Drain Hose 10'
8285664 Whirlpool Drain Hose
8285702 Whirlpool Extensions
9Timer, Control (60 Hz.) (Motor Not A Service Part)
10WP3357027 Whirlpool Nozzle Assembly
12W10337780 Whirlpool Pressure Switch
13WP3948608 Whirlpool Bracket
14W10820044 Whirlpool Power Cord
15Strain Relief, Power Cord
16Cap, End (L.H.)
16Cap, End (L.H.) (Almond)
18285805 Whirlpool Washer Water Inlet Valve
19WP3351614 Whirlpool Screw
20WP694419 Whirlpool Buzzer Adjuster
21WP596669 Whirlpool Hose Clamp
22WP3357319 Whirlpool Hose
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WP8519200 Whirlpool Support Assembly
26WPW10358149 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
28Hose, Pump To Drain
29W10851055 Whirlpool Cycle Switch
30WP616099 Whirlpool Clamp
31WP371502 Whirlpool Clamp
32285871 Whirlpool Hose and Clamp
33Sensor-ETC-Inline
34WP3349365 Whirlpool Hose
35WPW10168257 Whirlpool Cycle Switch
36W10915367 Whirlpool Screw Assembly
39Panel, Console (For Designer White Model)
39Panel, Console (For Designer Almond Model)
40Switch, Water Temperature
43697811 Whirlpool Relay
44WP3957823 Whirlpool Knob
44W10807860 Whirlpool White Control Knob
45Dial, Timer (Almond)
45WP3957841 Whirlpool Dial
47WP3388228 Whirlpool Screw
48WP3957796 Whirlpool Knob
483957797 Whirlpool Knob
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51Cap, End (R.H.) (Almond)
51Cap, End (R.H.)
52E.T.C. Control
55WP308685 Whirlpool Microwave Screw
58WP3357331 Whirlpool Clamp
59WPL 3348424
60WPL 3953612
