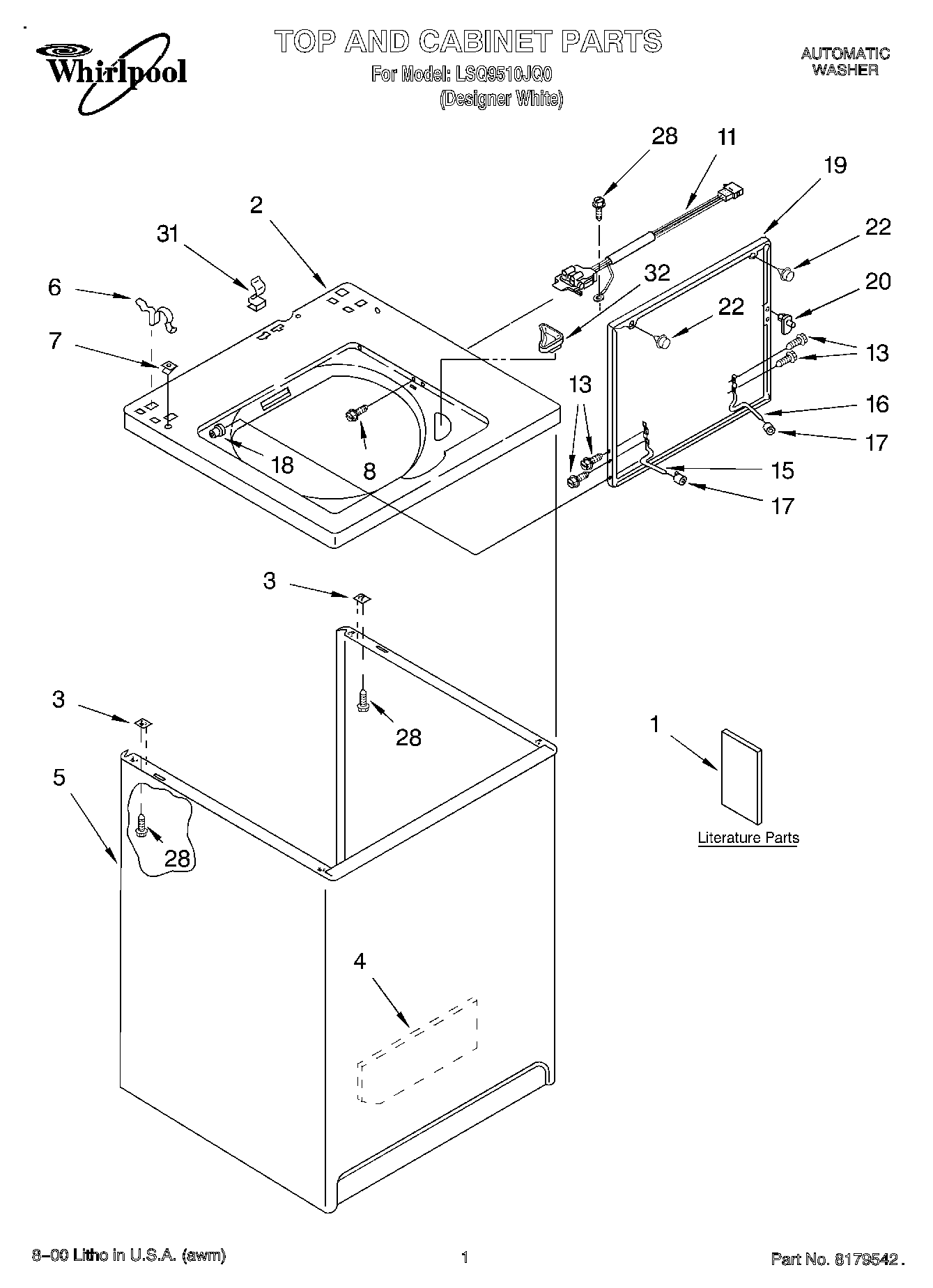

LSQ9510JQ0 01 – TOP AND CABINET, LITERATURE

LSQ9510JQ0 01 – TOP AND CABINET, LITERATURE

Written by

in

LSQ9510JQ0 01 – TOP AND CABINET, LITERATURE

Products

PositionProduct
Manual, (Washer) Do-It-Yourself
1Literature Parts (Use & Care Guide) (Energy Guide)
1Literature Parts (Use & Care Guide) (French)
1Literature Parts (Use & Care Guide) (Wiring Diagram)
1Literature Parts (Use & Care Guide) (English)
1LITERATURE PARTS
1Literature Parts (Installation Instructions) (French)
1Literature Parts (Installation Instructions) (English)
2Top (White)
3WP62750 Whirlpool Spacer
4Cabinet-Sound Damper
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7WP357213 Whirlpool Hinge Stopper
8WP3356311 Whirlpool Screw
113949247V Whirlpool Washer Lid Switch Assembly
13SCREW
15WP54584 Whirlpool Hinge
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid
20WP358684 Whirlpool Strike Assembly
22WP9724509 Whirlpool Bumper
28WP3390631 Whirlpool Screw
31WP90016 Whirlpool Clip
32WP3362952 Whirlpool Bezel
