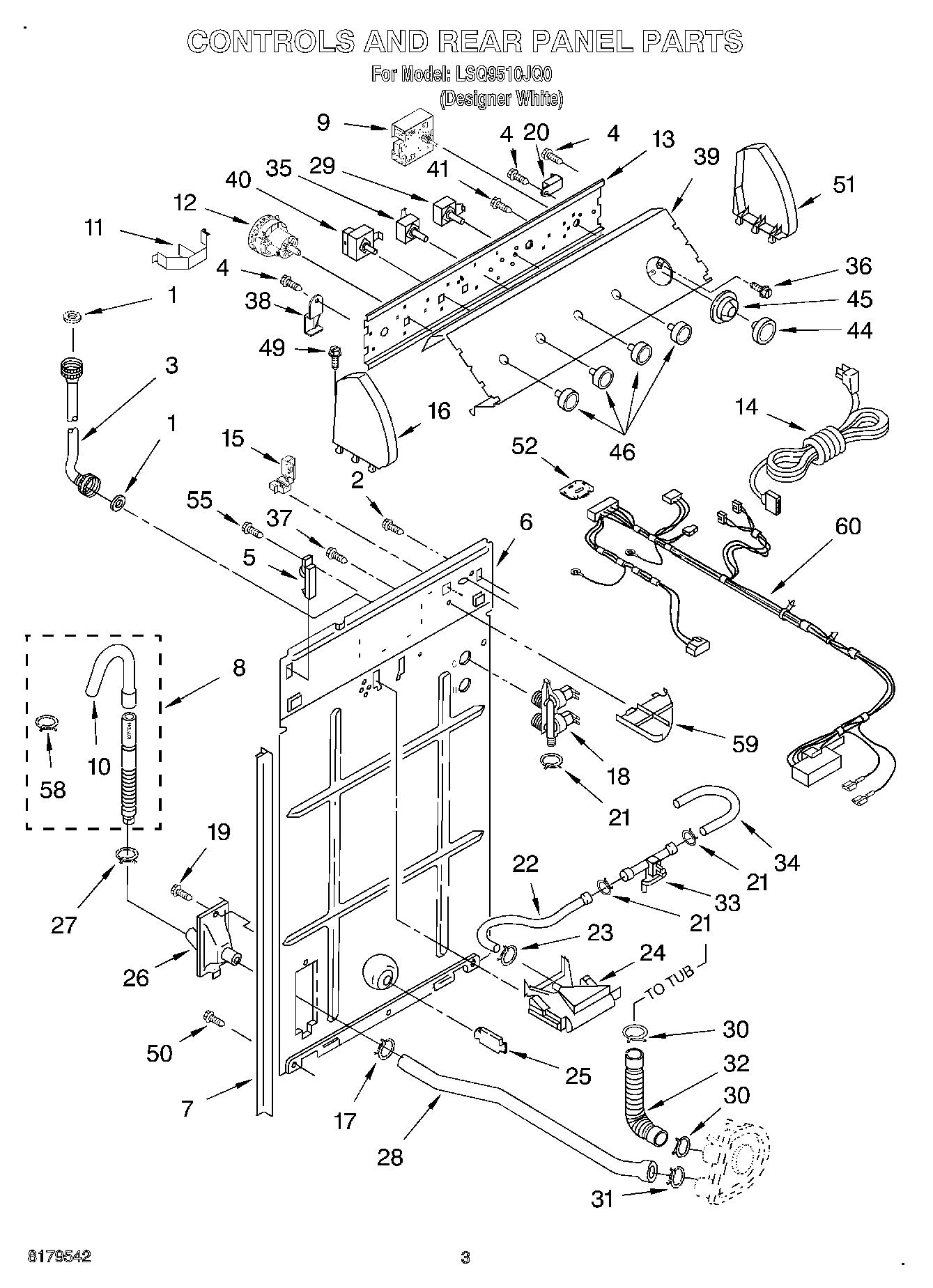

LSQ9510JQ0 02 – CONTROLS AND REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP3351614 Whirlpool Screw
3	WP89503 Whirlpool Washer Fill Hose
4	WP90767 Whirlpool Screw
5	Hinge, Console (2)
6	WP3357978 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	285702 Whirlpool Extensions
8	285664 Whirlpool Drain Hose
8	285666 Whirlpool Drain Hose 10'
9	WP3954071 Whirlpool Timer
10	WP3357027 Whirlpool Nozzle Assembly
11	Clip, Harness & Pressure Hose
12	W10337780 Whirlpool Pressure Switch
13	WP3948608 Whirlpool Bracket
14	W10820044 Whirlpool Power Cord
15	Strain Relief, Power Cord
18	285805 Whirlpool Washer Water Inlet Valve
20	WP694419 Whirlpool Buzzer Adjuster
21	WP596669 Whirlpool Hose Clamp
22	WP3349365 Whirlpool Hose
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	WP8519200 Whirlpool Support Assembly
26	WPW10358149 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
28	Hose, Pump To Drain
29	WPW10168257 Whirlpool Cycle Switch
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Sensor-ETC-Inline
34	WP3357319 Whirlpool Hose
35	Switch, Cycle
36	WP3400064 Whirlpool Screw
37	WP9740848 Whirlpool Dishwasher Screw
38	Retainer, Harness
39	Panel, Console
40	Switch, Water Temperature
41	3400073 Whirlpool Screw
44	WP3364293 Whirlpool Timer Knob
45	WP3957849 Whirlpool Timer Dial
46	WP3957799 Whirlpool Knob
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	W10820038 Whirlpool Endcap
52	E.T.C. Control
55	WP488729 Whirlpool Refrigerator Door Screw
58	WP3357331 Whirlpool Clamp
59	WPL 3348424
60	WPL 3954387
