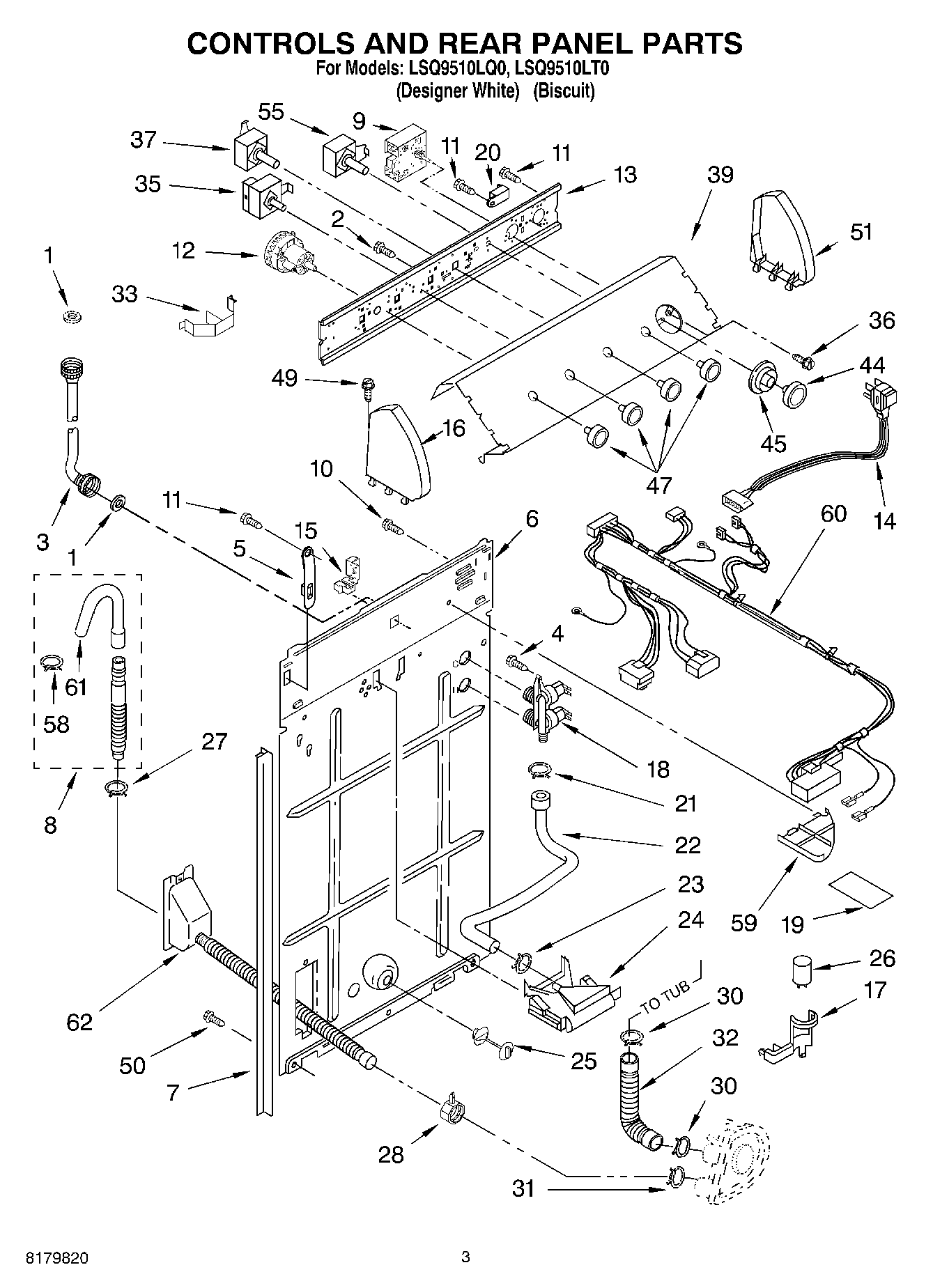

LSQ9510LT0 02 – CONTROLS AND REAR PANEL

LSQ9510LT0 02 – CONTROLS AND REAR PANEL

Written by

in

LSQ9510LT0 02 – CONTROLS AND REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
23400073 Whirlpool Screw
3WP89503 Whirlpool Washer Fill Hose
4WP9740848 Whirlpool Dishwasher Screw
5WP8568314 Whirlpool Strap
6WP3357978 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285702 Whirlpool Extensions
8285664 Whirlpool Drain Hose
8285666 Whirlpool Drain Hose 10'
9WP3951702 Whirlpool Timer
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12W10335056 Whirlpool Water Level Pressure Switch
13WP3948608 Whirlpool Bracket
14W10820044 Whirlpool Power Cord
15Strain Relief, Power Cord
16Cap, End (L.H.) (BIscuit)
17Clip, Capacitor
18285805 Whirlpool Washer Water Inlet Valve
19Shield, Capacitor
20WP694419 Whirlpool Buzzer Adjuster
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WP8519200 Whirlpool Support Assembly
26CAPACITOR
27WP356138 Whirlpool Hose Clamp
28Clamp, Hose
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Clip, Harness & Pressure Hose
35WPW10168256 Whirlpool Temperature Switch
36WP3400818 Whirlpool Screw
37WPW10168257 Whirlpool Cycle Switch
39Panel, Console (Biscuit)
39Panel, Console (White)
44W10807860 Whirlpool White Control Knob
44WP3957822 Whirlpool Knob
45Dial, Timer (Biscuit)
45WP3957849 Whirlpool Timer Dial
47WP3957799 Whirlpool Knob
473957797 Whirlpool Knob
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51W10820038 Whirlpool Endcap
51WPL 8271362
55W10851055 Whirlpool Cycle Switch
58WP3357331 Whirlpool Clamp
59WPL 3348424
60WPL 3956007
61WP3357027 Whirlpool Nozzle Assembly
62WPW10358149 Whirlpool Hose
