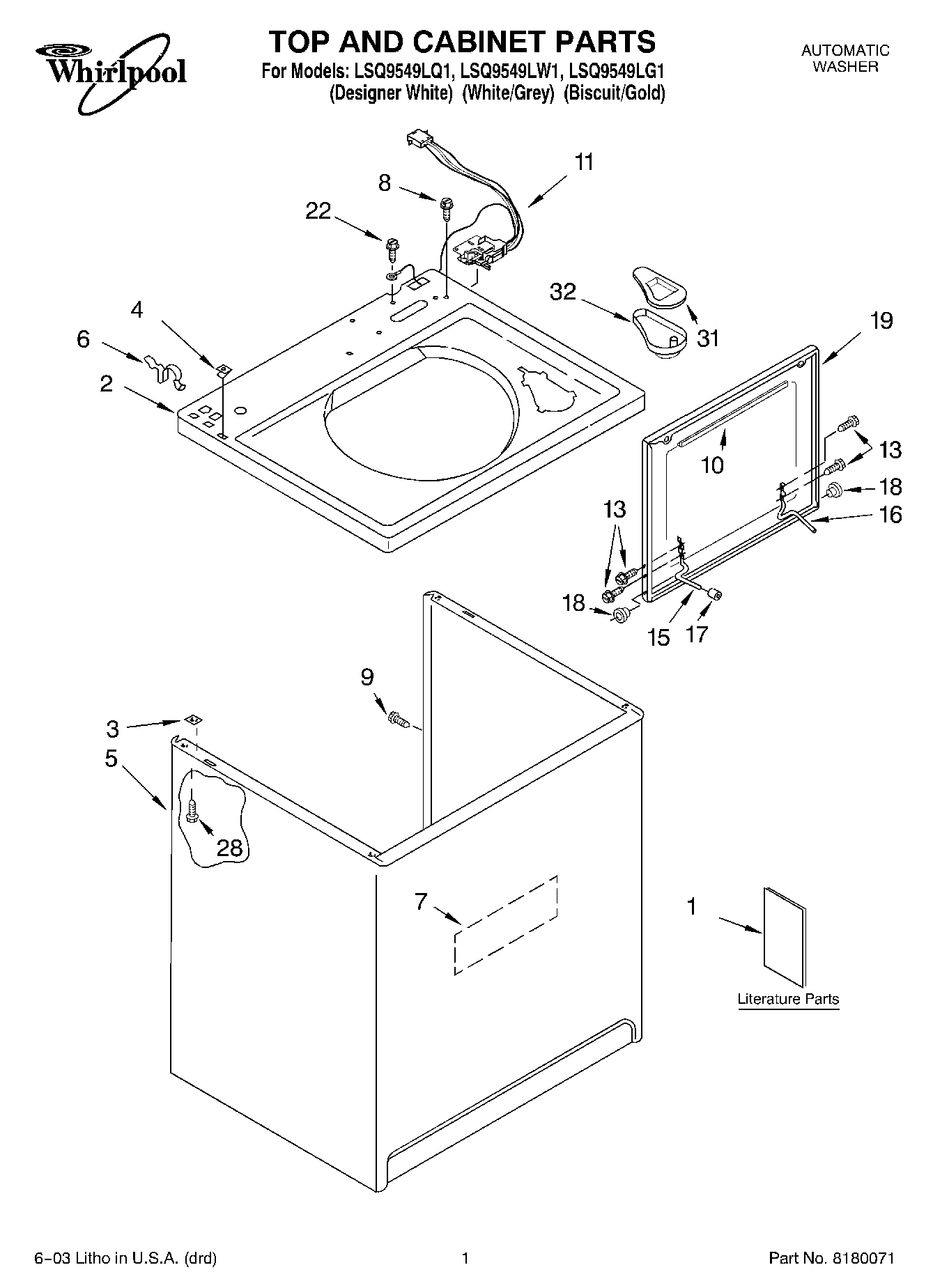

LSQ9549LW1 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Literature Parts (Energy Guide)
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Feature Sheet)
1	Literature Parts (Installation Instructions)
1	Literature Parts (Use & Care Guide)
1	Manual, (Washer) Do-It-Yourself
2	Top (Biscuit)
2	Top (White)
3	WP62750 Whirlpool Spacer
4	WP357213 Whirlpool Hinge Stopper
5	63424 Whirlpool Cabinet Assembly
5	Cabinet (Biscuit)
6	WP62780 Whirlpool Cabinet Clip
7	Cabinet - Sound Damper
8	Screw, Lid Switch (2)
9	WP308685 Whirlpool Microwave Screw
10	Seal, Lid
11	WP8054980 Whirlpool Lid Switch Assembly
13	SCREW
15	Hinge, Lid (L.H.)
16	Hinge, Lid (R.H.)
17	Bumper, Lid Hinge
18	Bearing, Lid Hinge (2)
19	Lid (White)
19	Lid (Biscuit)
22	WP3351614 Whirlpool Screw
28	WP3390631 Whirlpool Screw
31	Cover, Dispenser
32	Dispenser, Bleach
