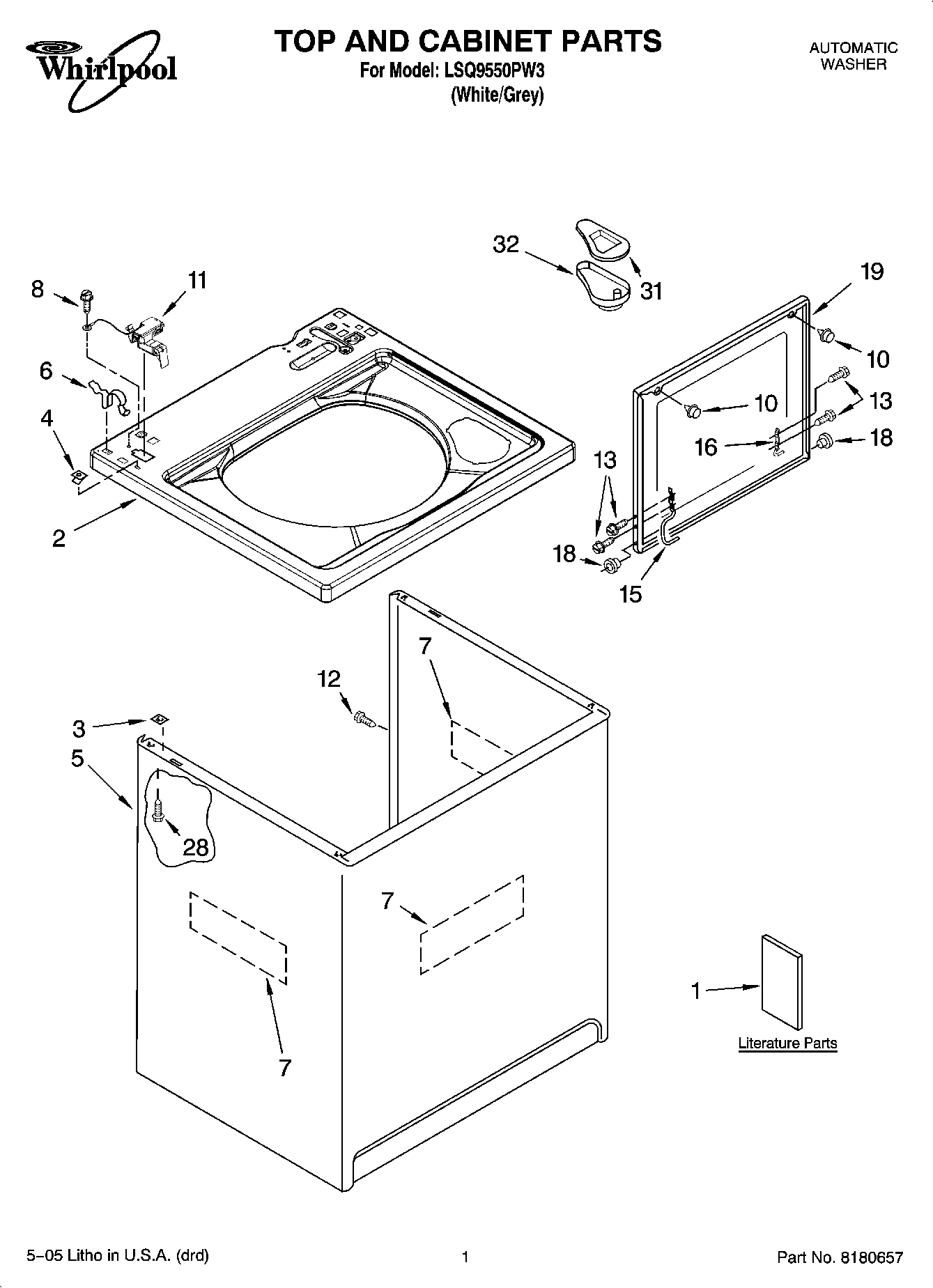

LSQ9550PW3 01 – TOP AND CABINET PARTS

Written by

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Use & Care Guide
1	Feature Sheet
1	Manual, Washer Do-It-Yourself
1	Installation Instructions
1	Wiring Diagram
1	Energy Guide
2	Top
3	WP62750 Whirlpool Spacer
4	WP357213 Whirlpool Hinge Stopper
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
7	Cabinet – Sound Damper
8	WP3351614 Whirlpool Screw
10	WP9724509 Whirlpool Bumper
11	WP8318084 Whirlpool Washer Lid Switch Assembly
12	WP308685 Whirlpool Microwave Screw
13	SCREW
15	Hinge, Lid (L.H.)
16	WP91770 Whirlpool Hinge
18	Bearing, Lid Hinge (2)
19	Lid (White)
28	WP3390631 Whirlpool Screw
31	Cover, Dispenser
32	Dispenser, Bleach
