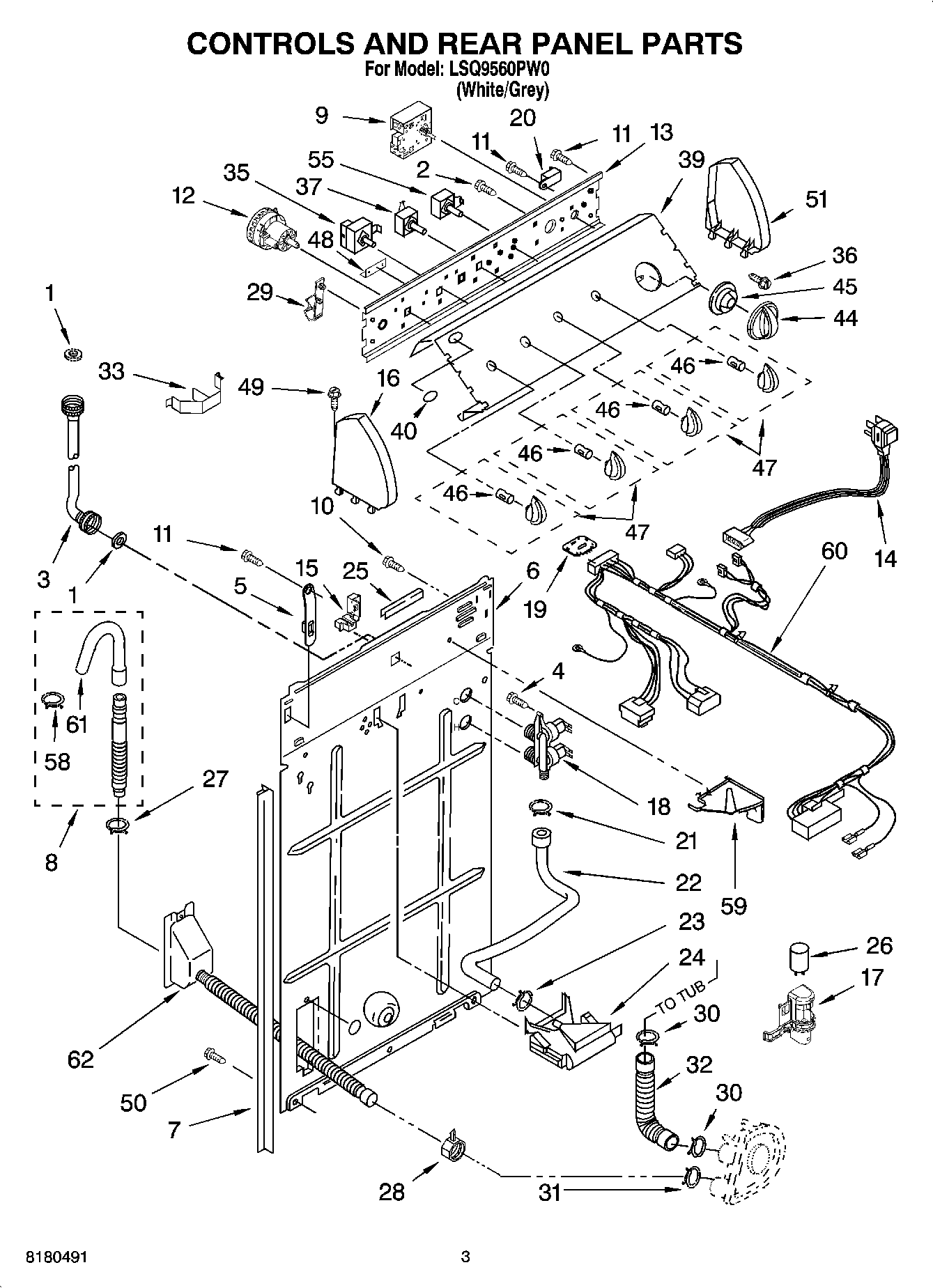

LSQ9560PW0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	3400073 Whirlpool Screw
3	WP89503 Whirlpool Washer Fill Hose
4	WP9740848 Whirlpool Dishwasher Screw
5	WP8568314 Whirlpool Strap
6	WP3357978 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	285666 Whirlpool Drain Hose 10'
8	285702 Whirlpool Extensions
8	285664 Whirlpool Drain Hose
9	WP8557301 Whirlpool Timer
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10335056 Whirlpool Water Level Pressure Switch
13	Bracket, Control
14	Cord, Power (Includes Illus. 15)
15	Strain Relief, Power Cord
17	Clip, Capacitor
18	WP3979346 Whirlpool Water Inlet Valve
19	Control, ATC
20	WP694419 Whirlpool Buzzer Adjuster
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	Edge Protector
26	CAPACITOR
27	WP356138 Whirlpool Hose Clamp
28	Clamp, Hose
29	Retainer, Harness
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Clip, Harness & Pressure Hose
35	W10168360 Whirlpool Temperature Switch
36	WP3400818 Whirlpool Screw
37	WPW10168257 Whirlpool Cycle Switch
39	Panel, Console
40	WPL 3400985
44	Kn
45	WP8544947 Whirlpool Dial
46	WP8536939 Whirlpool Spring Clip
47	WPL 8544937
48	Shield, ATC
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	W10820038 Whirlpool Endcap
55	W10851055 Whirlpool Cycle Switch
58	WP3357331 Whirlpool Clamp
59	WPL 8539874
60	WPL 3957016
61	WP3357027 Whirlpool Nozzle Assembly
62	WPW10358149 Whirlpool Hose
