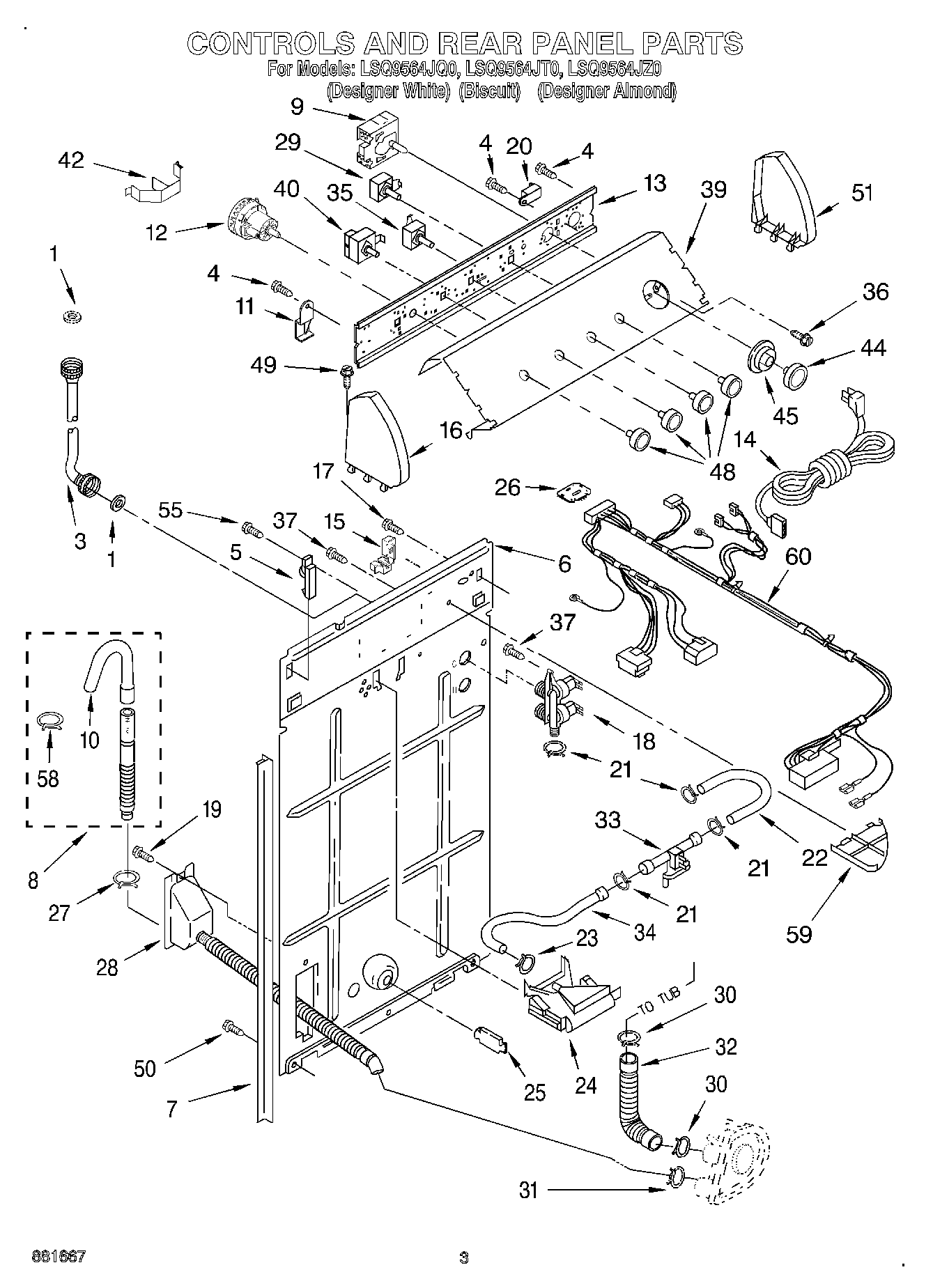

LSQ9564JZ0 02 – CONTROLS AND REAR PANEL

LSQ9564JZ0 02 – CONTROLS AND REAR PANEL

Written by

in

LSQ9564JZ0 02 – CONTROLS AND REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
3WP89503 Whirlpool Washer Fill Hose
4WP90767 Whirlpool Screw
5Hinge, Console (2)
6WP3357978 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285664 Whirlpool Drain Hose
8285702 Whirlpool Extensions
8285666 Whirlpool Drain Hose 10'
9WP3954071 Whirlpool Timer
10WP3357027 Whirlpool Nozzle Assembly
11Retainer, Harness
12W10337780 Whirlpool Pressure Switch
13WP3948608 Whirlpool Bracket
14W10820044 Whirlpool Power Cord
15Strain Relief, Power Cord
16Cap, End (L.H.) (BIscuit)
16Cap, End (L.H.) (Almond)
17WP3351614 Whirlpool Screw
18285805 Whirlpool Washer Water Inlet Valve
20WP694419 Whirlpool Buzzer Adjuster
21WP596669 Whirlpool Hose Clamp
22WP3357319 Whirlpool Hose
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WP8519200 Whirlpool Support Assembly
26E.T.C. Control
27WP356138 Whirlpool Hose Clamp
28WPW10358149 Whirlpool Hose
29WPW10168257 Whirlpool Cycle Switch
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Sensor-ETC-Inline
34WP3349365 Whirlpool Hose
35Switch, Cycle
36WP3400064 Whirlpool Screw
37WP9740848 Whirlpool Dishwasher Screw
39Panel, Console
39Panel, Console (Biscuit)
39Panel, Console (Almond)
40Switch, Water Temperature
42Clip, Harness & Pressure Hose
44WP3364293 Whirlpool Timer Knob
44Knob, Timer (Biscuit)
44Knob,
45Dial, Timer (Biscuit)
45Dial, Timer (A
45WP3957849 Whirlpool Timer Dial
483957797 Whirlpool Knob
48WP3957799 Whirlpool Knob
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51WPL 8271362
51W10820038 Whirlpool Endcap
51Cap, End (R.H.) (Almond)
55WP488729 Whirlpool Refrigerator Door Screw
58WP3357331 Whirlpool Clamp
59WPL 3348424
60WPL 3954387
