LSQ9620LW0 02 – CONTROLS AND REAR PANEL

LSQ9620LW0 02 – CONTROLS AND REAR PANEL

Written by

in

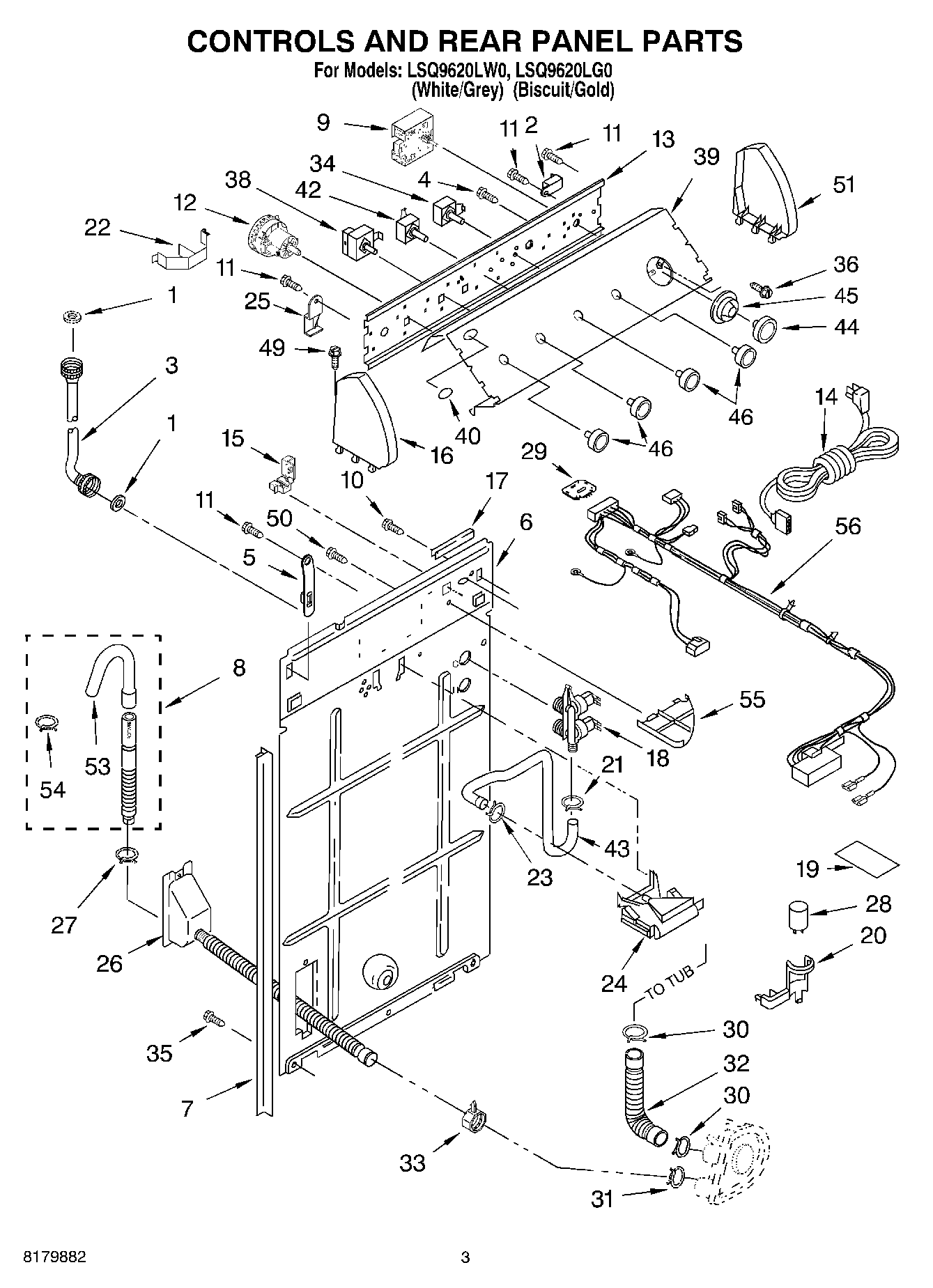

LSQ9620LW0 02 – CONTROLS AND REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP694419 Whirlpool Buzzer Adjuster
3WP89503 Whirlpool Washer Fill Hose
43400073 Whirlpool Screw
5WP8568314 Whirlpool Strap
6WP3357978 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285664 Whirlpool Drain Hose
8285666 Whirlpool Drain Hose 10'
8285702 Whirlpool Extensions
9WP3955765 Whirlpool Timer Assembly
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12W10337780 Whirlpool Pressure Switch
13WP3948608 Whirlpool Bracket
14W10820044 Whirlpool Power Cord
15Strain Relief, Power Cord
16Cap, End (L.H.) (BIscuit)
17Edge Protector
18WP3979346 Whirlpool Water Inlet Valve
19Shield, Capacitor
20Clip, Capacitor
21WP596669 Whirlpool Hose Clamp
22Clip, Harness & Pressure Hose
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25Retainer, Harness
26WPW10358149 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
28WP8572720 Whirlpool Capacitor
29E.T.C. Control
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Clamp, Hose
34Switch, Rotary
35WP3390631 Whirlpool Screw
36WP3400818 Whirlpool Screw
38W10168360 Whirlpool Temperature Switch
39Panel, Console (Gold (Includes No.40))
39Panel, Console (Grey (Includes No.40))
40Medallion
42W10168264 Whirlpool Cycle Switch
43HOSE
44Knob, Timer ((For LSQ9010LG0))
44WP8538949 Whirlpool Knob
45WPL 8538956
45WP8538955 Whirlpool Dial
46KNOB
46WPL 8538958
49WP388326 Whirlpool Screw
50WP9740848 Whirlpool Dishwasher Screw
51WPL 8271362
51W10820038 Whirlpool Endcap
53WP3357027 Whirlpool Nozzle Assembly
54WP3357331 Whirlpool Clamp
55WPL 3348424
56WPL 3956076
