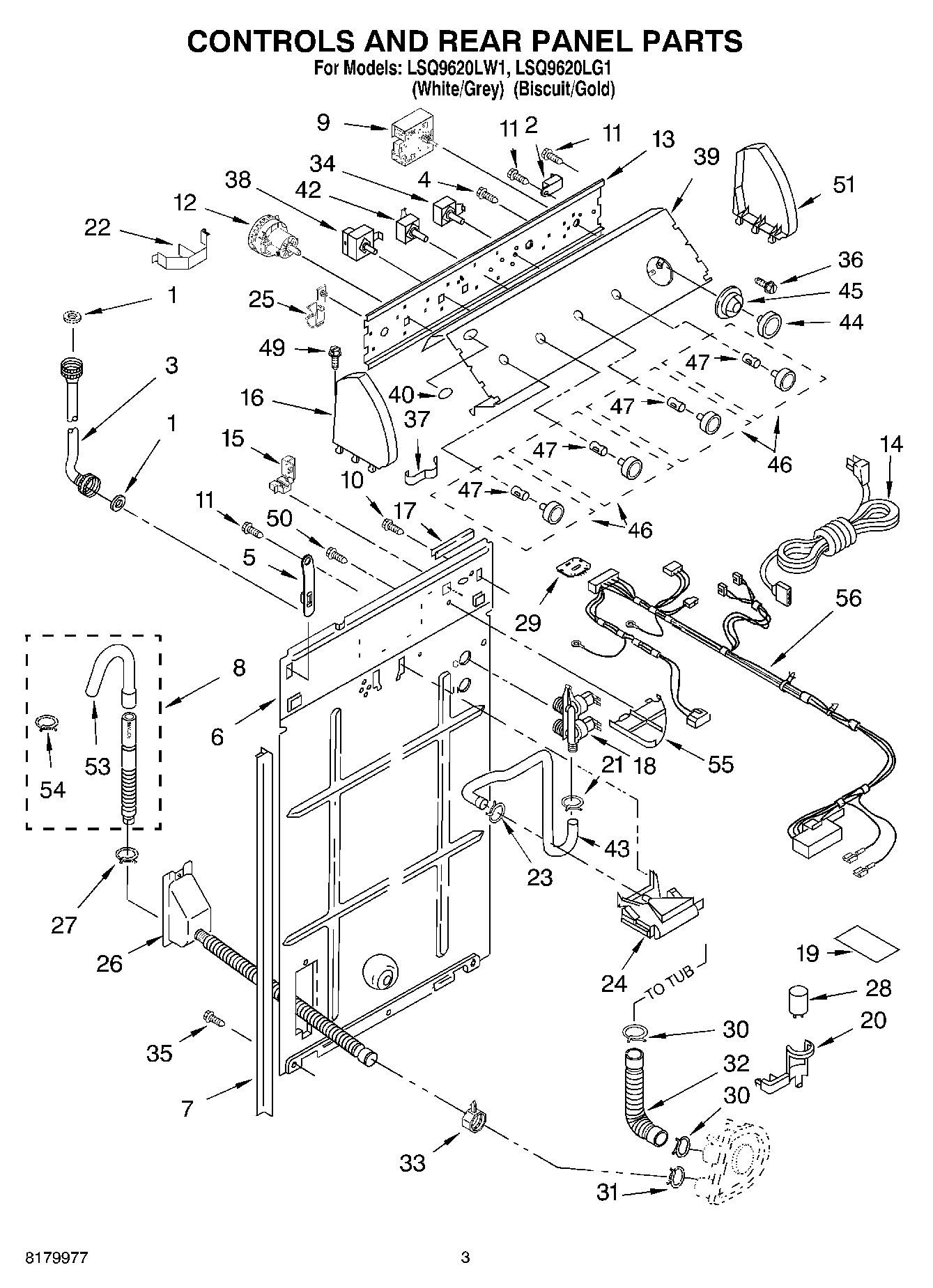

LSQ9620LW1 02 – CONTROLS AND REAR PANEL PARTS
Written by
in
LSQ9620LW1 02 – CONTROLS AND REAR PANEL PARTS
Products
Position
Product
1
WP16123 Whirlpool Washer
2
WP694419 Whirlpool Buzzer Adjuster
3
WP89503 Whirlpool Washer Fill Hose
4
3400073 Whirlpool Screw
5
WP8568314 Whirlpool Strap
6
WP3357978 Whirlpool Rear Panel
7
WP62747 Whirlpool Pad
8
285702 Whirlpool Extensions
8
285664 Whirlpool Drain Hose
8
285666 Whirlpool Drain Hose 10'
9
WP3955765 Whirlpool Timer Assembly
10
WP3351614 Whirlpool Screw
11
WP90767 Whirlpool Screw
12
W10337780 Whirlpool Pressure Switch
13
WP3948608 Whirlpool Bracket
14
Cord, Power (Includes Illus. 15)
15
Strain Relief, Power Cord
16
Cap, End (L.H.) (BIscuit)
17
Edge Protector
18
WP3979346 Whirlpool Water Inlet Valve
19
Shield, Capacitor
20
Clip, Capacitor
21
WP596669 Whirlpool Hose Clamp
22
Clip, Harness & Pressure Hose
24
WP3360977 Whirlpool Washer Tub Fill Nozzle
25
Retainer, Harness
26
WPW10358149 Whirlpool Hose
27
WP356138 Whirlpool Hose Clamp
28
WP8572720 Whirlpool Capacitor
29
Control, ATC
30
WP616099 Whirlpool Clamp
31
WP285655 Whirlpool Hose Clamp
32
285871 Whirlpool Hose and Clamp
33
Clamp, Hose
34
Switch, Rotary
35
WP3390631 Whirlpool Screw
36
WP3400818 Whirlpool Screw
37
8528351 Whirlpool Clip
38
W10168360 Whirlpool Temperature Switch
39
Panel, Console (Gold (Includes No.40))
39
Panel, Console (Grey (Includes No.40))
40
Medallion
42
W10168264 Whirlpool Cycle Switch
43
HOSE
44
WP8538949 Whirlpool Knob
44
Knob, Timer ((For LSQ9010LG0))
45
WP8538955 Whirlpool Dial
45
WPL 8538956
46
KNOB
46
WPL 8538958
47
WP8536939 Whirlpool Spring Clip
49
WP388326 Whirlpool Screw
50
WP9740848 Whirlpool Dishwasher Screw
51
W10820038 Whirlpool Endcap
51
WPL 8271362
53
WP3357027 Whirlpool Nozzle Assembly
54
WP3357331 Whirlpool Clamp
55
WPL 3348424
56
WPL 3956277
←
