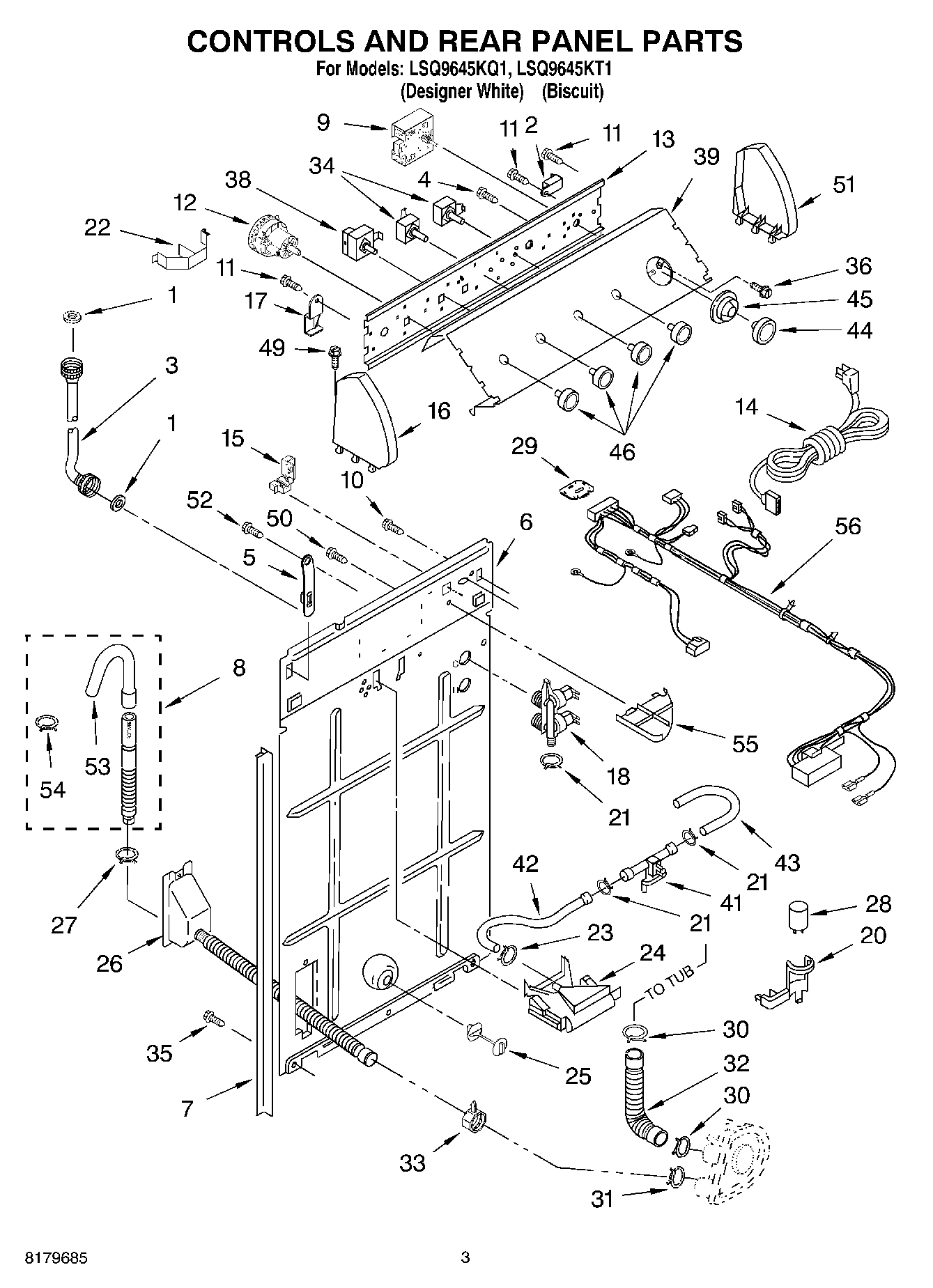

LSQ9645KQ1 02 – CONTROLS AND REAR PANEL

LSQ9645KQ1 02 – CONTROLS AND REAR PANEL

Written by

in

LSQ9645KQ1 02 – CONTROLS AND REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP694419 Whirlpool Buzzer Adjuster
3WP89503 Whirlpool Washer Fill Hose
43400073 Whirlpool Screw
5WP8568314 Whirlpool Strap
6WP3357978 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285702 Whirlpool Extensions
8285664 Whirlpool Drain Hose
8285666 Whirlpool Drain Hose 10'
9WP3954071 Whirlpool Timer
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12W10335056 Whirlpool Water Level Pressure Switch
13WP3948608 Whirlpool Bracket
14W10820044 Whirlpool Power Cord
15Strain Relief, Power Cord
16Cap, End (L.H.) (BIscuit)
17Retainer, Harness
18285805 Whirlpool Washer Water Inlet Valve
20Clip, Capacitor
21WP596669 Whirlpool Hose Clamp
22Clip, Harness & Pressure Hose
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WP8519200 Whirlpool Support Assembly
26WPW10358149 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
28WP8572720 Whirlpool Capacitor
29E.T.C. Control
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Clamp, Hose
34WPW10168257 Whirlpool Cycle Switch
35WP3390631 Whirlpool Screw
36WP3400064 Whirlpool Screw
38Switch, Temperature
39Panel, Console (White)
39Panel, Console (Biscuit)
41Sensor-ETC-Inline
42WP3349365 Whirlpool Hose
43WP3357319 Whirlpool Hose
44WP3364293 Whirlpool Timer Knob
44Knob, Timer (Biscuit)
45WP3957849 Whirlpool Timer Dial
45Dial, Timer (Biscuit)
463957797 Whirlpool Knob
46WP3957799 Whirlpool Knob
49WP388326 Whirlpool Screw
50WP9740848 Whirlpool Dishwasher Screw
51WPL 8271362
51W10820038 Whirlpool Endcap
52WP488729 Whirlpool Refrigerator Door Screw
53WP3357027 Whirlpool Nozzle Assembly
54WP3357331 Whirlpool Clamp
55WPL 3348424
56WPL 3955723
