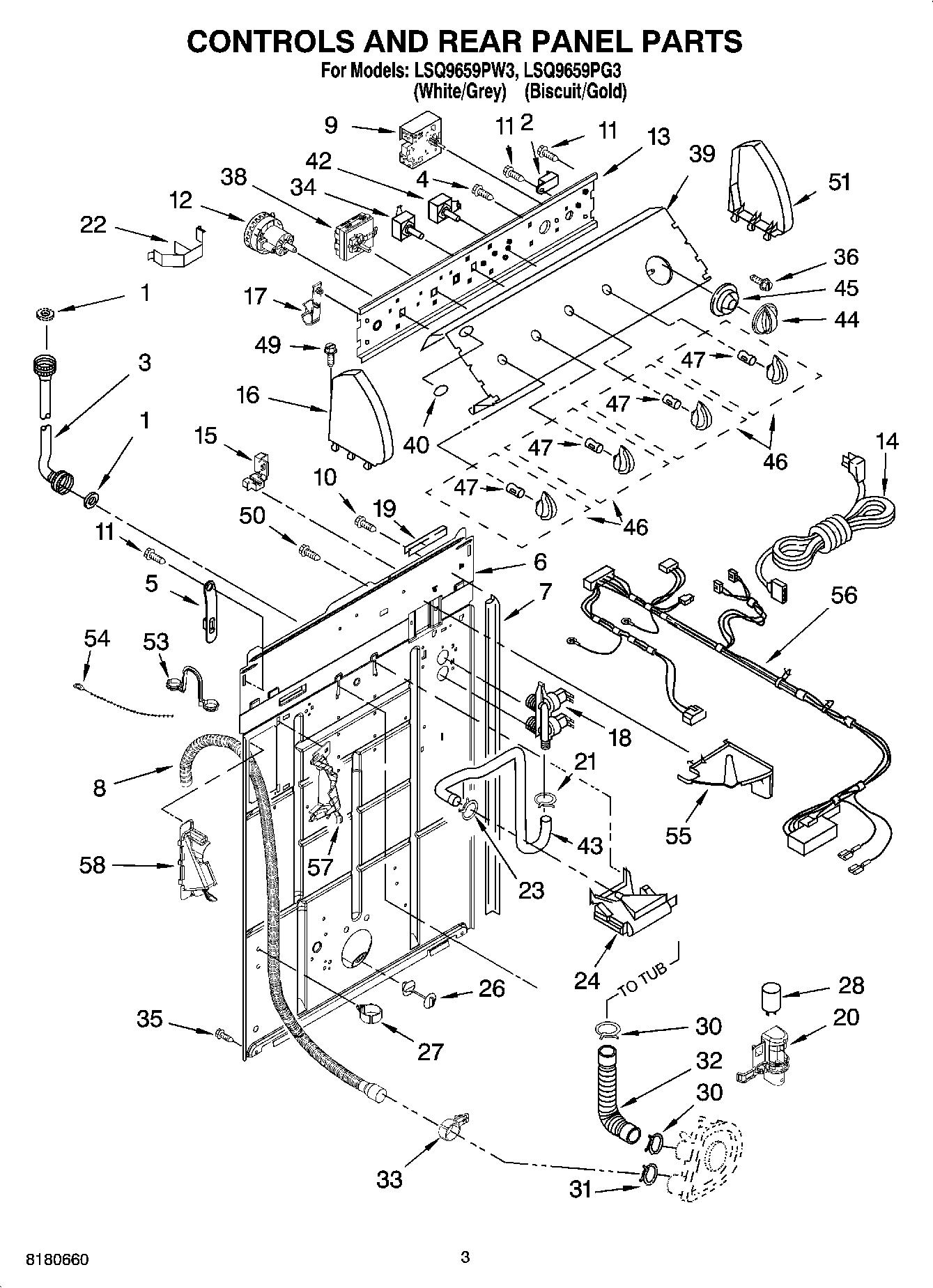

LSQ9659PG3 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP694419 Whirlpool Buzzer Adjuster
3	FILL HOSE 5' W/WASHER
3	WP89503 Whirlpool Washer Fill Hose
4	3400073 Whirlpool Screw
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	WP3955765 Whirlpool Timer Assembly
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10339326 Whirlpool Washer Water Level Switch
13	Bracket, Control
14	Cord, Power (Includes Illus. 15)
15	Strain Relief, Power Cord
16	Cap, End (L.H.) (BIscuit)
17	Retainer, Harness
18	WP3979346 Whirlpool Water Inlet Valve
19	Edge Protector
20	Clip, Capacitor
21	WP596669 Whirlpool Hose Clamp
22	Clip, Harness & Pressure Hose
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
26	WP8519200 Whirlpool Support Assembly
27	Clamp, Hose
28	WP8572720 Whirlpool Capacitor
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	8541668 Whirlpool Washer Clamp
34	W10168264 Whirlpool Cycle Switch
35	WP3390631 Whirlpool Screw
36	WP3400818 Whirlpool Screw
38	WP8564139 Whirlpool Temperature Switch
39	Panel, Console (Includes Item 40) (Gold)
39	Panel, Console (Includes Item 40) (Silver)
40	WPL 3400985
42	Switch, Rotary
43	HOSE
44	WPL 8544946
44	Kn
45	WP8544947 Whirlpool Dial
45	Dial, Timer (Biscuit)
46	WPL 8544937
46	WPL 8544938
47	WP8536939 Whirlpool Spring Clip
49	WP388326 Whirlpool Screw
50	WP9740848 Whirlpool Dishwasher Screw
51	WPL 8271362
51	W10820038 Whirlpool Endcap
53	WP8577378 Whirlpool Retainer
54	WPW10339879 Whirlpool Wire Tie
55	WPL 8539874
56	WPL 3957277
57	WPL ARI158284A
58	WPW10096921 Whirlpool Hose
58	WPL ARI158285A
