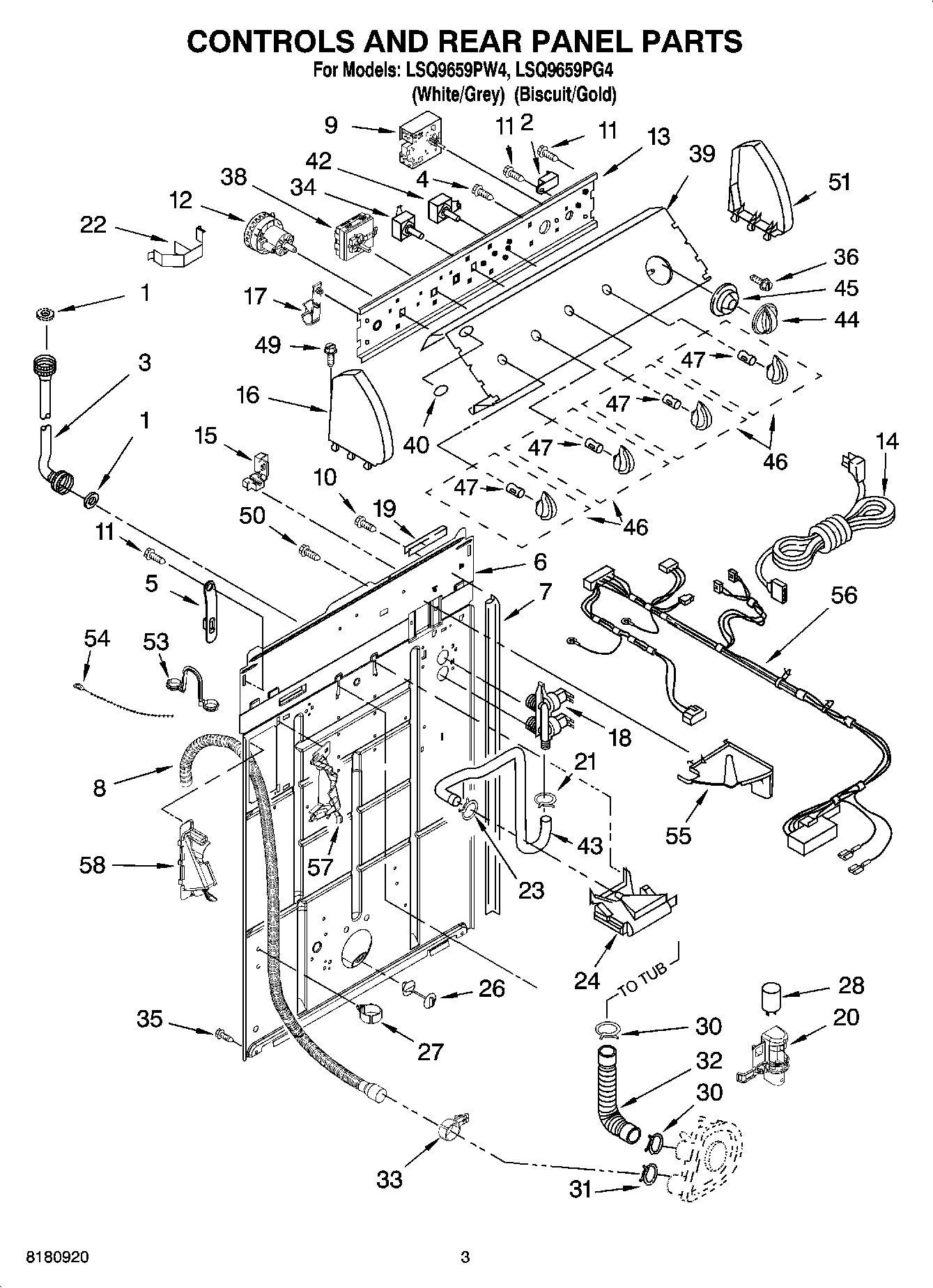

LSQ9659PW4 02 – CONTROLS AND REAR PANEL PARTS

LSQ9659PW4 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

LSQ9659PW4 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP694419 Whirlpool Buzzer Adjuster
3WP89503 Whirlpool Washer Fill Hose
3FILL HOSE 5' W/WASHER
43400073 Whirlpool Screw
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
9WP3955765 Whirlpool Timer Assembly
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12W10339326 Whirlpool Washer Water Level Switch
13Bracket, Control
14Cord, Power (Includes Illus. 15)
15Strain Relief, Power Cord
16Cap, End (L.H.) (BIscuit)
17Retainer, Harness
18WP3979346 Whirlpool Water Inlet Valve
19Edge Protector
20Clip, Capacitor
21WP596669 Whirlpool Hose Clamp
22Clip, Harness & Pressure Hose
24WP3360977 Whirlpool Washer Tub Fill Nozzle
26WP8519200 Whirlpool Support Assembly
27Clamp, Hose
28WP8572720 Whirlpool Capacitor
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
338541668 Whirlpool Washer Clamp
34W10168264 Whirlpool Cycle Switch
35WP3390631 Whirlpool Screw
36WP3400818 Whirlpool Screw
38WP8564139 Whirlpool Temperature Switch
39Panel, Console (Includes Item 40) (Silver)
39Panel, Console (Includes Item 40) (Gold)
40WPL 3400985
42Switch, Rotary
43HOSE
44Kn
44WPL 8544946
45WP8544947 Whirlpool Dial
45Dial, Timer (Biscuit)
46WPL 8544938
46WPL 8544937
47WP8536939 Whirlpool Spring Clip
49WP388326 Whirlpool Screw
50WP9740848 Whirlpool Dishwasher Screw
51W10820038 Whirlpool Endcap
51WPL 8271362
53WP8577378 Whirlpool Retainer
54WPW10339879 Whirlpool Wire Tie
55WPL 8539874
56WPL 3957277
57WPL ARI158327A
58WPL ARI158328A
58Miscellaneous Parts Bag
58WPW10096921 Whirlpool Hose
58WPL ARI158329A
