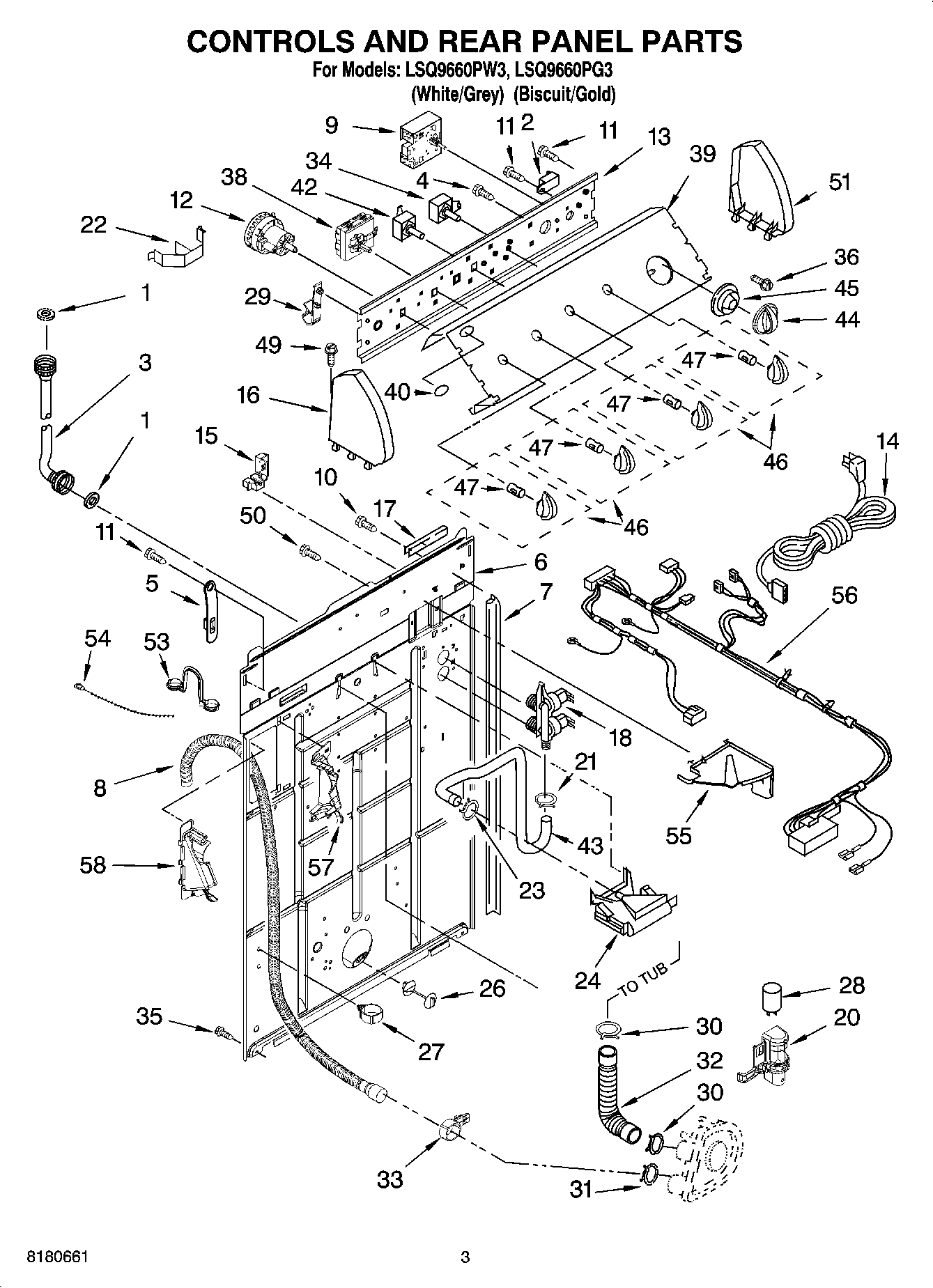

LSQ9660PW3 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP694419 Whirlpool Buzzer Adjuster
3	WP89503 Whirlpool Washer Fill Hose
3	FILL HOSE 5' W/WASHER
4	3400073 Whirlpool Screw
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	WP8541270 Whirlpool Timer
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10339326 Whirlpool Washer Water Level Switch
13	Bracket, Control
14	Cord, Power (Includes Illus. 15)
15	Strain Relief, Power Cord
16	Cap, End (L.H.) (BIscuit)
17	Edge Protector
18	WP3979346 Whirlpool Water Inlet Valve
20	Clip, Capacitor
21	WP596669 Whirlpool Hose Clamp
22	Clip, Harness & Pressure Hose
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
26	WP8519200 Whirlpool Support Assembly
27	Clamp, Hose
28	WP8572720 Whirlpool Capacitor
29	Retainer, Harness
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	8541668 Whirlpool Washer Clamp
34	W10851055 Whirlpool Cycle Switch
35	WP3390631 Whirlpool Screw
36	WP3400818 Whirlpool Screw
38	Switch, Water Temperature (ATC)
39	Panel, Console (Includes Item 40) (Silver)
39	Panel, Console (Includes Item 40) (Gold)
40	WPL 3400985
42	WPW10168257 Whirlpool Cycle Switch
43	HOSE
44	WPL 8544946
44	Kn
45	Dial, Timer (Biscuit)
45	WP8544947 Whirlpool Dial
46	WPL 8544937
46	WPL 8544938
47	WP8536939 Whirlpool Spring Clip
49	WP388326 Whirlpool Screw
50	WP9740848 Whirlpool Dishwasher Screw
51	W10820038 Whirlpool Endcap
51	WPL 8271362
53	WP8577378 Whirlpool Retainer
54	WPW10339879 Whirlpool Wire Tie
55	WPL 8539874
56	WPL 3957276
57	WPL ARI158389A
58	WPW10096921 Whirlpool Hose
58	WPL ARI158390A
