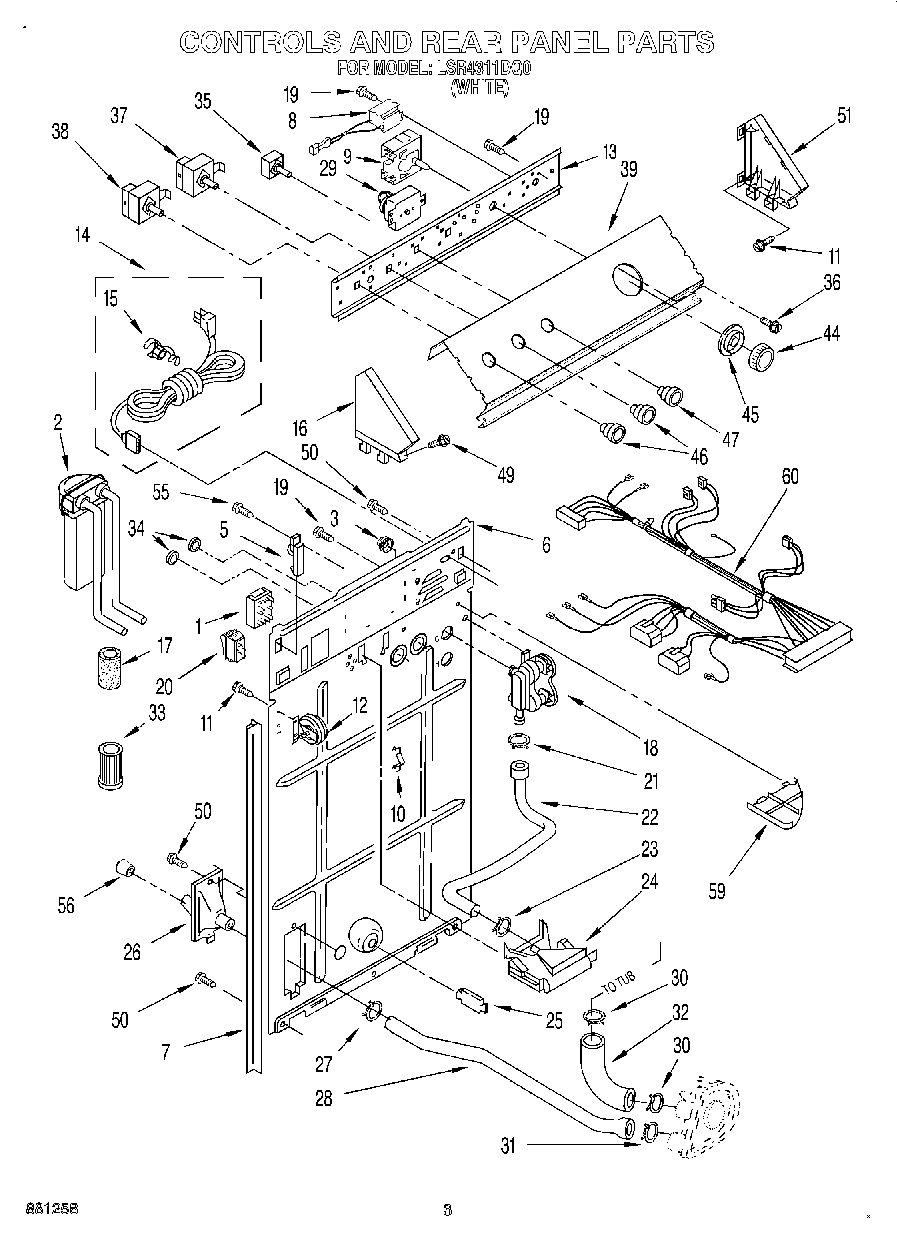

LSR4311DQ0 02 – CONTROLS AND REAR PANEL

Products

Position	Product
1	Switch, Rotary
2	Filter, Assembly
3	WP356054 Whirlpool Cap Assembly
4	WP3357027 Whirlpool Nozzle Assembly
5	Hinge, Console (2)
6	Panel, Rear (Includes Grommets)
7	WP62747 Whirlpool Pad
8	Ballast
9	Timer, Control (60 Hz.) (Motor Not A Service Part)
10	Retainer, Hose
11	WP90767 Whirlpool Screw
12	Switch, Water Level
13	Bracket, Control
14	W10820044 Whirlpool Power Cord
15	Strain Relief, Power Cord
16	Cap, End (L.H.)
17	Foam Sleeve
18	285805 Whirlpool Washer Water Inlet Valve
19	WP3351614 Whirlpool Screw
20	Switch-Rocker
21	WP596669 Whirlpool Hose Clamp
22	Hose, Vacuum Break
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	WP8519200 Whirlpool Support Assembly
26	WPW10358149 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
28	Hose, Pump To Drain
29	Timer (Hand-Wash Cycle)
30	WP371502 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	Hose, Pump To Tub
33	Water Polishing Cartridge
34	Grommet (2)
35	WP3395382 Whirlpool Push To Start Switch
36	WP356418 Whirlpool Screw
37	Switch, Rotary
38	Switch, Rotary
39	Panel, Console
44	WP3364293 Whirlpool Timer Knob
45	Dial, Timer (For Designer White Model)
46	WP3957800 Whirlpool Knob
47	WP3957796 Whirlpool Knob
49	Insulation Retainer
50	WP3390631 Whirlpool Screw
51	Cap, End (R.H.)
55	WP308685 Whirlpool Microwave Screw
56	Plug-Drain
59	WPL 3348424
60	Harness, Wiring (For Detail See Wiring Harness Parts Page.) Also See Clips.
